VIIP V18017FS Toroidal Ferrite Core 1600 Initial Permeability 18.9mm ID 1‑500MHz EMI Noise Suppression Ring for Common‑Mode Choke Prototype Development

Brand Name: Weiaipu
Model Number: V18017FS
MOQ: 240PCS
Price: USD2.12
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Product Namee:
Clip On Ferrite Core
Package Type:
Carton
Mountingstyle:
Snap-on/Clip-on
Productname:
Clip On Ferrite Core
Type:
Clip On
Highlight:

toroidal ferrite core 1600 permeability

,

ferrite core EMI noise suppression

,

common-mode choke prototype ferrite ring

Product Description
VIIP V18017FS Toroidal Ferrite Core

VIIP V18017FS Grey Soft Toroidal Ferrite Core 360MT EMI Noise Suppression Ring for Industrial Filter Coils. Designed for power filter and common-mode choke winding, this toroidal ferrite core provides effective EMI and RFI noise suppression for high-frequency circuits.

Product Overview

The VIIP V18017FS grey toroidal ferrite core adopts high-performance nickel-zinc soft ferrite material with 52.6 mm outer diameter and 15.5 mm thickness. It delivers minimum impedance of 50Ω@25MHz and 110Ω@100MHz for EMI & RFI noise suppression across the 1-500 MHz frequency range. This wound-type toroidal core is widely used for winding common-mode chokes and EMI filter inductors. RoHS and REACH compliant, it serves IT-AV equipment, industrial control and consumer-electronic EMC debugging.

Product Description

Manufactured by VIIP with premium grade nickel-zinc ferrite material featuring initial permeability of 1600, the V18017FS grey toroidal ferrite core effectively suppresses high-frequency EMI and RFI noise. It helps finished inductors and filters achieve stable filtering performance and assists equipment to pass EMC compliance tests. High saturation magnetic flux density of 360MT avoids magnetic saturation-caused performance drop under complex working conditions.

Key Features
  • 52.6 mm outer diameter, 15.5 mm thickness, toroidal wound-type for common-mode choke & EMI filter winding

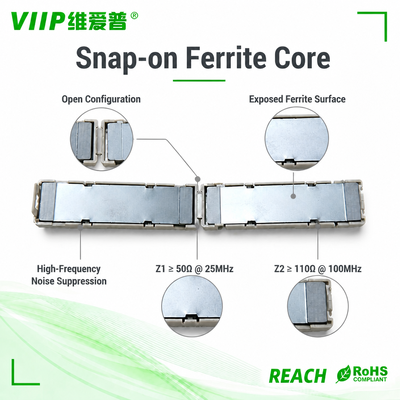

  • Electrical performance: Minimum 50Ω impedance @25MHz, minimum 110Ω impedance @100MHz, test range 1-500 MHz
  • Material property: 1600 initial permeability, 360MT saturation magnetic flux density, Curie temperature above 105℃
  • Strict appearance defect inspection, tight dimension tolerance, stable batch consistency for mass-production filters
  • RoHS & REACH compliant, approval sheet Rev4.0 available for customer project review and type-test
  • Tested by E4991A+16194A professional impedance analyzer; impedance-frequency curve can be provided
Specifications
Model V18017FS
Material Nickel-Zinc Soft Ferrite (Grey)
Initial Permeability 1600
Outer Diameter 52.6 mm
Thickness 15.5 mm
Saturation Magnetic Flux 360MT
Curie Temperature ＞105℃
Compliance RoHS, REACH
Applications
  • IT-AV electronic equipment
  • Power filter & common-mode choke assembly
  • Industrial control electronic devices
  • Consumer-electronic EMC noise debugging
  • High-frequency interference suppression for signal & power circuits
Product Images

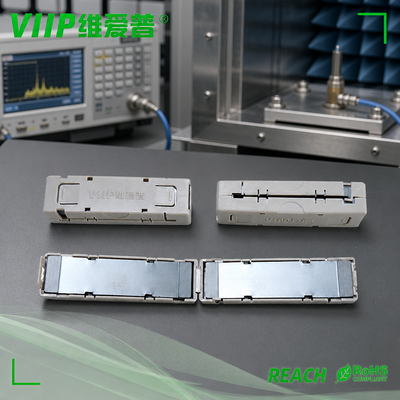

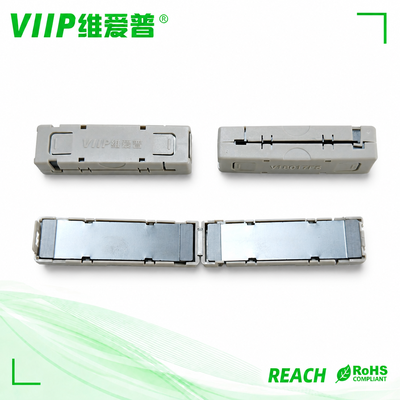

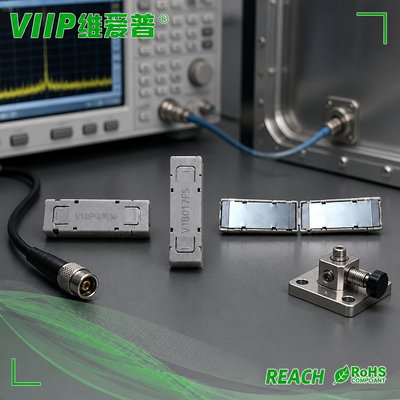

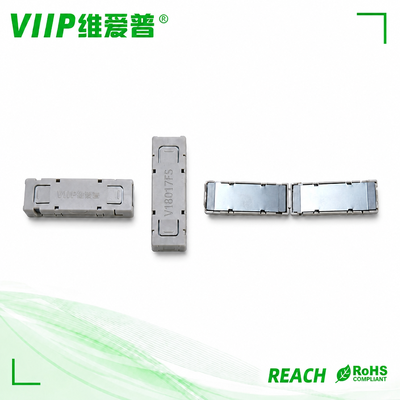

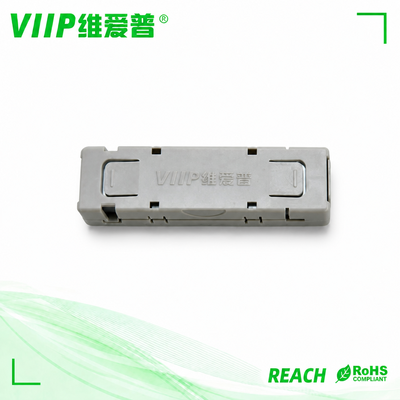

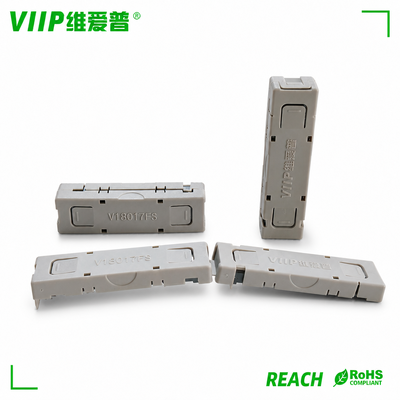

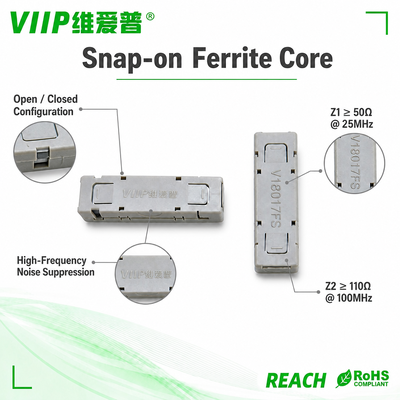

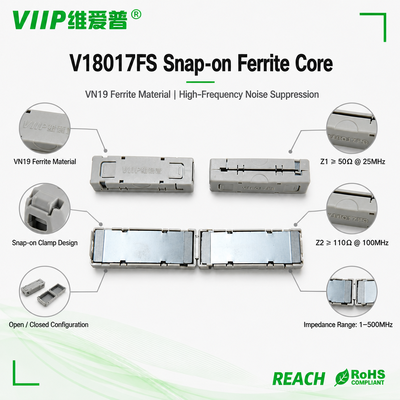

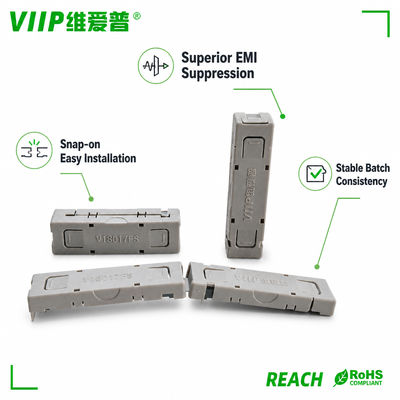

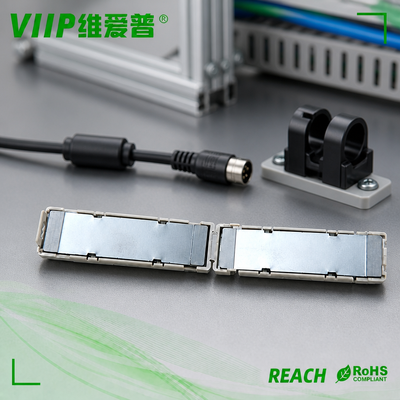

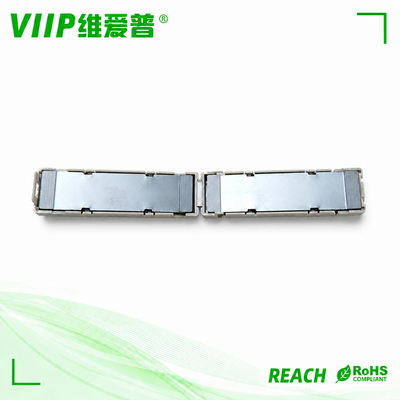

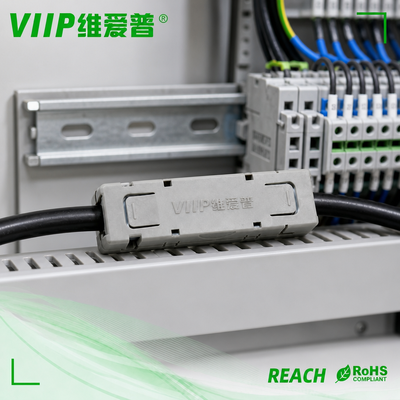

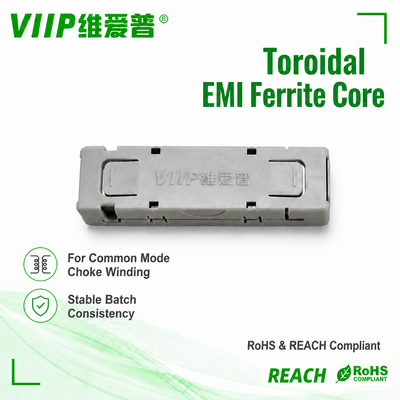

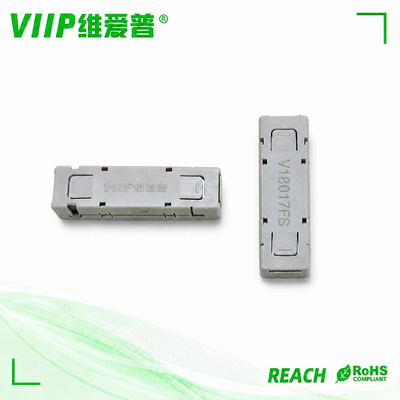

VIIP V18017FS Grey Toroidal Ferrite Core front view VIIP V18017FS Grey Toroidal Ferrite Core side view VIIP V18017FS Grey Toroidal Ferrite Core technical diagram VIIP V18017FS Grey Toroidal Ferrite Core application example VIIP V18017FS Grey Toroidal Ferrite Core VIIP V18017FS Grey Toroidal Ferrite Core VIIP V18017FS Grey Toroidal Ferrite Core
Frequently Asked Questions
Can I get free samples for ferrite rings and clamps?
Yes, we can provide free samples for our ferrite rings and clamps.
What is your regular order requirement for ferrite rings & clamps?
Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.
Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?
Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.
What certificates do your ferrite cores and clamp-on ferrites have? Can you provide approval sheets?
Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.
What is the typical production lead-time for ferrite and clamp-on ferrite mass orders?
Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.
Can you customize impedance/size for ferrite cores and clamp-on ferrites?
Custom service is available upon your technical requirement, MOQ for customized items will apply.
Are clamp-on ferrite rings reusable after installation?
Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
Tags:

Nizn Emi Cable Ferrite Cores

Clip On Ferrite Core Rohs Reach

Black Nizn Emi Suppression Core
