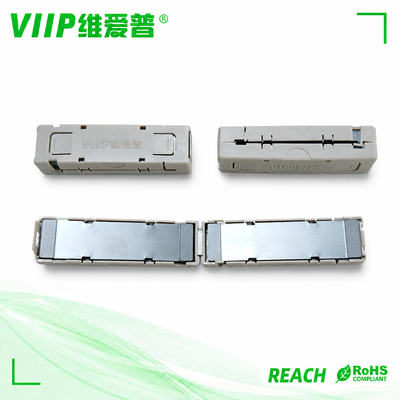

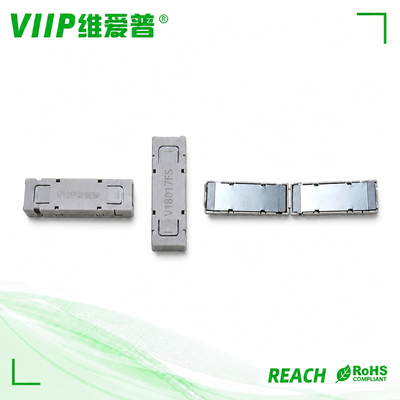

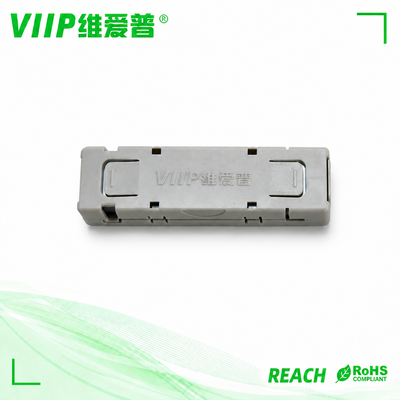

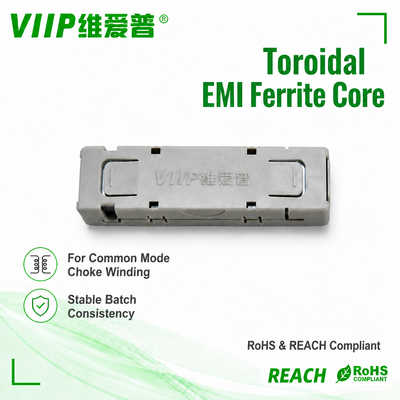

VIIP Factory V18017FS Grey Toroidal Ferrite Core 18.9mm OD Anti‑Interference Ferrite Ring. Designed for power filter and common‑mode choke winding, the VIIP V18017FS toroidal ferrite core provides effective EMI and RFI noise suppression for high‑frequency circuits.

The VIIP V18017FS grey toroidal ferrite core adopts high‑performance nickel‑zinc soft ferrite material with 52.6 mm outer diameter and 15.5 mm thickness. It delivers minimum impedance of 50Ω@25MHz and 110Ω@100MHz for EMI & RFI noise suppression across the 1‑500 MHz frequency range. This wound‑type toroidal core is widely used for winding common‑mode chokes and EMI filter inductors. RoHS and REACH compliant, it serves IT‑AV equipment, industrial control and consumer‑electronic EMC debugging. Free samples are available for evaluation.

Manufactured by VIIP with premium grade nickel‑zinc ferrite material featuring initial permeability of 1600, the V18017FS grey toroidal ferrite core effectively suppresses high‑frequency EMI and RFI noise. It helps finished inductors and filters achieve stable filtering performance and assists equipment to pass EMC compliance tests. High saturation magnetic flux density of 360MT avoids magnetic saturation‑caused performance drop under complex working conditions.

• 52.6 mm outer diameter, 15.5 mm thickness, toroidal wound‑type for common‑mode choke & EMI filter winding

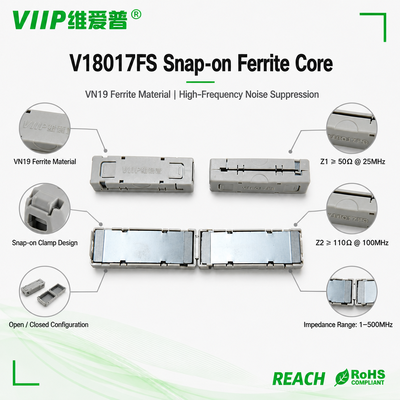

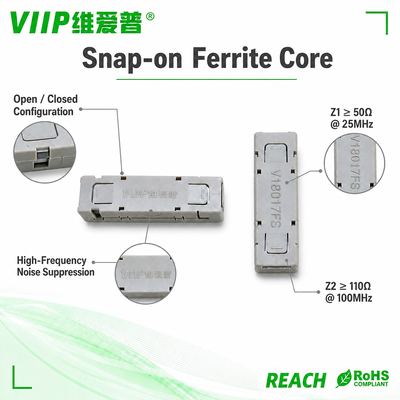

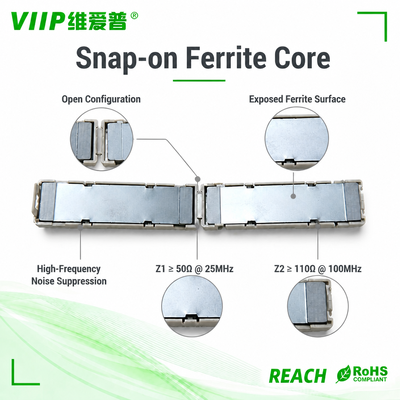

• Electrical performance: Minimum 50Ω impedance @25MHz, minimum 110Ω impedance @100MHz, test range 1‑500 MHz
• Material property: 1600 initial permeability, 360MT saturation magnetic flux density, Curie temperature above 105℃
• Strict appearance defect inspection, tight dimension tolerance, stable batch consistency for mass‑production filters
• RoHS & REACH compliant, approval sheet Rev4.0 available for customer project review and type‑test

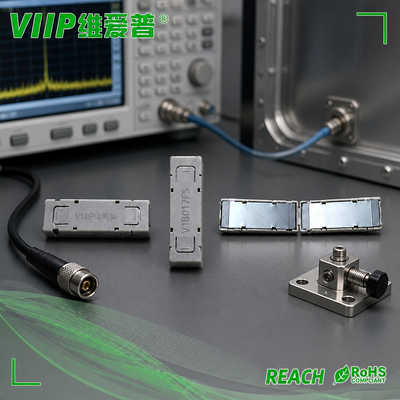

• Tested by E4991A+16194A professional impedance analyzer; impedance‑frequency curve can be provided

• IT‑AV electronic equipment
• Power filter & common‑mode choke assembly

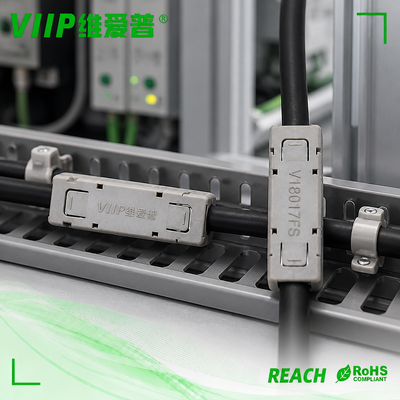

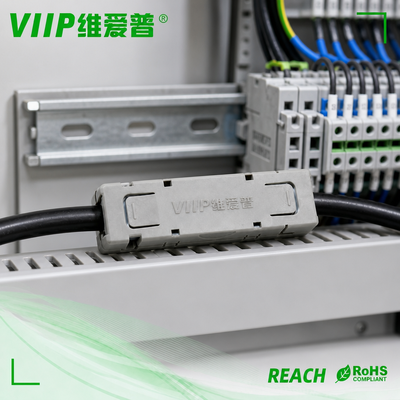

• Industrial control electronic devices
• Consumer‑electronic EMC noise debugging
• High‑frequency interference suppression for signal & power circuits

Yes, we can provide free samples for our ferrite rings and clamps.

Normally orders shall follow our minimum package quantity. Exceptions are acceptable for your first trial order.

Free samples are for performance verification only. Except for your first order, formal repeat orders need to follow our minimum package quantity requirement.

Our ferrite & clamp-on ferrite comply with RoHS and REACH. We can provide PDF approval sheets (specification document) for your project review.

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed prior to placing a formal order.

Custom service is available upon your technical requirement, MOQ for customized items will apply.

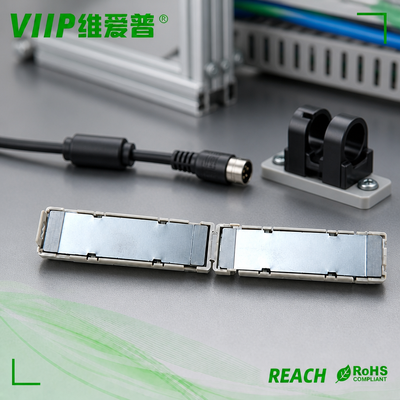

Yes, the snap-on design allows for easy removal and reinstallation, making them reusable.
