| Brand Name: | Weiaipu |
| Model Number: | VIP4-1B-20 (B041T1252) |
| MOQ: | 64PCS |
| Price: | USD10-15 |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

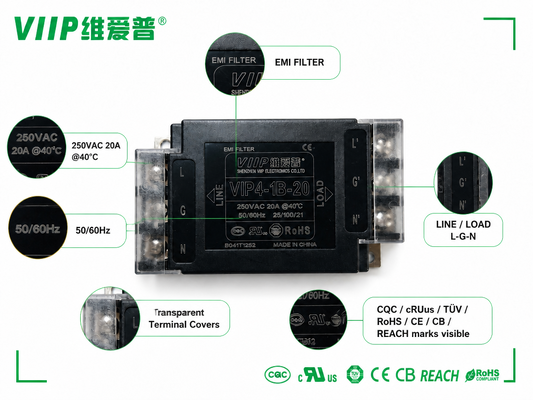

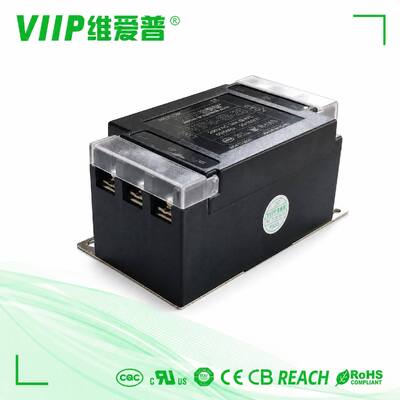

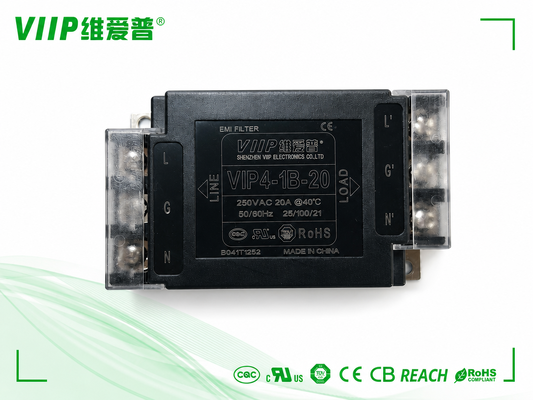

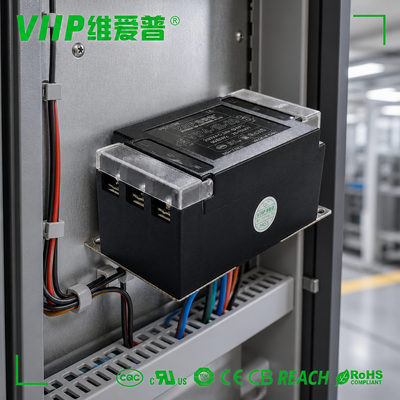

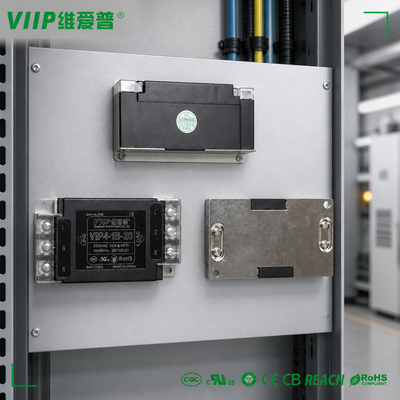

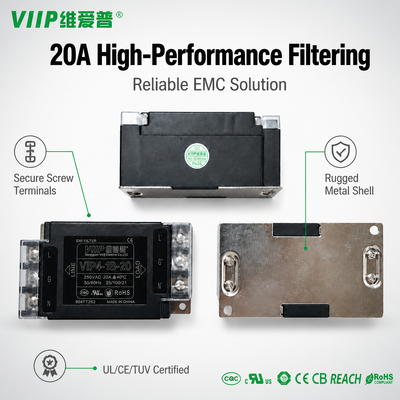

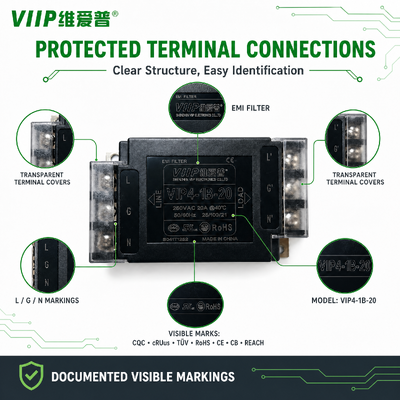

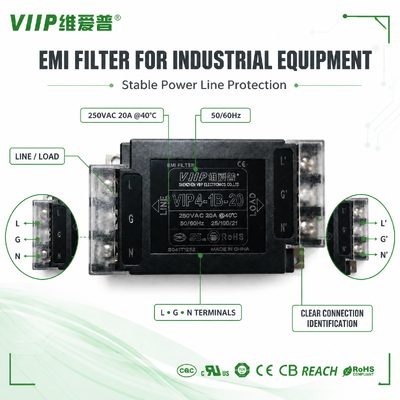

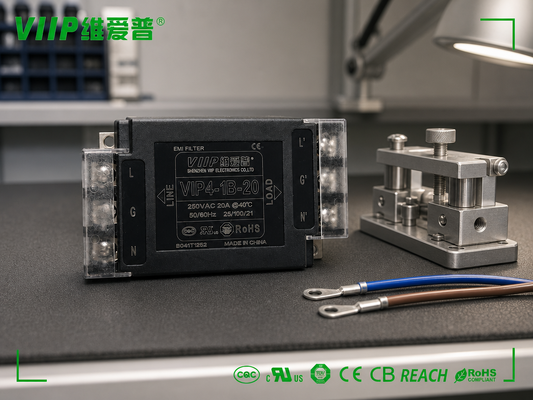

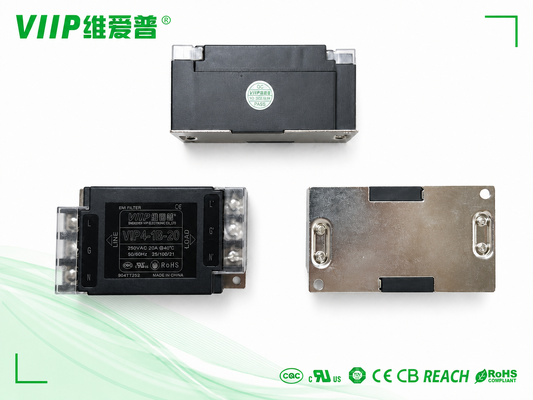

VIP4‑1B‑20 is a high‑current single‑phase AC EMI power filter manufactured by Shenzhen VIIP Electronics Co., Ltd, internal factory code B041T1252, part number 804002000200040. It adopts screw‑type terminal‑block connection and integrates complete circuit consisting of common‑mode inductor, X‑capacitor, Y‑capacitor and discharge resistor.

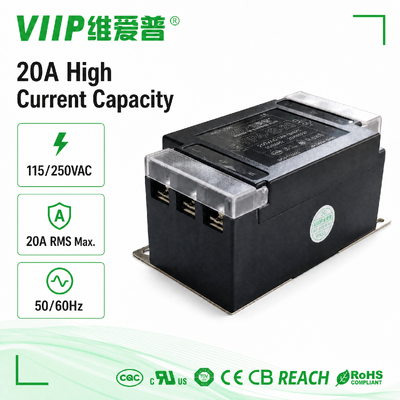

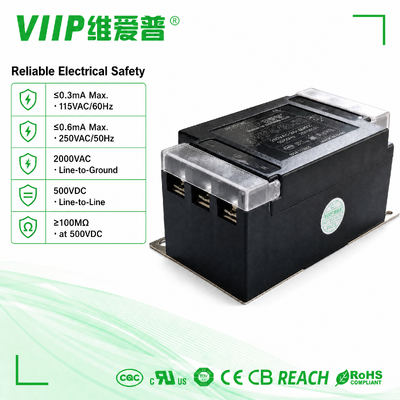

Rated for 115/250VAC and maximum 20A RMS operating current for 50/60Hz mains power, this chassis‑mount filter is built to suppress common‑mode conducted noise on AC input lines. It features well‑controlled leakage‑current figures, high insulation resistance and passes one‑minute hipot safety test, supporting stable operation within ‑25 °C ~ +100 °C. CE, RoHS and REACH compliant, this terminal‑block EMI filter is engineered for high‑power cabinet‑type equipment where reliable screw‑termination wiring is preferred.

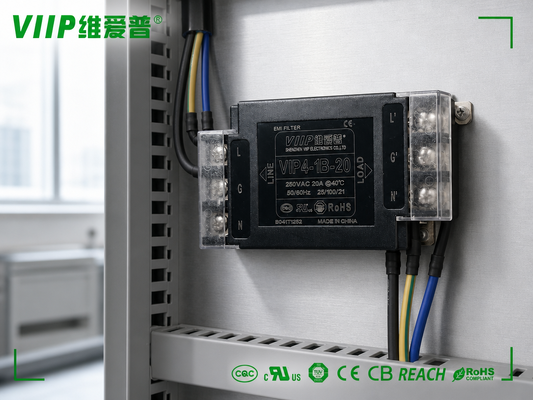

VIP4‑1B‑20 terminal‑block EMI filter suppresses AC‑line conducted EMI for a wide range of high‑power cabinet‑housed electronic devices:
| Parameter | Specification |
|---|---|
| Voltage Rating | 115/250 VAC |
| Current Rating at 115VAC | 20A RMS Max. |
| Current Rating at 250VAC | 20A RMS Max. |
| Operating Frequency | 50/60 Hz |
| Leakage Current @115VAC/60Hz | 0.3 mA Max. |
| Leakage Current @250VAC/50Hz | 0.6 mA Max. |
| Hi-pot Rating | For One Minute |
| Insulation Resistance (IR) | ≥100MΩ @500VDC |
| Temperature Range | -25°C ~ +100°C |
| Mode | 0.15 MHz | 0.5 MHz | 1 MHz | 10 MHz | 30 MHz |
|---|---|---|---|---|---|
| COM.MODE | 19 | 29 | 47 | 67 | 35 |
| DIFF.MODE | 58 | 73 | 67 |
