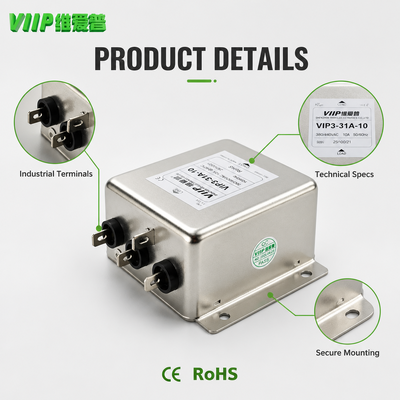

VIIP VIP3‑31A‑10(B031Q0946) 3 Phase Insert Type EMI Power Filter RFI Suppression Filter for Servo Drive CE RoHS Certified

Brand Name:	Weiaipu VIIP
Model Number:	VIP3-31A-10 (B031Q0946)
MOQ:	40
Price:	10USD
Packaging Details:	neutral
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE RoHS

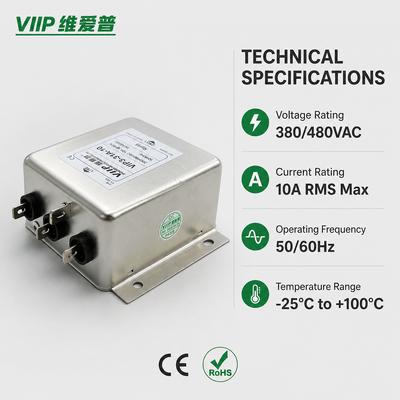

Voltage Rating:

380/480VAC

Current Rating:

10A RMS Max

OperatingFrequency:

50/60Hz

Line To Ground:

2000 VAC

Line To Line:

500 VD

Temperature Range:

-25°C~+100°C

Supply Ability:

30K/MONTH

Highlight:

3 phase EMI power filter

servo drive RFI suppression filter

CE RoHS certified EMI filter

Product Description

Product Introduction

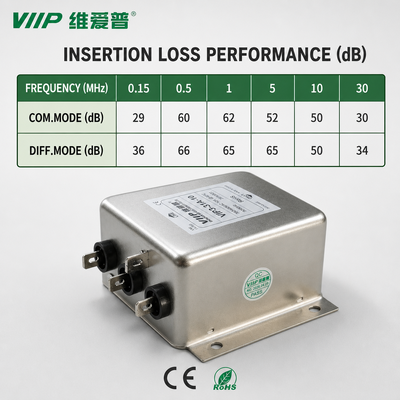

VIP3‑31A‑10 is a three‑phase insert‑mount EMI power filter designed for 380/480 VAC industrial power supply systems. Rated at 10A RMS, it operates at 50/60 Hz and delivers reliable suppression of conducted common‑mode and differential‑mode electromagnetic interference on power lines. Built to withstand strict high‑voltage insulation tests, this filter features low leakage current, wide working temperature range from ‑25 °C to +100 °C, and stable insertion‑loss performance under 50‑ohm test system. With compact insert‑type structure, it helps industrial devices meet EMC requirements, avoid equipment misoperation triggered by power‑grid noise and improve overall power‑supply stability.

Purpose

This EMI filter is mainly used to suppress high‑frequency conducted interference transmitted along three‑phase AC power cables. It blocks external grid noise from entering sensitive loads and prevents noise generated by switching equipment from feeding back into the mains power network. It reduces electromagnetic disturbance, protects downstream precision electrical components, and assists complete machines to pass EMC compliance tests.

Application Scope

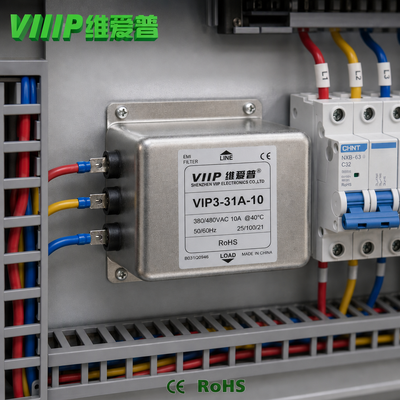

Suitable for various 3‑phase industrial electrical equipment working under 380/480VAC power grid, including servo drive systems, frequency converters, motor control units, industrial automation control cabinets, PLC‑based production equipment and other industrial power‑driven devices. Widely adopted in factory automation production lines, mechanical processing equipment and other industrial occasions requiring power‑line noise filtering and EMC optimization.

FAQ 1

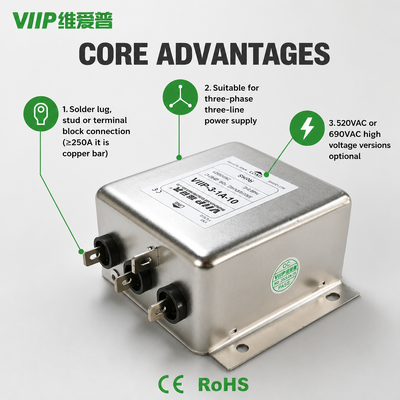

Q:What is the advantage of insert‑mount type three‑phase filter compared with other installation styles?

A: The insert‑mount structure allows the filter to be embedded directly into the cabinet panel. It saves internal cabinet space, shortens wiring length, simplifies system layout and improves assembly efficiency for mass‑produced equipment. Firm panel mounting also enhances vibration resistance for industrial working conditions.

FAQ 2

Q:Will this three‑phase insert‑type filter affect the normal working current of my equipment?

A: Under rated current condition, the filter brings extremely low impedance to power frequency current and will not obstruct normal power supply. Please make sure the actual operating current of your load does not exceed the rated current of the filter, so as to avoid overheating and guarantee long‑term reliable operation.

FAQ 3

Q:What points should we pay attention to for better filtering performance of insert‑mount EMI filter?

A: Reliable low‑resistance grounding is essential. Keep input wires and output wires separated without crossing or bundling together. Use proper‑cross‑section wires matching rated current. Strictly follow wiring diagram, wrong connection will greatly weaken noise suppression effect.

FAQ 4

Q:What industrial devices are suitable for 3‑phase insert‑mount EMI filter?

A: It is widely applied for servo drives, VFD frequency converters, automation control cabinets, motor drive systems, industrial PLC‑based equipment and other three‑phase AC devices. It helps whole machine to pass EMC test and reduce malfunction caused by power‑line interference.

FAQ 5

Q:Does the insert‑mount three‑phase EMI filter support CE and RoHS for exporting?

A: This series of insert‑mount three‑phase EMI filters meet CE and RoHS requirements, complying with European market access standards. Relevant certification documents can be offered upon your request for customs clearance and customer project audit.
