Product Description:

The EMC EMI Filter is a highly efficient EMI Interference Suppression Filter designed to provide superior performance in reducing electromagnetic disturbances in electrical and electronic systems. This filter is engineered to minimize the interference caused by electromagnetic noise, ensuring the smooth operation of sensitive equipment and enhancing overall system reliability.

One of the key features of this Interference Reduction Filter is its impressive voltage handling capabilities. It boasts a line-to-line voltage rating of 1450 VDC, which allows it to withstand significant voltage stress without compromising its filtering performance. Additionally, the line-to-ground voltage rating of 2000 VAC ensures robust protection against voltage spikes and transient events, making it suitable for a wide range of industrial and commercial applications.

Designed to operate efficiently within a voltage rating of 380/480VAC, this EMC ElectroMagnetic Interference Filter is ideal for use in systems powered by standard industrial voltages. Its operating frequency range of 50/60Hz makes it compatible with the majority of power systems worldwide, ensuring reliable performance in various geographical locations and electrical environments.

The EMC EMI Filter is built to withstand challenging environmental conditions, with a temperature range spanning from -25°C to +100°C. This wide temperature tolerance enables the filter to maintain its effectiveness even in harsh operating conditions, such as those found in industrial plants, automotive systems, and outdoor installations. The filter's robust construction and thermal resilience contribute to its long service life and reduced maintenance requirements.

Electromagnetic interference (EMI) is a common issue that can cause malfunctioning, data loss, or degradation of performance in electronic devices. The EMC EMI Filter addresses these challenges by effectively suppressing unwanted electromagnetic noise and disturbances. By incorporating this filter into your system, you can significantly reduce the risk of EMI-related issues, leading to improved device stability and enhanced signal integrity.

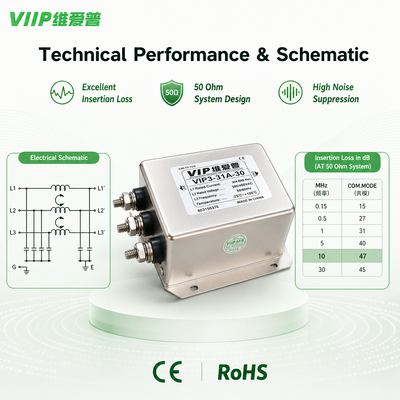

This Interference Reduction Filter is suitable for a wide range of applications, including power supplies, industrial machinery, consumer electronics, medical equipment, and telecommunications devices. Its ability to filter out both differential mode and common mode noise makes it a versatile solution for combating EMI in complex electrical systems.

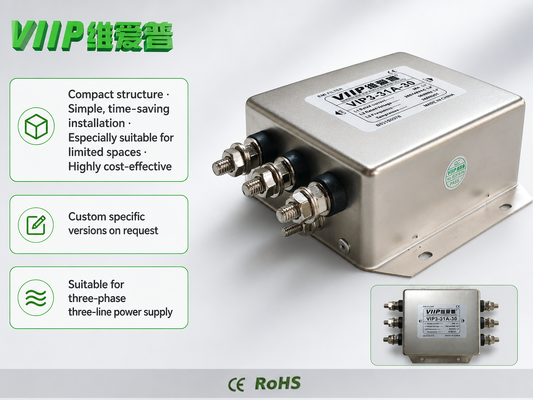

Installation of the EMC ElectroMagnetic Interference Filter is straightforward, and its compact design allows for easy integration into existing systems without requiring extensive modifications. The filter’s reliable performance and durability make it a cost-effective choice for engineers and technicians looking to enhance electromagnetic compatibility in their products.

In summary, the EMC EMI Filter provides exceptional EMI interference suppression capabilities, ensuring that electronic systems operate smoothly and reliably. With its high voltage ratings, broad temperature tolerance, and compatibility with standard industrial voltages and frequencies, this filter is an essential component for any application where electromagnetic interference is a concern. Choosing this EMI Interference Suppression Filter means investing in the quality and longevity of your electrical and electronic equipment.

Features:

• Product Name: EMC EMI Filter

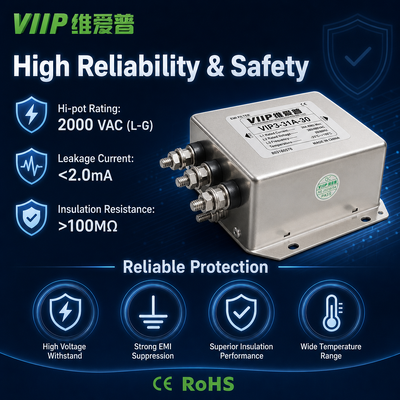

• Line to Ground Voltage: 2000 VAC
• Voltage Rating: 380/480VAC
• Temperature Range: -25°C to +100°C
• Current Rating: 30A RMS Max
• Operating Frequency: 50/60Hz
• Effective EMI Suppression Filter for reducing electromagnetic interference
• High-performance EMI Suppression Filter suitable for industrial applications
• Reliable EMI Suppression Filter designed to ensure stable electrical performance

Technical Parameters:

Applications:

The Weiaipu VIP3-31A-30(B031SO378) EMI Suppression Filter is an essential component designed to effectively reduce electromagnetic interference (EMI) in various electronic and electrical systems. Originating from Shenzhen, this high-quality filter meets ROHS certification standards, ensuring environmental compliance and reliable performance. With a voltage rating of 380/480VAC and operating frequency of 50/60Hz, it is ideally suited for industrial and commercial applications requiring robust interference reduction.

This EMI Interference Suppression Filter performs exceptionally well within a temperature range of -25°C to +100°C, making it versatile for use in diverse environmental conditions. The filter’s line-to-line voltage withstand is 1450 VDC, and line-to-ground voltage is 2000 VAC, providing superior protection against voltage spikes and surges, which can damage sensitive equipment. Packaged conveniently in cartons containing 120 pieces, with a minimum order quantity of 10 units priced at 3 USD each, the product is both cost-effective and readily available for bulk procurement.

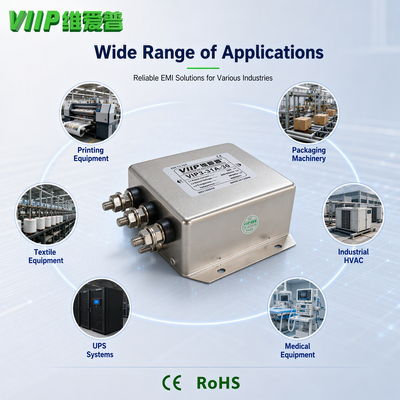

Typical application occasions for the Weiaipu VIP3-31A-30(B031SO378) include power supplies, motor drives, lighting systems, and industrial machinery where EMI suppression is critical to maintain system integrity and compliance with electromagnetic compatibility (EMC) standards. It is widely used in scenarios where electrical noise can disrupt communication signals, data processing units, or control systems, such as in manufacturing plants, renewable energy installations, HVAC systems, and automation equipment.

The interference reduction filter is also well-suited for use in household appliances and office equipment that require stable and clean power inputs to function efficiently. Its compact design and reliable performance make it an ideal choice for engineers and designers looking to minimize EMI-related issues in both new product developments and retrofit projects.

With a delivery time of 4-6 weeks and payment terms based on T/T, Weiaipu offers a dependable supply chain solution for businesses across the globe. Whether used in high-demand industrial settings or sensitive electronic devices, the VIP3-31A-30(B031SO378) EMI Interference Suppression Filter ensures enhanced equipment longevity and operational stability by effectively mitigating electromagnetic disturbances.

Customization:

Weiaipu offers product customization services for the EMI Interference Suppression Filter model VIP3-31A-30(B031SO378), designed and manufactured in ShenZhen. This EMI Suppression Filter is certified with ROhs, ensuring high quality and environmental compliance. With a minimum order quantity of 10 units, each filter is priced at 3 USD, making it an affordable solution for your EMI interference needs.

The VIP3-31A-30(B031SO378) EMI Interference Suppression Filter features a current rating of 30A RMS max and a voltage rating of 380/480VAC, operating efficiently within a frequency range of 50/60Hz. It is capable of withstanding a line to ground voltage of 2000 VAC, making it suitable for robust EMI interference suppression applications. The filter operates reliably within a temperature range of -25°C to +100°C.

Packaging details include 120PCS per carton, ensuring safe and efficient delivery. Our delivery time for customized orders is typically 4-6 weeks, with payment terms based on T/T. Trust Weiaipu to provide high-performance EMI Interference Suppression Filters tailored to your specific requirements for optimal EMI interference suppression.

Support and Services:

Our EMC EMI Filters are designed to provide superior electromagnetic interference suppression, ensuring the reliable operation of your electronic equipment. For technical support, please refer to the product datasheets and installation manuals available on our website.

If you require assistance with product selection, installation guidelines, or troubleshooting, our technical support team is ready to help you optimize your system performance and compliance with EMC standards.

We also offer customization services to tailor EMC EMI Filters to your specific application requirements. For ongoing service and maintenance, please follow the recommended procedures outlined in the product documentation to ensure long-term reliability.

For warranty information and service policies, please consult the warranty section included with your product or visit our support portal.
