Single Phase EMI Filter
>
VIIP VIP4‑1B‑20 B041T1252 Single‑Phase AC EMI Power Line Filter 20A 115/250VAC Terminal Block Type EMC Noise Suppressor RoHS REACH Certified

VIIP VIP4‑1B‑20 B041T1252 Single‑Phase AC EMI Power Line Filter 20A 115/250VAC Terminal Block Type EMC Noise Suppressor RoHS REACH Certified

Brand Name: Weiaipu
Model Number: VIP4-1B-20 (B041T1252)
MOQ: 64PCS
Price: USD10-15
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Place of Origin:
Shen Zhen
Certification:
CQC CB CE TUV UL ROHS REACH
Rated Voltage:
115/250VAC
Rated Current:
Max 20A RMS @115VAC
Max Leakage Current:
0.3mA (115VAC/60Hz);0.6mA (250VAC/50Hz)
Hi-pot Test Standard:
1 Minute Hi-pot Withstand Test
EMC Supporting Service:
Free EMC Design Debugging Consultation
Test System For Insertion Loss:
Test System For Insertion Loss
Supply Ability:
30K/month
Highlight:

Single-Phase EMI Power Line Filter 20A

,

AC EMI Filter Terminal Block Type

,

EMC Noise Suppressor RoHS Certified

Product Description
VIP4-1B-20 (B041T1252) Terminal Mount EMI Power Filter
Single Phase 20A EMI Power Filter VIP4-1B-20 (B041T1252). High quality EMI filter with 20A 115/250VAC single phase EMC power line filtering for AC power supply systems.
Product Overview

VIP4‑1B‑20 is an AC‑line EMI filter developed and produced by Shenzhen VIIP Electronics Co., Ltd. Its internal factory code is B041T1252. This EMI filter adopts terminal‑block connection structure, integrating common‑mode inductor L, discharge resistor R, X‑capacitor and Y‑capacitor inside one unit.

This EMI filter is rated for 115/250VAC mains voltage with 20A RMS maximum rated current, designed for 50/60Hz power supply networks. VIP4‑1B‑20 EMI filter complies with CE, RoHS and REACH requirements. It delivers reference insertion loss for common‑mode noise under 50‑ohm test system to suppress AC‑input conducted electromagnetic interference. It passes strict hipot and insulation resistance tests, and can operate stably within ‑25 °C ~ +100 °C working temperature range. Mounting holes are reserved for chassis installation, and terminal‑block wiring brings convenient and reliable cable connection for high‑current applications.

Product Highlights
  • High‑current rated EMI filter: VIP4‑1B‑20 EMI filter supports up to 20A RMS rated current at 115/250VAC, perfectly fits high‑power AC input scenarios.
  • Complete filter circuit topology: Built‑in common‑mode choke, X‑capacitor, Y‑capacitor and discharge resistor R, effectively absorbs and releases residual voltage for enhanced safety performance.
  • Universal AC voltage compatibility: Rated voltage 115/250VAC, compatible with global 50/60Hz power grid systems.
  • Well‑controlled leakage‑current performance: Max 0.3 mA leakage current @115VAC 60Hz; Max 0.6 mA @250VAC 50Hz, satisfies safety limits for most electronic equipment.
  • Superior insulation and high‑voltage endurance: Insulation resistance ≥100MΩ @500VDC between input/output and ground, meets one‑minute hipot test requirement to guarantee equipment safety margin.
  • Reliable terminal‑block connection: Terminal‑block wiring design, stable for high‑current cable wiring; reserved mounting holes for secure chassis panel fixing.
  • Wide working temperature adaptability: Operating temperature spans from ‑25 °C to +100 °C, suitable for ordinary indoor and semi‑industrial harsh working environments.
  • Full‑range environmental & safety compliance: This EMI filter meets CE, RoHS and REACH standards, ideal for export‑oriented electronic end‑products.
  • Effective common‑mode noise attenuation: Provides excellent reference common‑mode insertion loss under 50Ω test system to restrain power‑line conducted EMI noise.
Application

VIP4‑1B‑20 EMI filter is targeted for high‑power electronic devices to suppress conducted electromagnetic interference on AC power input:

  1. High‑power switching power supplies & power converters: Industrial power supplies, high‑power adapters, power conversion units, restrain switching noise and help pass EMC conducted emission tests.
  2. Industrial automation equipment: PLC systems, servo drives, industrial inverters, large‑size test & measurement instruments, resist complex interference from factory power grid.
  3. High‑power household and commercial appliances: Commercial kitchen equipment, large‑size audio‑video devices, automation cabinet devices, improve anti‑interference stability of mains‑powered equipment.
  4. IT cabinet & rack‑mount equipment: Multi‑unit server cabinets, communication power racks, industrial computer hosts, filter common‑mode noise for multi‑device power supply systems.
  5. New‑energy auxiliary power equipment: Auxiliary power modules for charging equipment, energy‑storage accessory power supplies, solve EMC challenges for high‑current AC input interfaces.
  6. Medical auxiliary & lab equipment: Suitable for non‑critical medical auxiliary devices; pay close attention to leakage‑current index when applying to formal medical‑grade equipment.
  7. EMC design and debugging projects: Serves as high‑current AC‑input EMI filter for hardware EMC rectification, optimizes conducted emission test performance for high‑power products.
Electrical Characteristics
Parameter Specification
Voltage Rating 115/250 VAC
Current Rating at 115VAC 20A RMS Max.
Current Rating at 250VAC 20A RMS Max.
Operating Frequency 50/60 Hz
Leakage Current @115VAC/60Hz 0.3 mA Max.
Leakage Current @250VAC/50Hz 0.6 mA Max.
Hi-pot Rating For One Minute
Insulation Resistance (IR) ≥100MΩ @500VDC
Temperature Range -25°C ~ +100°C
Insertion Loss
Mode 0.15 MHz 0.5 MHz 1 MHz 10 MHz 30 MHz
COM.MODE 19 29 47 67 35
DIFF.MODE
58 73 67
ABOVE TABLES ARE REFERENCE ONLY.
Electrical Schematic & Product Images

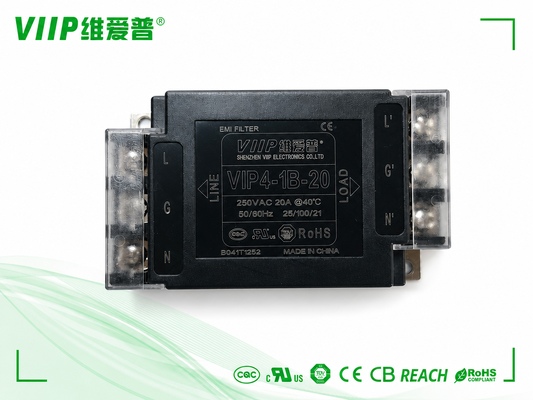

VIP4-1B-20 EMI Filter Electrical Schematic Diagram VIP4-1B-20 EMI Filter Product View VIP4-1B-20 EMI Filter Technical Drawing VIP4-1B-20 EMI Filter Dimensions
VIIP VIP4‑1B‑20 B041T1252 Single‑Phase AC EMI Power Line Filter 20A 115/250VAC Terminal Block Type EMC Noise Suppressor RoHS REACH Certified
Frequently Asked Questions
Q1: Do you supply samples of VIP4-1B-20 terminal block EMI filter for our EMC performance test?
Yes, we can provide VIP4-1B-20 samples for customer EMC testing.
Q2: What environmental compliance certificates does VIP4-1B-20 power filter have? Does your factory pass ISO9001 certification?
Our VIP4-1B-20 EMI filter fully complies with RoHS & REACH standards for global export. Our manufacturing factory holds ISO9001 quality management certification, all products pass complete internal safety tests and we can offer official certification documents upon request.
Q3: What are the rated voltage, rated current and leakage current parameters of VIP4-1B-20 single-phase filter?
Rated voltage: 115/250VAC, max 20A RMS at 115VAC; Operating frequency 50/60Hz. Max leakage current 0.3mA@115VAC/60Hz, 0.6mA@250VAC/50Hz, suitable for most industrial automation equipment.
Q4: What's the hipot test and insulation resistance standard of VIP4-1B-20? How about its common & differential mode insertion loss?
The filter withstands 1-minute high-pot test; insulation resistance ≥100MΩ under 500VDC between input/output and ground. It achieves excellent insertion loss in 0.15~30MHz under 50Ohm system, effectively suppressing both common mode and differential mode power interference.
Q5: Do you only make terminal block type filters? What other installation styles of EMI filters do you produce?
Besides terminal block type, we manufacture IEC socket, DIN rail mounted, bolt connection and wire lead EMI power filters.
