VIP4 -1A- 10(10247) Mains Conducted Noise Suppressor 10A 115 250VAC For EMC Test Pass RoHS REACH

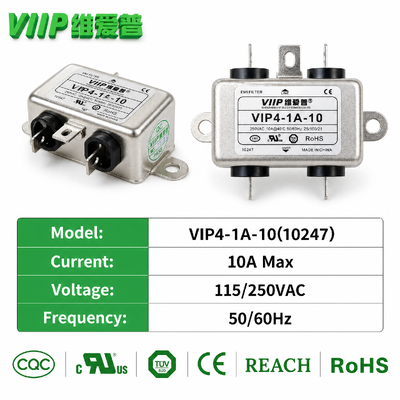

Brand Name:	Weiaipu VIIP
Model Number:	VIP4-1A-10 (10247)
MOQ:	245
Price:	2.817
Packaging Details:	neutral
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CB UL CQC RoHS REACH

Voltage Rating:

115/250VAC

Current Rating:

10A RMS Max

Operating Frequency:

50/60Hz

Line To Ground:

2000 VAC

Line To Line:

1450 VDC

Supply Ability:

30K/MONTH

Highlight:

EMC noise suppressor 10A

RoHS compliant EMI filter

mains noise suppressor 250VAC

Product Description

Product Brief

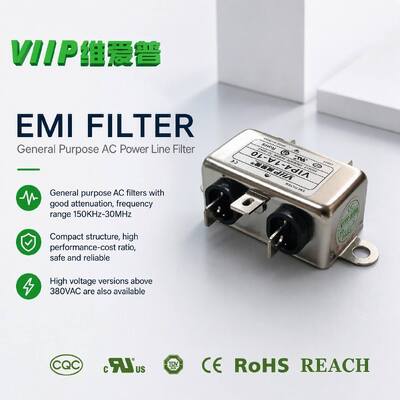

VIP4 1A 10(10247) is a single phase EMI power filter manufactured by VIIP. It is rated 115 250VAC with 10A RMS maximum current and adapts to 50 60Hz power frequency. This filter provides high insertion loss on common mode and differential mode interference. Its main purpose is to filter high frequency noise transmitted through AC power lines, restrain electromagnetic disturbance and protect internal sensitive electronic circuits. With low leakage current, high hi pot withstand capacity and insulation resistance, it can run stably within operating temperature of minus 25 degree Celsius to 100 degree Celsius. It adopts solder terminal structure for convenient wiring and meets RoHS and REACH requirements for worldwide export.

VIP4 -1A- 10(10247) Mains Conducted Noise Suppressor 10A 115 250VAC For EMC Test Pass RoHS REACH

Purpose and Application Scope

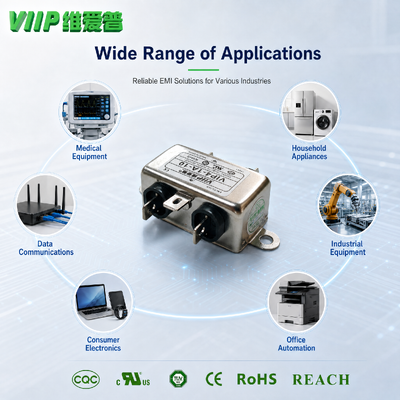

It is used to enhance the anti interference ability of end equipment and help finished products satisfy EMC assessment standards. It is widely applied for single phase AC equipment such as industrial automation facilities, test and measuring instruments, control panels, commercial processing devices, laboratory equipment and household electronic appliances.

FAQ

Q1: What are the rated voltage and current of VIP4 1A 10(10247) filter?

A: Its rated voltage is 115 250VAC. The maximum rated current is 10A RMS under 115VAC and 250VAC, suitable for 50 60Hz power supply system.

Q2: What are the leakage current parameters for this filter?

A: The maximum line to ground leakage current is 0.3mA under 115VAC 60Hz, and maximum 0.6mA under 250VAC 50Hz. Low leakage performance supports most electronic application scenarios.

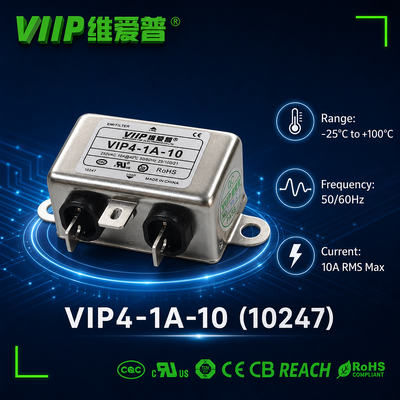

Q3: What is the operating temperature range of VIP4 1A 10(10247)?

A: Its working temperature ranges from minus 25 degree Celsius to 100 degree Celsius. It maintains stable performance under general industrial indoor working conditions.

Q4: What are the high voltage test and insulation resistance specifications?

A: In one minute hi pot test, line to ground withstand voltage is 2000VAC and line to line withstand voltage is 1450VDC. The insulation resistance is no less than 100M ohm under 500VDC.

Q5: What is the core usage and applicable equipment of VIP4 1A 10(10247)?

A: Its core usage is to suppress common mode and differential mode high frequency power noise and improve whole machine EMC performance. It fits single phase AC devices including industrial automation units, measuring instruments, control panels, commercial equipment and household electronics.
