Single Phase EMI Filter

VIIP VIP4-1A-03 3A Ultra Low Leakage 115/250VAC Single Phase EMI Power Line Filter for Medical Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP VIP4-1A-03 3A Ultra Low Leakage 115/250VAC Single Phase EMI Power Line Filter for Medical Equipment

Brand Name:	Weiaipu
Model Number:	VIP4-1A-03((B041W0674)
MOQ:	120PCS
Price:	USD4.4
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CB CE TUV UL ROHS REACH

Current Rating:

Phase:

Voltage Rating:

115/250VAC

Leakage Current:

Ultra Low

Supply Ability:

30K/month

Highlight:

3A EMI Filter

Ultra Low Leakage Power Line Filter

115/250VAC Single Phase EMI Filter

Product Description

VIIP Original VIP4-1A-03 Power Line Filter 3A 115/250VAC High Common Mode Attenuation Ultra Low Ground Leak Custom Wiring Length For Hospital Test Equipment

Product Overview

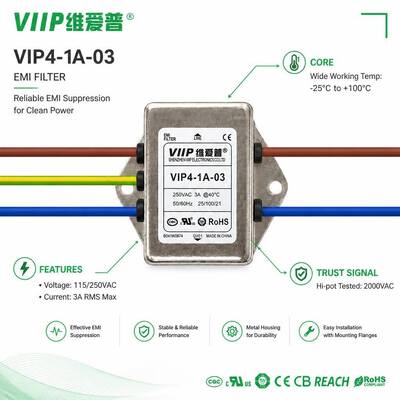

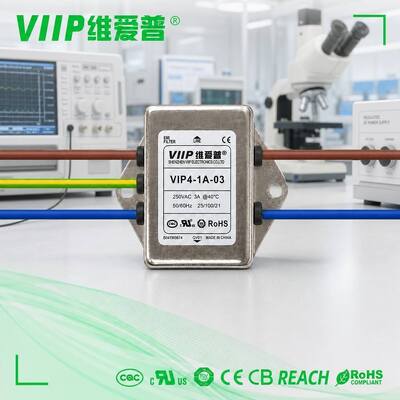

VIIP VIP4-1A-03 3A 1-Phase Wire Lead EMI Filter

High-performance EMI filter designed for medical and laboratory instruments requiring ultra low leakage current and reliable EMC noise suppression.

Current Rating: 3A
Phase: 1-Phase
Voltage: 115/250VAC

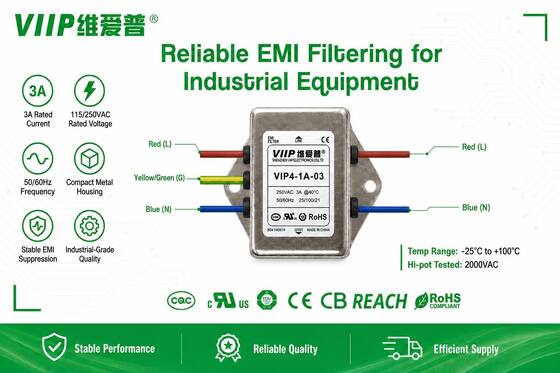

Configuration: Wire Lead
Filter Type: RC-LC EMC Noise Filter
Leakage Current: Ultra Low

Applications: Medical equipment, laboratory instruments, and sensitive electronic devices requiring superior EMI/RFI suppression with minimal leakage current.

Electrical Characteristics

Parameter	Value
Voltage Rating	115/250 VAC
Current Rating at 115VAC	3A RMS Max.
Current Rating at 250VAC	3A RMS Max.
Operating Frequency	50/60 Hz
Leakage Current at 115VAC/60Hz	0.25 mA Max.
Leakage Current at 250VAC/50Hz	0.45 mA Max.
IR (Insulation Resistance)	100M ohm AT 500VDC, ANY Input or Output to Ground
Temperature Range	-25°C ~ +100°C

Insertion Loss Performance

MHz (频率)	0.15	0.5	1	5	10	30
COM.MODE (共模)	28	36	39	45	48	39
DIFF.MODE (差模)	8	19	27	58	65	15

Technical Documentation

Frequently Asked Questions

What are the electrical specs, filtering performance, safety index and installation way of VIP4-1A-03?

Specification: 3A, 115/250VAC, 50/60Hz
Circuit: RC-LC dual stage, max CM insertion loss 48dB, DM 65dB@500hm

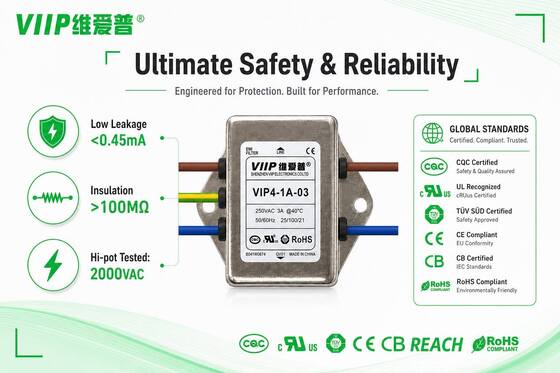

Safety: Ultra low leakage current for medical equipment, 2000VAC 1min hi-pot test, insulation resistance ≥100MΩ@500VDC

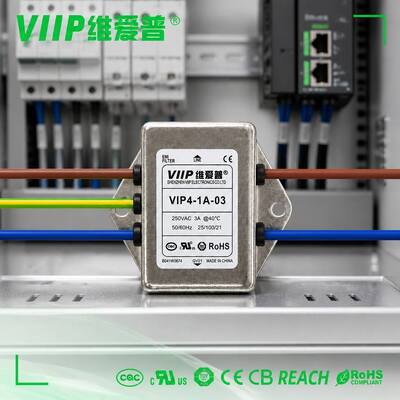

Mounting: Wire lead type with fixed holes for compact cabinet installation

Can I get VIP4-1A-03 samples for EMC lab testing?

Sample testing is available.

What safety and environmental certifications does VIP4-1A-03 have?

VIP4-1A-03 owns CE, UL, CQC, TUV, CB, RoHS and REACH certificates.

Can you recommend suitable EMI filter models based on my equipment such as medical analytical instruments and portable precision test devices?

Yes. Please inform us your equipment rated current, working voltage, equipment type and actual interference performance. We will recommend the most matching filter model and attach wiring & installation notes for your application scene.

Can your engineers provide free EMC interference analysis and rectification suggestions for our equipment?

Absolutely. Our professional EMC R&D team can analyze your equipment power interference problems according to your circuit structure and test phenomenon, provide free filtering optimization schemes to help you whole machine pass EMC certification smoothly.
