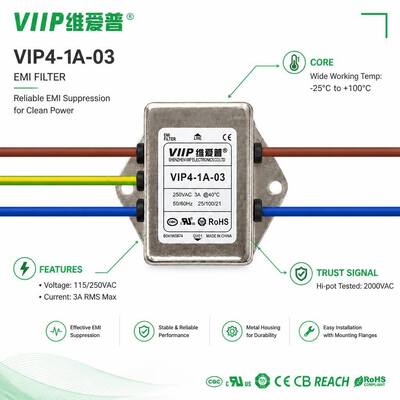

VIIP VIP4-1A-03 3A Single Phase EMI Filter with Ultra Low Leakage for 115/250VAC Medical Equipment
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

VIIP VIP4-1A-03 3A Single Phase EMI Filter with Ultra Low Leakage for 115/250VAC Medical Equipment

Brand Name: Weiaipu
Model Number: VIP4-1A-03((B041W0674)
MOQ: 120PCS
Price: USD4.4
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shen Zhen
Certification:
CQC CB CE TUV UL ROHS REACH
Current Rating:
3A
Phase:
1Ph
Voltage Rating:
115/250VAC
Leakage Current:
Ultra Low
Supply Ability:
30K/month
Highlight:

Ultra Low Leakage Single Phase EMI Filter

,

115/250VAC EMC Noise Filter

,

3A Rated RC-LC Filter

Product Description
VIIP VIP4-1A-03 3A Single Phase Wire Lead EMI Filter
High-performance EMI filter designed for medical and laboratory instruments requiring ultra low leakage current and reliable EMC noise suppression. Certified CE RoHS for EU medical diagnostic lab equipment.
Key Specifications
  • Current Rating: 3A
  • Phase: 1-Phase
  • Voltage: 115/250VAC
  • Configuration: Wire Lead
  • Filter Type: RC-LC EMC Noise Filter
  • Leakage Current: Ultra Low
Applications: Medical equipment, laboratory instruments, and sensitive electronic devices requiring superior EMI/RFI suppression with minimal leakage current.
Electrical Characteristics
Parameter Value
Voltage Rating 115/250 VAC
Current Rating at 115VAC 3A RMS Max.
Current Rating at 250VAC 3A RMS Max.
Operating Frequency 50/60 Hz
Leakage Current at 115VAC/60Hz 0.25 mA Max.
Leakage Current at 250VAC/50Hz 0.45 mA Max.
IR (Insulation Resistance) 100M ohm AT 500VDC, ANY Input or Output to Ground
Temperature Range -25°C ~ +100°C
Insertion Loss Performance
MHz (频率) 0.15 0.5 1 5 10 30
COM.MODE (共模) 28 36 39 45 48 39
DIFF.MODE (差模) 8 19 27 58 65 15
Electrical Schematic
VIIP VIP4-1A-03 Electrical Schematic Diagram

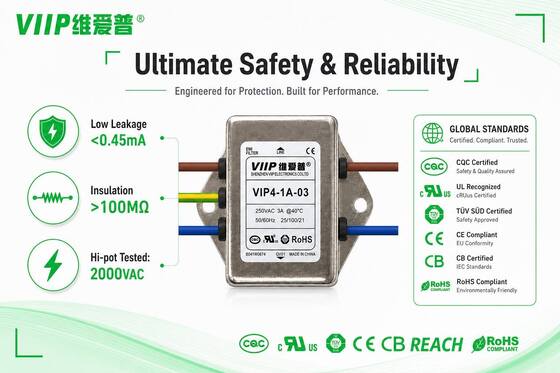

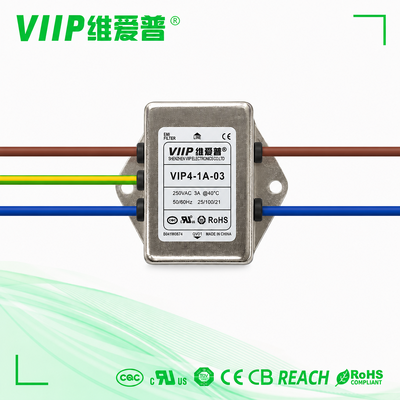

Product Details
VIIP VIP4-1A-03 Product Detail View 1
VIIP VIP4-1A-03 Product Detail View 2
VIIP VIP4-1A-03 Product Detail View 3
VIIP VIP4-1A-03 Product Detail View 4
VIIP VIP4-1A-03 Product Detail View 5
Frequently Asked Questions
Q1: What are the electrical specs, filtering performance, safety index and installation way of VIP4-1A-03?
1. Spec.: 3A, 115/250VAC, 50/60Hz;
2. Circuit: RC-LC dual stage, max CM insertion loss 48dB, DM 65dB@500hm;
3. Safety: Ultra low leakage current for medical equipment, 2000VAC 1min hi-pot test, insulation resistance ≥100MΩ@500VDC;
4. Mounting: Wire lead type with fixed holes for compact cabinet installation.
Q2: Can I get VIP4-1A-03 samples for EMC lab testing?
Sample testing is available.
Q3: What safety and environmental certifications does VIP4-1A-03 have?
VIP4-1A-03 owns CE, UL, CQC, TUV, CB, RoHS and REACH certificates.
Q4: Can you recommend suitable EMI filter models based on my equipment such as medical analytical instruments and portable precision test devices?
Yes. Please inform us your equipment rated current, working voltage, equipment type and actual interference performance. We will recommend the most matching filter model and attach wiring & installation notes for your application scene.
Q5: Can your engineers provide free EMC interference analysis and rectification suggestions for our equipment?
Absolutely. Our professional EMC R&D team can analyze your equipment power interference problems according to your circuit structure and test phenomenon, provide free filtering optimization schemes to help you whole machine pass EMC certification smoothly.
