Product Description:

The EMC EMI Filter is a highly efficient EMI Interference Suppression Filter designed to provide superior protection against electromagnetic interference in various electrical and electronic applications. Operating at a standard frequency of 50/60Hz, this filter is ideal for use in environments where stable and reliable power supply is essential. Its robust design ensures that unwanted electromagnetic noise is effectively minimized, thereby enhancing the performance and longevity of connected equipment.

This EMC ElectroMagnetic Interference Filter features a voltage rating suitable for both 115VAC and 250VAC systems, making it versatile for global applications. The line-to-line voltage withstand capability of 500 VDC further attests to its durability and reliability under demanding electrical conditions. These specifications make the filter suitable for integration into a wide array of devices and systems that require stringent EMI suppression to comply with regulatory standards and operational requirements.

One of the standout features of this EMI Interference Suppression Filter is its impressive current rating of up to 10A RMS maximum. This ensures that the filter can handle significant electrical loads without compromising its filtering effectiveness or operational stability. Whether used in industrial machinery, consumer electronics, or sensitive communication equipment, the filter maintains consistent performance, reducing the risk of electromagnetic disturbances that can cause malfunctions or degradation of signal integrity.

Temperature resilience is another critical attribute of the EMC EMI Filter. It operates efficiently within a broad temperature range from -25°C to +100°C, making it suitable for use in a variety of environmental conditions. This wide operating temperature range ensures reliable performance even in harsh or fluctuating climates, which is essential for outdoor installations or industrial environments where temperature extremes are common.

Designed with quality and compliance in mind, this EMC ElectroMagnetic Interference Filter meets stringent industry standards, helping manufacturers and system integrators achieve electromagnetic compatibility (EMC) requirements with ease. By incorporating this filter into their designs, engineers can significantly reduce the risk of electromagnetic interference that might otherwise lead to equipment failure, data corruption, or non-compliance with regulatory directives.

The compact and durable construction of the filter facilitates straightforward installation and integration into existing systems. Its design emphasizes minimal insertion loss while maximizing interference attenuation, striking an ideal balance between performance and efficiency. This makes it an excellent choice for applications where space is limited but high EMI suppression is necessary.

In summary, the EMC EMI Filter serves as a critical component for any system requiring reliable EMI interference suppression. Its operating frequency of 50/60Hz, voltage ratings of 115/250VAC, and line-to-line voltage endurance of 500 VDC, combined with a robust current rating of 10A RMS and an extensive temperature range of -25°C to +100°C, make it a versatile and dependable solution. Whether used as an EMI Interference Suppression Filter or an EMC ElectroMagnetic Interference Filter, it delivers superior protection against electromagnetic disturbances, ensuring the smooth and safe operation of electrical and electronic equipment across diverse applications.

Features:

• Product Name: EMC EMI Filter
• Interference Reduction Filter for enhanced performance
• Line to Ground Voltage Rating: 2000 VAC
• Current Rating: 10A RMS Max
• Voltage Rating: 115/250 VAC
• Operating Frequency: 50/60 Hz
• Line to Line Voltage Rating: 500 VDC
• EMI Interference Suppression Filter for effective noise reduction
• Reliable Interference Reduction Filter to ensure system stability

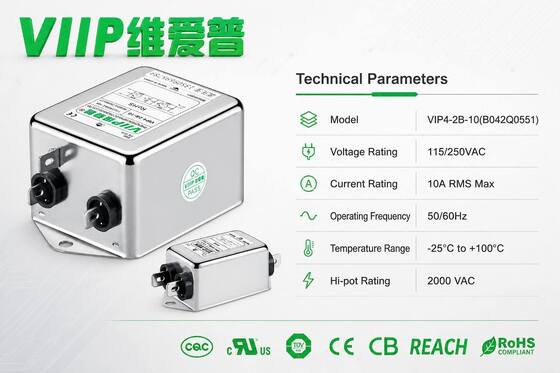

Technical Parameters:

Applications:

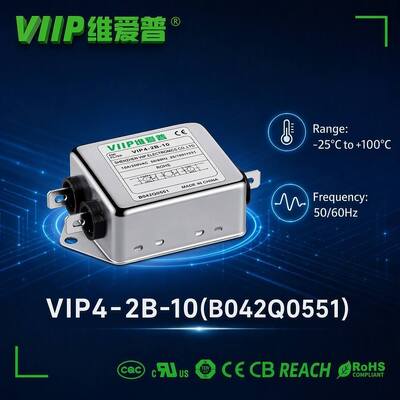

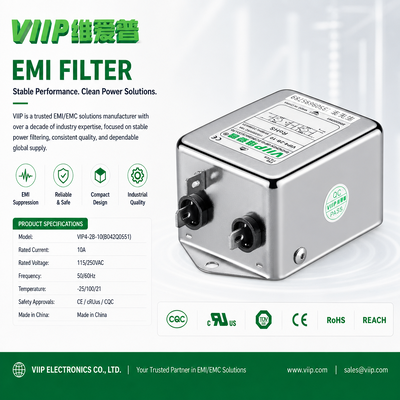

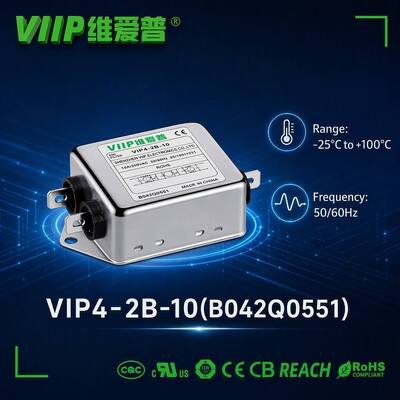

The Weiaipu EMI Suppression Filter, model VIP4-2B-10(B042Q0551), is a highly reliable EMC EMI filter designed to effectively reduce electromagnetic interference in various electronic applications. Manufactured in ShenZhen and certified with ROHS, this interference reduction filter ensures compliance with environmental standards while delivering excellent performance. With a current rating of 10A RMS max and voltage rating of 115/250VAC, it is suitable for a wide range of electrical devices operating at 50/60Hz frequency.

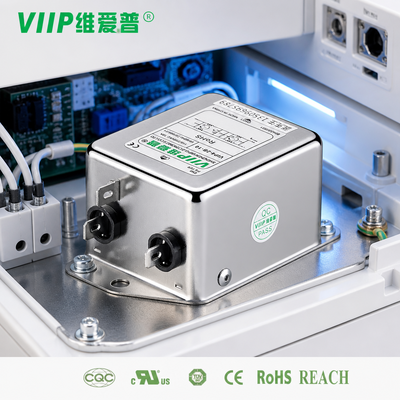

This interference reduction filter is ideal for use in industrial equipment, household appliances, medical devices, and telecommunications systems where minimizing electromagnetic noise is critical. Its robust temperature range from -25°C to +100°C allows it to function efficiently in harsh environments, making it a dependable choice for applications that demand high durability and stability.

Thanks to its line-to-line voltage rating of 500 VDC, the Weiaipu VIP4-2B-10(B042Q0551) EMI suppression filter is perfect for protecting sensitive electronic circuits from voltage spikes and transient disturbances. It is commonly employed in power supplies, motor drives, lighting systems, and audio-visual equipment to enhance signal integrity and reduce unwanted interference.

With a minimum order quantity of 10 units and an affordable price of 3 USD per piece, this interference reduction filter is economical for both small-scale and large-scale production needs. The packaging details include 120 pieces per carton, ensuring convenient storage and handling. Delivery time ranges from 4 to 6 weeks, and payment terms are flexible with T/T options available, making procurement straightforward and efficient.

In scenarios where clean power supply and electromagnetic compatibility are paramount, the Weiaipu EMI suppression filter serves as an essential component. Whether in commercial electronics manufacturing, automotive systems, or renewable energy installations, this filter helps maintain compliance with EMC regulations while enhancing overall system performance and reliability.

Customization:

Weiaipu offers customized EMC EMI Filter solutions with the model number VIP4-2B-10(B042Q0551), designed to meet your specific requirements. Originating from ShenZhen and certified with ROHS, this Interference Reduction Filter ensures high quality and reliability.

Our EMI Interference Suppression Filter operates efficiently within a temperature range of -25°C to +100°C, with a voltage rating of 115/250VAC and an operating frequency of 50/60Hz. It provides excellent protection with line to ground insulation of 2000 VAC and line to line insulation of 500 VDC.

The minimum order quantity is 10 units, priced competitively at 3USD each. Products are carefully packaged with 120PCS per carton to ensure safe delivery. Delivery time ranges from 4 to 6 weeks, with payment terms via T/T.

Choose Weiaipu’s EMC ElectroMagnetic Interference Filter for effective suppression of electromagnetic interference, enhancing the performance and durability of your electronic devices.

Support and Services:

EMC EMI Filters are designed to suppress electromagnetic interference in electrical and electronic equipment, ensuring compliance with international standards and improving overall system performance. Our technical support team is dedicated to assisting customers with product selection, installation guidance, and troubleshooting to optimize filter performance in various applications.

We offer comprehensive services including pre-sales consultation to help identify the most suitable EMI filter for your specific requirements, detailed product documentation, and application notes. Post-purchase, our support includes technical assistance for installation, testing, and maintenance to ensure reliable operation and longevity of the filters.

For complex systems or custom requirements, we provide tailored solutions and engineering support to integrate EMC EMI Filters seamlessly into your equipment. Our goal is to help minimize electromagnetic disturbances, enhance device reliability, and ensure compliance with regulatory standards.

Additionally, we offer training and workshops to educate customers on EMC principles, filter functionalities, and best practices for EMC mitigation. Our commitment is to deliver high-quality support and services to maximize the value and effectiveness of our EMC EMI Filter products.

FAQ
Q1: What is the rated current and voltage of VIP4‑2B‑10?
A: Rated current is 10A RMS Max, rated voltage supports 115/250VAC, 50/60Hz single‑phase AC power supply.
Q2: What is the maximum leakage current for this filter?
A: Max 0.5mA at 115VAC/60Hz; max 1.0mA at 250VAC/50Hz, suitable for safety‑focused equipment.
Q3: What are the hip‑pot test specifications?
A: Line‑to‑Ground: 2000VAC for 1 minute; Line‑to‑Line: 500VDC for 1 minute. Insulation resistance ≥100MΩ under 500VDC.
Q4: What is its operating temperature range?
A: Operating temperature ranges from ‑25℃ to +100℃ for continuous working.
Q5: Can this filter help my product pass EMC test?
A: It offers good insertion loss for common‑mode & differential‑mode noise. Actual test result depends on whole‑system layout, grounding and wiring of your end device.
