The EMC EMI Filter is a high-performance Interference Reduction Filter designed to ensure optimal electromagnetic compatibility in various electrical and electronic applications. This EMI Interference Suppression Filter is engineered to effectively minimize electromagnetic noise and disturbances, providing reliable protection for sensitive equipment against unwanted interference. With its robust design and superior filtering capabilities, the EMC EMI Filter is an essential component for maintaining signal integrity and enhancing the overall performance of electronic systems.

Rated for a voltage of 115/250VAC, this EMI Suppression Filter is versatile and suitable for a wide range of applications operating within standard AC voltage levels. The filter can handle a maximum current of 10A RMS, making it ideal for medium-power devices and systems that require efficient noise reduction without compromising power delivery. Its ability to operate efficiently under these electrical parameters ensures that the connected equipment remains safe from the adverse effects of electromagnetic interference.

One of the key safety features of this EMC EMI Filter is its high isolation voltage capacity. It offers a line-to-ground voltage rating of 2000 VAC, which guarantees excellent protection against voltage spikes and transient surges that could otherwise damage sensitive components. Additionally, the filter provides a line-to-line voltage rating of 500 VDC, further enhancing its capability to endure high-voltage stress and maintain stable operation in demanding environments. These voltage ratings make the filter highly reliable and durable, suitable for use in industrial, commercial, and residential settings.

The EMC EMI Filter is also designed to operate efficiently across a broad temperature range of -25°C to +100°C. This wide temperature tolerance ensures consistent performance even in harsh conditions, including extreme cold and elevated heat environments. The filter's robust thermal stability makes it a dependable choice for applications where temperature variations are a concern, ensuring long-term reliability and minimal maintenance requirements.

Incorporating this EMI Interference Suppression Filter into your system helps reduce electromagnetic interference, which can cause malfunctions, data loss, or degraded performance in electronic devices. By effectively suppressing conducted and radiated noise, the filter enhances signal clarity and reduces the likelihood of system failures due to electromagnetic disturbances. This makes it particularly valuable in sensitive electronic equipment such as medical devices, communication systems, industrial machinery, and consumer electronics.

Moreover, the EMC EMI Filter is designed with compactness and ease of installation in mind. Its construction allows for straightforward integration into existing circuits without requiring significant modifications. This user-friendly design aspect facilitates efficient assembly and maintenance, saving time and reducing technical complexity for engineers and technicians.

Overall, the EMC EMI Filter combines high voltage and current handling capabilities with excellent interference suppression performance, offering a reliable solution for electromagnetic compatibility challenges. Whether you need to protect industrial equipment, improve electronic device performance, or comply with regulatory standards for electromagnetic emissions, this Interference Reduction Filter provides a cost-effective and efficient means to achieve these goals. Its advanced design and robust specifications make it an indispensable component in modern electronic and electrical systems.

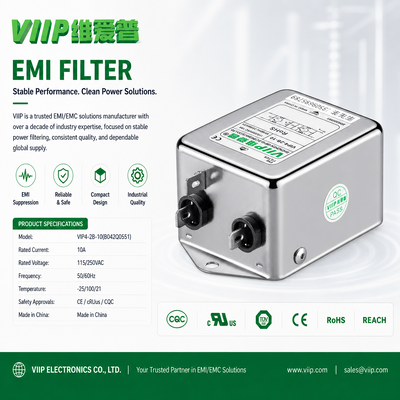

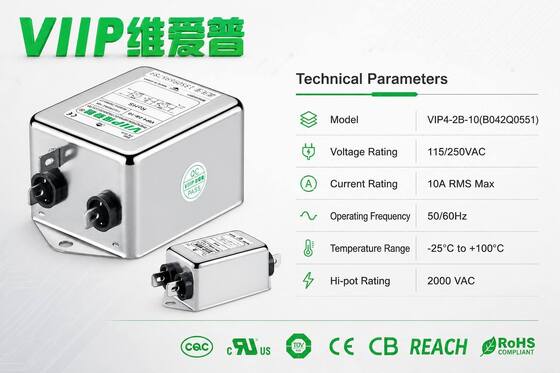

• Product Name: EMC ElectroMagnetic Interference Filter (EMC EMI Filter)
• Temperature Range: -25°C to +100°C
• Current Rating: 10A RMS Max
• Line to Ground Voltage: 2000 VAC
• Voltage Rating: 115/250VAC
• Operating Frequency: 50/60Hz
• Designed as an Interference Reduction Filter for effective noise suppression
• Provides reliable performance in various environmental conditions
• Ensures compliance with EMC standards by reducing electromagnetic interference

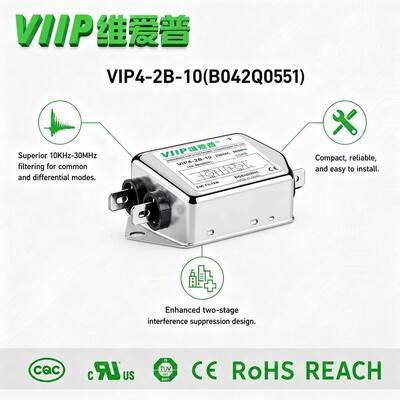

The Weiaipu EMC EMI Filter, model VIP4-2B-10(B042Q0551), is a high-quality Interference Reduction Filter designed to provide exceptional EMI suppression in various electrical and electronic applications. Originating from Shenzhen, this filter is certified with ROHS, ensuring compliance with environmental and safety standards. It is particularly suited for scenarios requiring effective noise reduction and signal integrity maintenance, making it an ideal choice for manufacturers and engineers looking to enhance their products’ electromagnetic compatibility.

This EMI Suppression Filter is widely used in industrial equipment, medical devices, telecommunications, and consumer electronics where interference reduction is critical. Its current rating of 10A RMS max and voltage rating of 115/250VAC allow it to handle moderate power loads while maintaining reliable performance in environments with fluctuating electrical conditions. The filter’s temperature range, from -25°C to +100°C, ensures it can operate efficiently in a variety of climates and industrial settings without degradation.

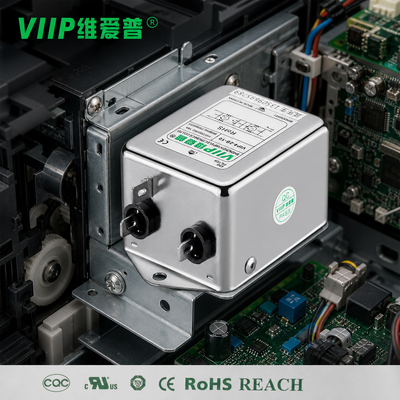

In manufacturing plants, the VIP4-2B-10(B042Q0551) serves as an essential component for reducing electromagnetic interference that can disrupt sensitive machinery and communication devices. It is also used in power supplies and control panels to prevent noise from affecting system operations, thereby improving overall equipment reliability and lifespan. The filter’s line-to-line voltage rating of 500 VDC and line-to-ground rating of 2000 VAC provide robust protection against voltage spikes and transient disturbances, safeguarding connected devices.

With a minimum order quantity of 10 units and a competitive price of 3 USD per piece, the Weiaipu Interference Reduction Filter is accessible for both small and large-scale projects. The packaging detail of 120 pieces per carton facilitates bulk orders and efficient inventory management. Delivery time ranges from 4 to 6 weeks, with payment terms via T/T, making it convenient for international buyers and suppliers.

Overall, the Weiaipu VIP4-2B-10(B042Q0551) Interference Reduction Filter is an indispensable solution for applications requiring reliable electromagnetic interference mitigation. Its certification, robust electrical specifications, and versatile operating conditions make it suitable for a broad range of scenarios where EMI suppression is paramount to device performance and compliance.

Weiaipu offers customization services for the EMC ElectroMagnetic Interference Filter model VIP4-2B-10(B042Q0551), designed to meet your specific requirements. Manufactured in ShenZhen and certified with ROhs, this EMI Interference Suppression Filter ensures reliable performance with a voltage rating of 115/250VAC and a current rating of 10A RMS Max. The filter operates within a temperature range of -25°C to +100°C, providing effective interference reduction under various conditions.

Our Interference Reduction Filter features a line-to-line voltage rating of 500 VDC and a line-to-ground voltage rating of 2000 VAC, making it suitable for a wide range of applications requiring electromagnetic compatibility. Weiaipu guarantees a minimum order quantity of 10 pieces, with packaging details of 120PCS per carton, ensuring efficient handling and shipping.

Priced competitively at 3 USD per unit, we offer flexible payment terms via T/T and a delivery time frame of 4-6 weeks. Trust Weiaipu to provide high-quality, customizable EMC ElectroMagnetic Interference Filters that effectively suppress EMI and reduce interference for your electronic systems.

For technical support and service inquiries regarding EMC EMI Filters, please refer to the product documentation and installation guides provided with your purchase. Our technical support team is available to assist with installation, troubleshooting, and performance optimization to ensure compliance with electromagnetic compatibility standards.

We offer comprehensive support including product selection assistance, application advice, and maintenance guidelines. For warranty information, repair services, and replacement parts, please consult the terms and conditions that accompany your product.

To maximize the efficiency of your EMC EMI Filter, ensure proper grounding and follow all recommended installation procedures. Our technical resources include FAQs, datasheets, and application notes accessible through our official website.

We are committed to providing high-quality service to help you achieve optimal performance and reliability from your EMC EMI Filter solutions.

Q1: What is the rated current and voltage of VIP4‑2B‑10?

A: Rated current is 10A RMS Max, rated voltage supports 115/250VAC, 50/60Hz single‑phase AC power supply.

Q2: What is the maximum leakage current for this filter?

A: Max 0.5mA at 115VAC/60Hz; max 1.0mA at 250VAC/50Hz, suitable for safety‑focused equipment.

Q3: What are the hip‑pot test specifications?

A: Line‑to‑Ground: 2000VAC for 1 minute; Line‑to‑Line: 500VDC for 1 minute. Insulation resistance ≥100MΩ under 500VDC.

Q4: What is its operating temperature range?

A: Operating temperature ranges from ‑25℃ to +100℃ for continuous working.

Q5: Can this filter help my product pass EMC test?

A: It offers good insertion loss for common‑mode & differential‑mode noise. Actual test result depends on whole‑system layout, grounding and wiring of your end device.
