The EMC EMI Filter is a highly efficient EMI Interference Suppression Filter designed to provide superior protection against electromagnetic interference in various electrical and electronic applications. With a robust voltage rating of 115/250VAC, this EMI Suppression Filter is engineered to handle a broad range of operating conditions, ensuring reliable performance and enhanced device safety. The product is specifically tailored for use in environments where minimizing EMI is crucial to maintaining the integrity and functionality of sensitive equipment.

One of the standout features of this EMI Suppression Filter is its impressive line-to-ground voltage rating of 2000 VAC. This high insulation level guarantees effective suppression of unwanted noise and interference that can occur between the line and ground connections, significantly reducing the risk of equipment malfunction or failure due to electromagnetic disturbances. This makes the EMC EMI Filter an ideal choice for industrial, commercial, and residential applications where EMI can compromise system performance.

With a current rating of 10A RMS maximum, the filter can accommodate substantial electrical loads without compromising its suppression capabilities. This current handling capacity ensures that the filter can be integrated seamlessly into a wide array of systems, from consumer electronics to more demanding industrial machinery. The ability to manage 10A RMS current makes this EMI Suppression Filter a versatile component capable of enhancing the electromagnetic compatibility of various devices and systems.

The EMC EMI Filter is designed to operate efficiently within a temperature range of -25°C to +100°C. This broad temperature tolerance ensures that the filter maintains its performance and reliability under diverse environmental conditions, including both cold and high-temperature scenarios. Such resilience is essential for applications in harsh or variable climates, where temperature fluctuations could otherwise affect the stability and effectiveness of EMI suppression components.

Operating at standard power frequencies of 50/60Hz, this EMI Interference Suppression Filter is compatible with the majority of electrical systems worldwide. This compatibility assures users that the filter can be deployed in different regions and applications without concerns about frequency mismatches, thereby offering a universal solution for EMI suppression needs.

The design and construction of the EMC EMI Filter focus on maximizing EMI suppression efficiency while maintaining ease of integration into existing circuits. Its compact form factor and reliable electrical characteristics make it a preferred choice for engineers and designers looking to enhance electromagnetic compatibility without sacrificing space or adding complexity to their designs.

In summary, the EMC EMI Filter stands out as a dependable EMI Suppression Filter that combines high voltage and current ratings with exceptional temperature tolerance and frequency compatibility. Its ability to effectively suppress electromagnetic interference helps protect sensitive electronic equipment, improve system reliability, and comply with regulatory standards concerning electromagnetic emissions. Whether for industrial machinery, consumer electronics, or commercial devices, this EMI Interference Suppression Filter offers a robust and versatile solution to mitigate the challenges posed by EMI in modern electronic systems.

• Product Name: EMC EMI Filter
• Current Rating: 10A RMS Max
• Operating Frequency: 50/60Hz
• Line to Ground Voltage: 2000 VAC
• Voltage Rating: 115/250VAC
• Temperature Range: -25°C to +100°C
• Effective EMI Interference Suppression Filter for reducing electromagnetic noise
• High-performance EMI Suppression Filter designed for reliable operation
• Durable EMC ElectroMagnetic Interference Filter ensuring compliance with industry standards

This Interference Reduction Filter is designed to effectively minimize electromagnetic interference, ensuring reliable performance. As a high-quality Interference Reduction Filter, it operates efficiently within a broad temperature range and voltage ratings. The Interference Reduction Filter guarantees optimal current handling and provides robust protection in various electrical environments.

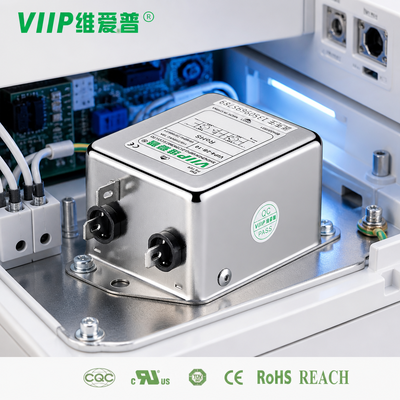

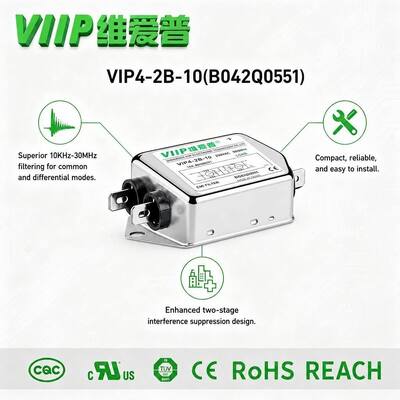

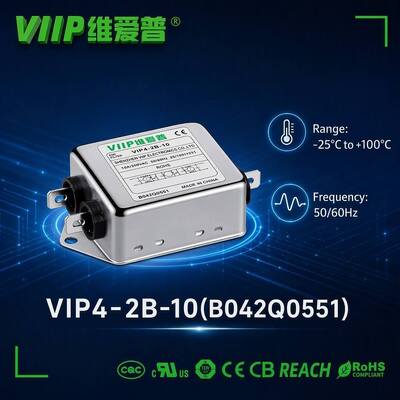

The Weiaipu EMC ElectroMagnetic Interference Filter, model VIP4-2B-10(B042Q0551), is an essential component designed to ensure the smooth operation of electrical and electronic equipment by effectively suppressing electromagnetic interference (EMI). Originating from ShenZhen, this filter complies with ROHS certification standards, guaranteeing environmentally friendly and safe usage. Its robust design, featuring a voltage rating of 115/250VAC and a current rating of 10A RMS max, makes it suitable for a wide range of applications where stable power supply and noise reduction are critical.

This EMC ElectroMagnetic Interference Filter is ideal for use in industrial automation systems, medical equipment, telecommunications devices, and consumer electronics, where minimizing EMI is crucial for maintaining device performance and safety. The filter operates efficiently within a temperature range of -25°C to +100°C and supports line-to-line voltage up to 500 VDC, making it highly reliable under varying environmental conditions. It is particularly effective in scenarios involving 50/60Hz operating frequencies, which are common in power supply networks worldwide.

In manufacturing environments, the Weiaipu VIP4-2B-10(B042Q0551) filter helps protect sensitive machinery from electrical noise generated by motors, inverters, and switching power supplies. Similarly, in office and home electronics, it prevents disturbances that can cause data loss or equipment malfunction. The compact packaging, with 120 pieces per carton, facilitates easy inventory management and bulk purchasing, with a minimum order quantity of just 10 units and a competitive price of 3 USD each. Delivery is typically within 4-6 weeks, with payment terms handled via T/T, ensuring a streamlined procurement process.

Overall, the Weiaipu EMC ElectroMagnetic Interference Filter is designed for diverse application occasions and scenarios where electromagnetic compatibility is paramount. Its high performance and reliability make it an excellent choice for engineers and technicians seeking to enhance the electromagnetic environment of their systems and devices, ensuring compliance with regulatory standards and improving operational stability.

Weiaipu offers customized EMI Suppression Filter solutions with the model number VIP4-2B-10(B042Q0551), designed and manufactured in ShenZhen. Our EMI Suppression Filter meets ROhs certification standards, ensuring high quality and environmental compliance.

The product features a voltage rating of 115/250VAC and a current rating of 10A RMS Max, suitable for various applications within a temperature range of -25°C to +100°C. The line-to-line voltage rating is 500 VDC, and it operates efficiently at a frequency of 50/60Hz.

Weiaipu's EMI Suppression Filter is available with a minimum order quantity of 10 units at a competitive price of 3 USD each. Packaging details include 120PCS per carton. Delivery time typically ranges from 4 to 6 weeks, with payment terms based on T/T.

Our product customization services ensure that each EMI Suppression Filter is tailored to meet your specific requirements, providing reliable performance and compliance with industry standards.

EMC EMI Filter Product Technical Support and Services

Our technical support team is dedicated to providing comprehensive assistance for all EMC EMI Filter products. We offer expert guidance on product selection, installation, and troubleshooting to ensure optimal performance and compliance with electromagnetic compatibility standards.

Services include:

• Pre-sales consultation to help identify the most suitable EMI filter solutions for your specific application requirements.
• Detailed technical documentation and datasheets to support product integration.
• Installation support to ensure correct mounting and wiring practices.
• Testing and validation assistance to verify filter effectiveness and compliance with relevant EMC regulations.
• After-sales support for maintenance, repair, and replacement services.
• Custom filter design services tailored to unique customer specifications.

Our commitment is to provide reliable and efficient technical support to maximize the performance and longevity of your EMC EMI Filter products.

Q1: What is the rated current and voltage of VIP4‑2B‑10?
A: Rated current is 10A RMS Max, rated voltage supports 115/250VAC, 50/60Hz single‑phase AC power supply.

Q2: What is the maximum leakage current for this filter?
A: Max 0.5mA at 115VAC/60Hz; max 1.0mA at 250VAC/50Hz, suitable for safety‑focused equipment.

Q3: What are the hip‑pot test specifications?
A: Line‑to‑Ground: 2000VAC for 1 minute; Line‑to‑Line: 500VDC for 1 minute. Insulation resistance ≥100MΩ under 500VDC.

Q4: What is its operating temperature range?
A: Operating temperature ranges from ‑25℃ to +100℃ for continuous working.

Q5: Can this filter help my product pass EMC test?
A: It offers good insertion loss for common‑mode & differential‑mode noise. Actual test result depends on whole‑system layout, grounding and wiring of your end device.
