VIP4-2B-10(B042Q0551) Single-Phase Power EMI Filter, EMC Anti-Interference Component for Industrial, Medical Equipment to Suppress Conducted Power Noise with Stable Low Leakage Current Performance

Brand Name:	Weiaipu VIIP
Model Number:	VIP4-2B-10 (B042Q0551)
MOQ:	80
Price:	12.731$
Packaging Details:	neutral
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CB UL CQC RoHS REACH

Voltage Rating:

115/250VAC

Current Rating:

10A RMS Max

Operating Frequency:

50/60Hz

Line To Ground:

2000 VAC

Line To Line:

500 VDC

Temperature Range:

-25°C~+100°C

Supply Ability:

30K/MONTH

Highlight:

Single-Phase Power EMI Filter

EMC Anti-Interference Component

Industrial Medical Equipment EMI Filter

Product Description

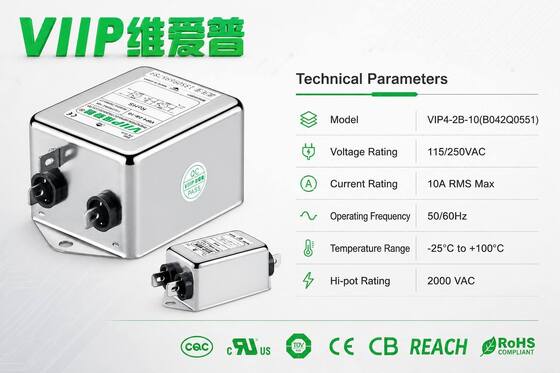

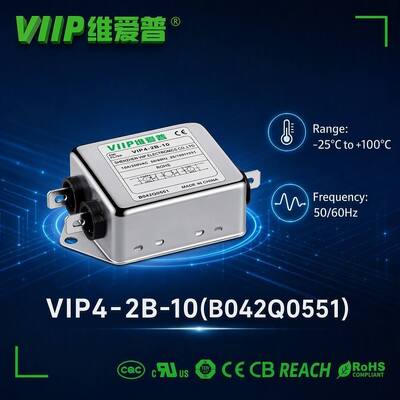

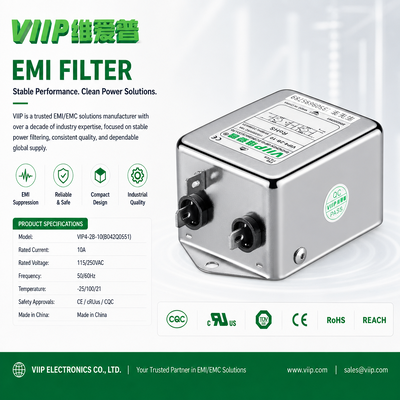

VIP4-2B-10(B042Q0551) Single-Phase Power EMI Filter

Product Brief

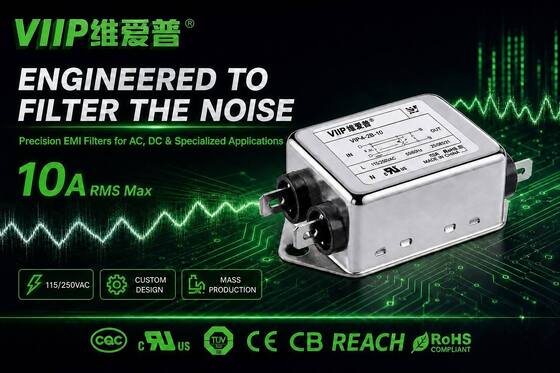

VIP4-2B-10 is a two-stage LC single-phase EMI power filter with 10A rated current for 115/250VAC, 50/60Hz power supply. It provides excellent attenuation for both common-mode and differential-mode conducted noise. Designed with low leakage current, high hi-pot strength and insulation resistance ≥100MΩ@500VDC, it operates stably within -25℃ to +100℃. This compact filter helps finished products meet EMC requirements effectively.

Application Scope

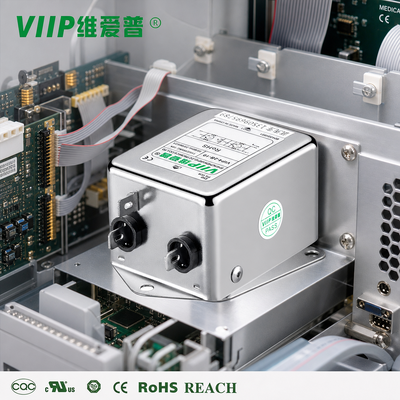

Widely applied in industrial automation equipment, medical instruments, new-energy control units, precision measuring instruments, office automation devices and general electronic systems with single-phase AC power input.

Purpose & Usage

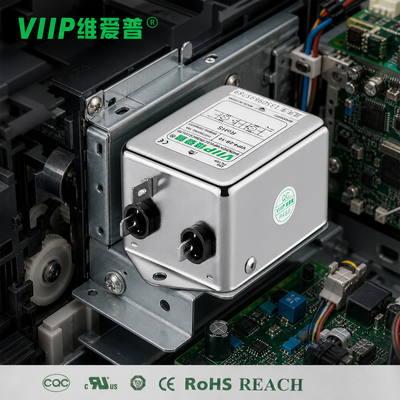

Installed on the AC power input port of electronic equipment to suppress power-line conducted interference, block external noise from entering devices and prevent internal noise from feeding back to mains grid. Assists end products in passing EMC compliance tests.

Frequently Asked Questions

What is the rated current and voltage of VIP4-2B-10?

Rated current is 10A RMS Max, rated voltage supports 115/250VAC, 50/60Hz single-phase AC power supply.

What is the maximum leakage current for this filter?

Max 0.5mA at 115VAC/60Hz; max 1.0mA at 250VAC/50Hz, suitable for safety-focused equipment.

What are the hip-pot test specifications?

Line-to-Ground: 2000VAC for 1 minute; Line-to-Line: 500VDC for 1 minute. Insulation resistance ≥100MΩ under 500VDC.

What is its operating temperature range?

Operating temperature ranges from -25℃ to +100℃ for continuous working.

Can this filter help my product pass EMC test?

It offers good insertion loss for common-mode & differential-mode noise. Actual test result depends on whole-system layout, grounding and wiring of your end device.
