The EMC EMI Filter is a high-performance EMI Suppression Filter designed to provide exceptional interference reduction in electrical and electronic systems. Engineered to meet rigorous industry standards, this filter is ideal for applications requiring reliable suppression of electromagnetic interference to ensure optimal device operation and compliance with regulatory requirements. With a voltage rating of 115/250VAC, the EMC EMI Filter is versatile and suitable for a wide range of power supply environments, making it an essential component in both residential and industrial settings.

One of the standout features of this EMI Interference Suppression Filter is its robust temperature range, operating efficiently from -25°C to +100°C. This broad temperature tolerance ensures that the filter maintains its performance and reliability even under harsh environmental conditions, such as extreme cold or elevated heat. This characteristic makes it particularly valuable for use in outdoor equipment, industrial machinery, and other applications where temperature fluctuations are common.

In terms of electrical performance, the EMC EMI Filter boasts a current rating of 6A RMS Max, allowing it to handle substantial current loads without compromising its filtering capabilities. The filter is optimized to function effectively at the standard operating frequency of 50/60Hz, which is typical for most AC power systems worldwide. This ensures that the filter can be seamlessly integrated into existing power infrastructures without the need for additional modifications or adjustments.

The line-to-line voltage withstand capability of the filter is rated at 1450 VDC, underscoring its ability to endure high-voltage stresses and transient surges without damage. This attribute enhances the durability and longevity of the filter, providing stable EMI suppression over extended periods of operation. By effectively attenuating unwanted electromagnetic noise, the filter helps to protect sensitive electronic components from interference that could otherwise lead to malfunctions, data loss, or degraded performance.

As an Interference Reduction Filter, the EMC EMI Filter plays a crucial role in enhancing the electromagnetic compatibility (EMC) of electronic systems. By minimizing conducted and radiated emissions, it contributes to a cleaner electromagnetic environment, reducing the risk of cross-device interference and improving overall system stability. This is particularly important in complex electronic assemblies, medical devices, telecommunications equipment, and consumer electronics, where maintaining signal integrity is paramount.

Installing the EMC EMI Filter is straightforward due to its compact design and standardized voltage and current ratings. Its reliable construction ensures consistent performance over time, making it a cost-effective solution for manufacturers and system integrators looking to comply with stringent EMI regulations. Additionally, the filter’s capacity to operate efficiently across a wide temperature range and handle standard AC frequencies makes it adaptable to diverse application scenarios.

In summary, the EMC EMI Filter is a superior EMI Interference Suppression Filter that delivers comprehensive EMI suppression, interference reduction, and enhanced electromagnetic compatibility. With a voltage rating of 115/250VAC, a current rating of 6A RMS Max, and the ability to operate within -25°C to +100°C, this filter meets the demands of modern electrical systems. Its capability to withstand line-to-line voltages of up to 1450 VDC and operate at 50/60Hz further underscores its robustness and reliability. Whether used in industrial, commercial, or residential applications, the EMC EMI Filter ensures that electronic devices perform optimally by effectively mitigating electromagnetic interference.

• Product Name: EMC EMI Filter
• Operating Frequency: 50/60Hz
• Temperature Range: -25°C to +100°C
• Current Rating: 6A RMS Max
• Line to Line Voltage: 1450 VDC
• Line to Ground Voltage: 2000 VAC
• Designed as an effective EMI Suppression Filter for reducing electromagnetic interference
• Reliable EMI Suppression Filter performance ensures stable operation in various environments
• High-quality EMI Suppression Filter suitable for industrial and commercial applications

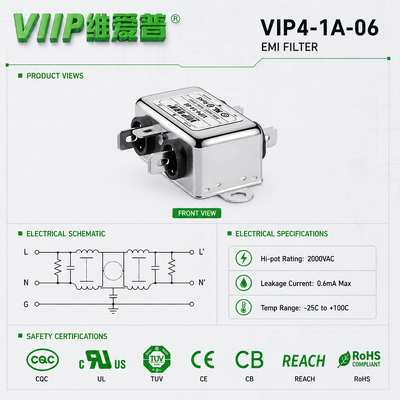

The Weiaipu EMC ElectroMagnetic Interference Filter, model VIP4-1A-06(10243), is an essential component designed to ensure the smooth operation of electrical and electronic devices by effectively reducing electromagnetic interference (EMI). Manufactured in ShenZhen and certified with ROHS, this EMI Suppression Filter offers reliable performance with a voltage rating of 115/250VAC and a current rating of 6A RMS max. Its robust design supports line-to-line voltage withstand of 1450 VDC and line-to-ground voltage of 2000 VAC, making it suitable for a wide range of applications.

This EMI Interference Suppression Filter is widely used in various industrial and commercial scenarios where electromagnetic compatibility is crucial. It is ideal for integration into power supplies, industrial automation equipment, medical devices, telecommunications infrastructure, and consumer electronics. The filter’s ability to operate efficiently within a temperature range of -25°C to +100°C ensures stable performance even in harsh environments, such as factory floors or outdoor installations.

Owing to its compact and durable packaging of 120PCS per carton and a competitive price of 3 USD per unit, the VIP4-1A-06(10243) model is well-suited for manufacturers and system integrators requiring bulk quantities with a minimum order of 10 units. The typical delivery time of 4-6 weeks and convenient payment terms via T/T further support timely project implementation and procurement planning.

In practical terms, this EMC ElectroMagnetic Interference Filter is perfect for use in scenarios where reducing EMI is critical to maintaining signal integrity and preventing malfunction. Examples include industrial control panels, audio and video equipment, computer peripherals, and household appliances. By incorporating this EMI Suppression Filter, engineers can significantly reduce noise and interference, ensuring compliance with electromagnetic compatibility standards and enhancing overall system reliability.

Whether deployed in a manufacturing plant, a telecommunications hub, or an advanced medical facility, the Weiaipu VIP4-1A-06(10243) EMI Interference Suppression Filter provides a dependable solution to electromagnetic interference challenges, helping to safeguard sensitive electronics and improve operational efficiency across diverse application occasions.

Weiaipu offers professional product customization services for the EMC ElectroMagnetic Interference Filter model VIP4-1A-06(10243), designed to meet your specific needs. Originating from ShenZhen, this EMI Suppression Filter is certified with ROhs, ensuring high quality and environmental compliance.

This Interference Reduction Filter features a current rating of 6A RMS max, a voltage rating of 115/250VAC, and a line-to-line voltage of 1450 VDC. It operates efficiently within a temperature range of -25°C to +100°C and supports an operating frequency of 50/60Hz.

Weiaipu provides flexible ordering options with a minimum order quantity of 10 units and competitive pricing at 3 USD per unit. Each order is carefully packaged with 120PCS per carton to ensure safe delivery. The typical delivery time is 4-6 weeks, and payment terms are based on T/T.

Our customization services allow you to tailor the EMC ElectroMagnetic Interference Filter to your application requirements, enhancing interference reduction and EMI suppression for optimal performance in your electronic systems.

EMC EMI Filters are designed to suppress electromagnetic interference and ensure the smooth operation of electronic equipment. For technical support and services related to our EMC EMI Filter products, we provide comprehensive assistance including installation guidance, troubleshooting, and maintenance advice.

Our technical support team is equipped to help you select the appropriate EMC EMI Filter for your specific application, ensuring compliance with relevant standards and optimal performance. We offer detailed product documentation, including datasheets, wiring diagrams, and application notes to facilitate seamless integration.

In case of any operational issues or performance concerns, our experts can assist with diagnostics and recommend corrective measures. We also provide repair and replacement services under the product warranty terms.

For customized filter solutions or special requirements, our engineering team can collaborate with you to develop tailored products that meet your unique needs.

We are committed to delivering high-quality support and services to maximize the reliability and efficiency of your EMC EMI Filter installations.

FAQ:

Q1: What is the insertion loss performance of VIP4‑1A‑06(10243)?
A: Tested under 50‑ohm system, it delivers great attenuation for both common‑mode and differential‑mode noise within 0.15‑30 MHz frequency range. The above insertion‑loss data is for reference only for your EMC evaluation.
Q2: What hi‑pot voltage does VIP4‑1A‑06(10243) withstand for 1‑minute test?
A: Line‑to‑ground: 2000 VAC; Line‑to‑line:1450 VDC. Its insulation resistance reaches 100 MΩ minimum at 500 VDC between input/output and ground.
Q3: What is the leakage current of VIP4‑1A‑06(10243)?
A: Per line‑to‑ground, max leakage current is 0.3 mA under 115VAC/60Hz, and 0.6 mA under 250VAC/50Hz.

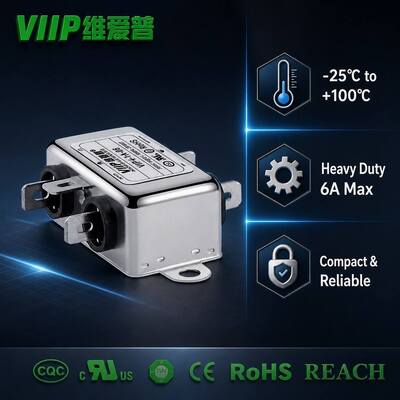

Q4: What is the operating temperature range for VIP4‑1A‑06(10243)?
A: The operating temperature ranges from ‑25 ℃ to +100 ℃, it can maintain stable electrical performance under normal cabinet working conditions.

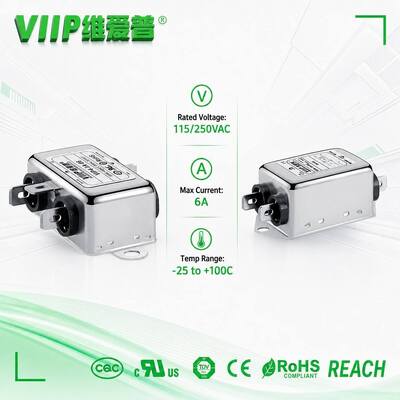

Q5: What are the rated voltage and current parameters of VIP4‑1A‑06(10243)?
A: Rated voltage is 115/250VAC, rated current is 6A RMS Max, operating frequency is 50/60Hz for AC mains application.
