VIP1-1A-03 EMC EMI Filter RF Interference Suppressor with 3A RMS Max Wide Temperature Range and Low Leakage Current

Brand Name: Weiaipu VIIP
Model Number: VIP1-1A-03(10328)
MOQ: 245
Price: 3~5USD
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen
Certification:
CB UL CQC CE ROHS REACH
Temperature Range:
-25℃~+100℃
Voltage Rating:
115/250VAC
Current Rating:
3A RMS Max
Line To Line:
1450VDC
Line To Ground:
2000VAC
Leakage Current:
2μA @115VAC/60Hz, 5μA @250VAC/50Hz
Supply Ability:
30K/MONTH
Highlight:

3A RMS Max EMC EMI Filter

,

Wide Temperature Range RF Interference Suppressor

,

Low Leakage Current Surge Reduction Module

Product Description
VIP1-1A-03 (10328) IEC Outlet RF Interference Suppressor Single Line Surge Reduction Module
Product Overview

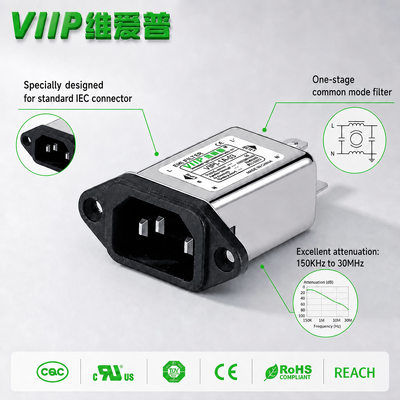

VIP1-1A-03(10328) is a one-stage common-mode single-phase EMC power filter with built-in standard IEC inlet. Rated for 115/250VAC and 3A RMS, it operates at 50/60Hz power frequency. This compact IEC-integrated structure enables quick installation with high cost-efficiency.

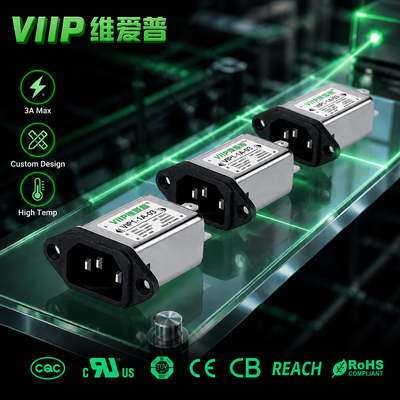

VIP1-1A-03 EMC power filter product view
Applications
  • Household electrical appliances
  • Laboratory & precision measuring instruments
  • Small-size industrial control equipment
  • Test & measurement devices
  • Office electronic equipment
  • Suitable for equipment requiring suppression of conducted electromagnetic interference on AC power lines

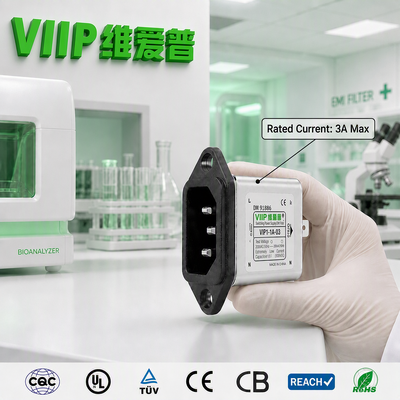

VIP1-1A-03 filter application examples
Technical Specifications
Voltage Rating 115/250VAC
Current Rating 3A RMS Max. @115VAC and 250VAC
Operating Frequency 50/60Hz
Leakage Current (Line to Ground) 2 μA Max. @115VAC/60Hz
5 μA Max. @250VAC/50Hz
Hi-pot Rating (1 Minute) Line to Ground: 2000 VAC
Line to Line: 1450 VDC
Insulation Resistance 100M ohm @500VDC (Input/Output to Ground)
Temperature Range -25℃ to +100℃

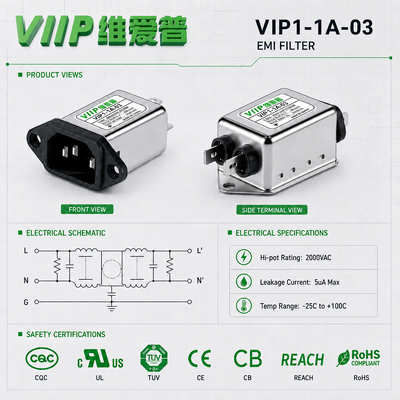

VIP1-1A-03 technical diagram and specifications
Features & Benefits
  • Low leakage current design
  • High-voltage withstand capability
  • Wide operating temperature range (-25℃ to +100℃)
  • Excellent common-mode and differential-mode noise attenuation (150kHz-30MHz)

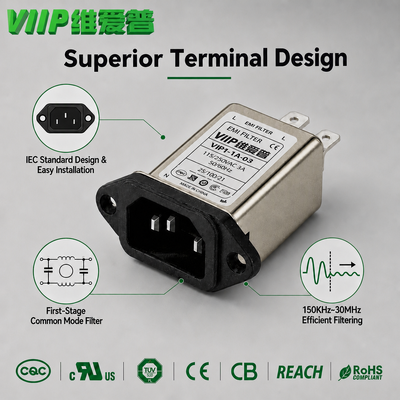

  • Available with wire or solder-lug output terminals
  • Compliant with CQC, UL, CE, RoHS and REACH standards
  • Optional medical-grade H-type version available
  • Custom modification support upon request
Frequently Asked Questions
Q: What is the rated current and voltage of VIP1-1A-03(10328)?
A: Rated voltage is 115/250VAC, rated current is 3A RMS Max, working frequency 50/60Hz.
Q: What are the output terminal options for this filter?
A: Two output styles are available: wire lead terminals or solder lug terminals. Select according to your cabinet wiring requirements.
Q: How about the leakage current of VIP1-1A-03(10328)?
A: Maximum leakage current is 2μA @115VAC/60Hz, 5μA @250VAC/50Hz. Low leakage design is suitable for precision and medical-related applications.
Q: What is the operating temperature range of this filter?
A: Operating temperature ranges from -25℃ to +100℃, providing stable performance for normal indoor equipment working environments.
Q: Can I get medical-grade version or customized modification for this model?
A: Yes. Medical-special H-type version is optional. We also support custom-specific versions according to your technical requirements.
