6A Rated Current 250VAC Rated Voltage EMI Power Line Filter with Ultra-Low Leakage Current for IT Telecom Medical Devices

Brand Name:	Weiaipu VIIP
Model Number:	VIP1-1E-06 (B011X0412)
MOQ:	112
Price:	9.53$
Packaging Details:	neutral
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CB UL CQC

Dimensions:

60*28.5mm

Rated Current:

6A RMS

Rated Voltage:

115/250VAC

Leakage Current:

≤2μA@115VAC/60Hz, ≤5μA@250VAC/50Hz

Insulation Resistance:

>100MΩ At 500VDC

Operating Temperature:

-25°C To +100°C

Supply Ability:

30K/MONTH

Highlight:

6A Rated Current EMI Power Line Filter

250VAC Rated Voltage EMC EMI Filter

Ultra-Low Leakage Current IEC Inlet EMI Filter

Product Description

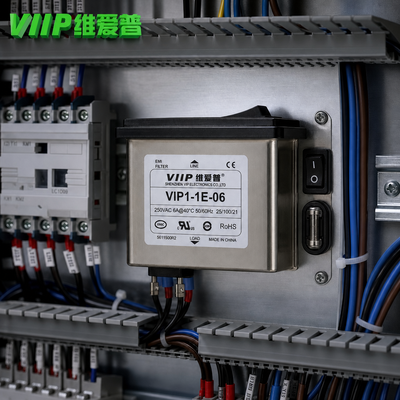

VIP1‑1E‑06 (B011X0412) EMI Power Line Interference Suppressor

60×28.5mm EMI filter for IT, telecom, medical, test-measurement, and household electronic devices

Product Overview

VIP1‑1E‑06 (B011X0412) is a 3-in-1 IEC inlet EMI power filter from Weiaipu, featuring an integrated dual-fuse compact structure with overall dimensions of 60×28.5mm. This panel-mount module combines standard IEC power socket, dual-fuse over-current protection, and professional EMC filtering circuit, complying with RoHS and REACH requirements.

Rated for maximum 6A RMS current and 115/250VAC voltage, this filter fits global 50/60Hz power systems. It achieves ultra-low leakage current of ≤2μA@115VAC/60Hz and ≤5μA@250VAC/50Hz for safe operation of precision electronics. With insulation resistance above 100MΩ at 500VDC and qualified hi-pot performance, it operates reliably within a wide temperature range from -25°C to +100°C.

With outstanding common-mode and differential-mode interference suppression capability, it effectively removes conductive power-line electromagnetic disturbance, stabilizes power signal, and protects internal circuits. Dual independent fuses provide dual-channel over-current and short-circuit protection to enhance equipment safety. Fast-on terminals support easy wiring, and panel-mount design saves cabinet installation space, helping finished products pass EMC compliance tests.

Applications

This EMI filter is widely applicable to the following electronic devices:

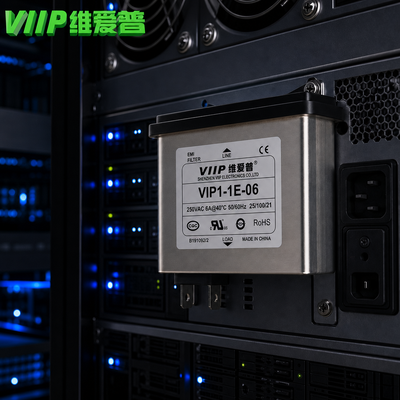

IT and Telecommunication equipment

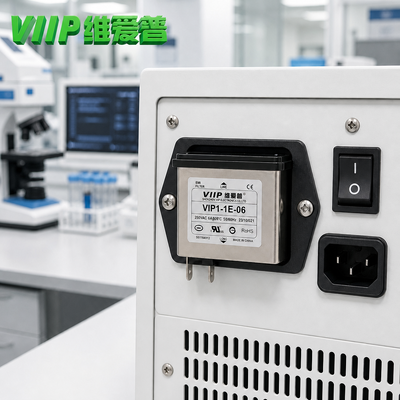

Medical equipment
Instruments and meters
Household small tools
Test and measurement equipment
Electronic equipment requiring connection of standard plug

It eliminates power line electromagnetic interference for the above devices, stabilizes power supply signal, and prevents abnormal operation caused by EMI disturbance.

Manufacturer Information

Shenzhen VIIP Electronics Co., Ltd. is a national high-tech enterprise specializing in electromagnetic compatibility (EMC). The company has been recognized as a "Specialized, Refined, and Innovative" SME and an Innovative Small and Medium-sized Enterprise.

Main products include anti-interference magnetic cores, magnetic beads, TVS discharge tubes, inductors, and power line filters. These products are widely used in household appliances, IT & AV equipment, power amplifiers, audio systems, stage lighting, LED displays, various cables and wires, power supplies, new energy charging piles, new energy storage products, industrial equipment, medical devices, laser automation products, communication equipment, telecommunications and digital industrial control products, instrumentation, and power tools.

The company operates three major manufacturing bases in Huizhou, Bozhou, and Huzhou, equipped with advanced production lines, potting equipment, and product testing equipment. Our power line filter series complies with safety certifications including CQC, UL, TUV, CE, and CB, with all products meeting RoHS and REACH environmental requirements.

We offer a comprehensive range of models and specifications with current ratings from 1A to 3000A, covering IEC socket-type, single-phase, three-phase, feedthrough, and PCB-mounted types. Custom designs and manufacturing are available according to customers' special requirements.

The company maintains its own EMC laboratory and deep cooperation with third-party testing institutions, enabling free EMC testing and rectification services. Representative clients include Xiaomi, DJI, Kuma, Baima, Topband, and Creality 3D.

Most products are exported to Europe, the United States, South Korea, Japan, Southeast Asia, and other regions.
