IEC Inlet Socket EMI Power Filter 6A Rated Current 250VAC Rated Voltage Fast-on Terminal Power Line Filter for Electronic Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

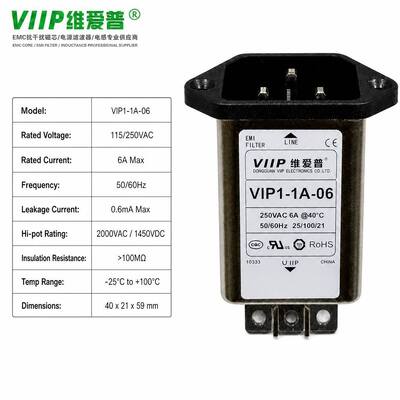

IEC Inlet Socket EMI Power Filter 6A Rated Current 250VAC Rated Voltage Fast-on Terminal Power Line Filter for Electronic Equipment

Brand Name:	Weiaipu
Model Number:	VIP1-1A-06(B011X0477)
MOQ:	245PCS
Price:	USD4.5
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CE RoHS UL TUV CB

Port:

Shenzhen

Rated Voltage:

115/250VAC

Operating Frequency:

50/60Hz

Standardscompliance:

CE, CQC, UL, TUV, RoHS

Withstand Voltage:

2000VAC /1450VDC

Insulationresistance:

≥100MΩ At 500V DC

Stopband Attenuation:

20~100dB

Termination Style:

Fast‑on Terminal

Product Type:

Power Line Filters

Case:

Metal

Supply Ability:

30K/month

Highlight:

6A Rated Current EMI Power Filter

250VAC Rated Voltage Power Line Filter

Fast-on Terminal EMC Noise Suppression Filter

Product Description

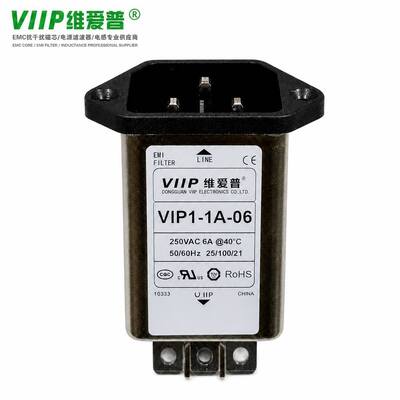

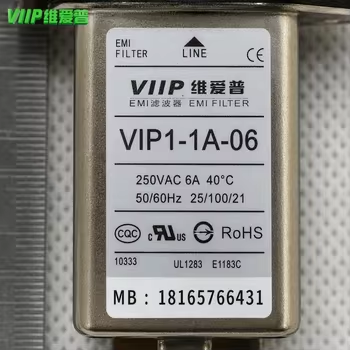

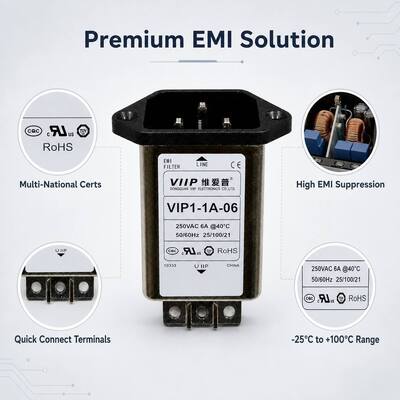

IEC Inlet Socket EMI Power Filter VIP1-1A-06

High-performance EMI power filter designed for electronic equipment, providing effective EMC noise suppression and power line filtering.VIP1-1A-06 IEC socket EMI filter integrates power inlet and filtering function. Rated 6A 115/250VAC, it efficiently attenuates power line common & differential mode noise. Featuring low leakage current, high insulation strength and metal shielding shell, this front panel mount filter passes multiple international safety certifications. Suitable for medical, industrial and precision electronic devices to optimize EMC performance under wide working temperature.

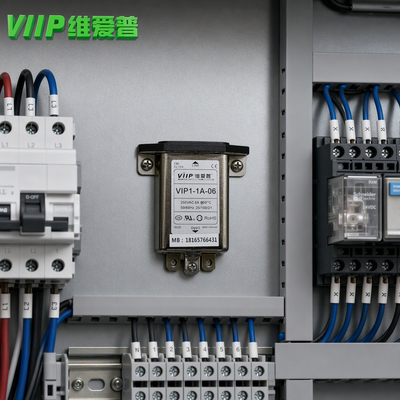

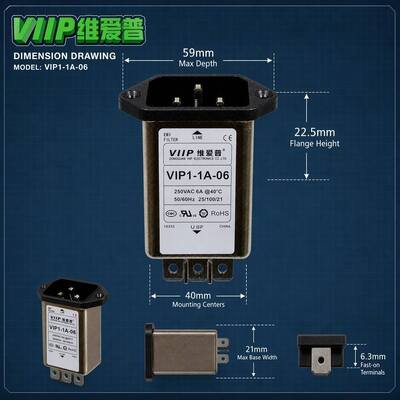

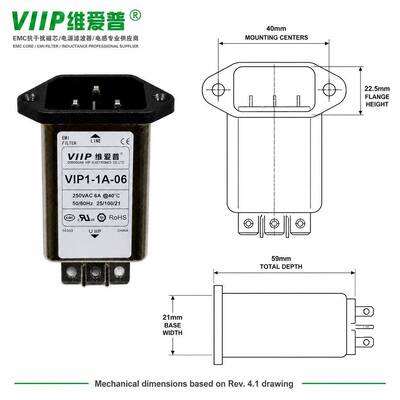

Overall Product Dimensions (Unit: mm)

Dimension Description	Specification
Max Overall Length	40
Max Overall Height	59
Max Bottom Terminal Width	28.5
Max Product Thickness	21
Mounting Flange Height	22.5
IEC Socket Area Width	30.3
Flange Mounting Holes	2×Ø3.3
Panel Protrusion Height	4.8
Flange Plate Thickness	1.5
Output Terminal Type	6.3mm Fast-on Tab, Tab Thickness T=0.8mm

Recommended Panel Cutout Size (Front Mount, Unit: mm)

Cutout Item	Specification
Total Cutout Length	40±0.1
Cutout Width	28.8±0.1
Cutout Height	21.6±0.1
Max Corner Radius of Cutout	4×R3 Max
Minimum Diameter of Fixing Holes	2×Ø3.5 Min

Electrical Characteristics

Parameter Name	Technical Specification
Rated Voltage	115/250VAC
Rated Current (115VAC / 250VAC)	6A RMS Max.
Standard Operating Frequency	50/60Hz
Max Leakage Current @ 115VAC/60Hz	≤0.3mA
Max Leakage Current @ 250VAC/50Hz	≤0.6mA
Withstand Voltage Test Condition	Line-to-Line 2000VAC, test duration 1 minute
Insulation Resistance	≥100MΩ @ 500VDC (Input / Output to Ground)
Operating Temperature Range	-25°C ~ +100°C

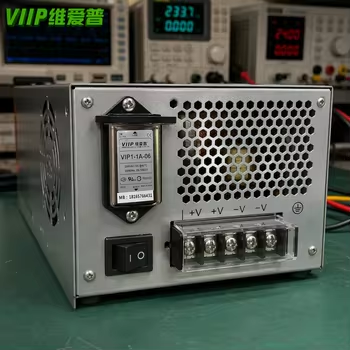

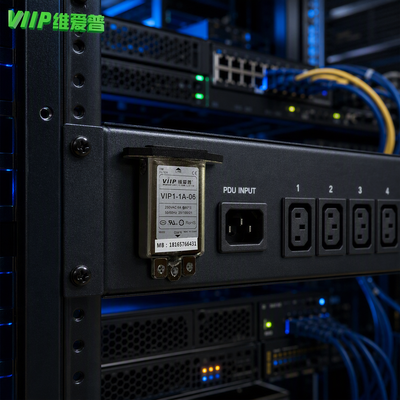

Applications
IT Equipment
Telecommunication Equipment
Medical Equipment

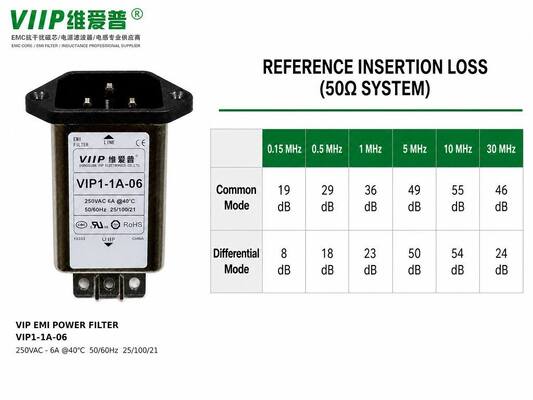

Insertion Loss under 50Ω Test System (Unit: dB)

Interference Mode	Attenuation Values
Common Mode	29, 36, 49, 55, 46
Differential Mode	8, 18, 23, 50, 54, 24
Remark	All test data above for reference only
