Product Description:

The EMC EMI Filter is a highly efficient EMI Interference Suppression Filter designed to provide superior protection against electromagnetic interference in various electrical and electronic applications. Operating within a temperature range of -25°C to +100°C, this filter is engineered to maintain optimal performance even under demanding environmental conditions, ensuring reliable operation and longevity.

Rated for a maximum current of 6A RMS, this EMI Suppression Filter is ideal for use in systems requiring robust interference reduction without compromising electrical integrity. Its design supports an operating frequency of 50/60Hz, making it compatible with standard power supply frequencies worldwide. This versatility ensures that the filter can be seamlessly integrated into a wide range of devices and systems to effectively mitigate EMI issues.

One of the critical features of this Interference Reduction Filter is its low maximum leakage current, rated at just 0.3mA at 115VAC and 0.6mA at 250VAC. This characteristic is essential for minimizing unwanted current flow that could otherwise lead to power loss or safety hazards, thereby enhancing the overall efficiency and safety of the electrical system in which the filter is installed.

To guarantee high safety standards and reliability, the EMC EMI Filter has undergone stringent Hi-pot testing. It withstands a line-to-ground voltage of 2000VAC and a line-to-line voltage of 500VAC without failure. This rigorous testing certifies that the filter provides excellent insulation and protection against voltage surges and spikes, which are common sources of electromagnetic interference.

This EMI Suppression Filter is particularly effective in environments where electromagnetic interference can disrupt the performance of sensitive equipment. By incorporating this filter, manufacturers and engineers can ensure compliance with EMC regulations, improve product reliability, and reduce the risk of malfunction caused by EMI. The filter's compact and durable construction further contributes to its ease of installation and long-term operational stability.

In summary, the EMC EMI Filter stands out as a reliable and efficient solution for electromagnetic interference challenges. Its wide temperature tolerance, suitable rated current capacity, low leakage current, and proven high-voltage withstand capability make it an indispensable component for modern electrical and electronic systems. Whether for industrial, commercial, or consumer applications, this Interference Reduction Filter offers exceptional EMI suppression performance, safeguarding equipment and enhancing overall system integrity.

Features:

• Product Name: EMC EMI Filter
• Type: Interference Reduction Filter, EMC ElectroMagnetic Interference Filter, EMI Suppression Filter
• Hi-pot Test: Line To Ground: 2000VAC; Line To Line: 500VAC
• Rated Current: 6A RMS MAX
• Rated Voltage: 115/250VAC
• Maximum Leakage Current: 0.3mA @ 115VAC / 0.6mA @ 250VAC
• Operating Temperature Range: -25°C to +100°C

Technical Parameters:

Applications:

The Weiaipu EMC ElectroMagnetic Interference Filter, model VIP1-1A-06 (B011X1222), is an essential component designed to enhance the performance and reliability of electronic devices by effectively suppressing electromagnetic interference. Manufactured in ShenZhen and certified by ROHS, this EMI Suppression Filter is ideal for various application occasions and scenarios where electromagnetic compatibility is critical.

One of the primary application occasions for the Weiaipu EMI Interference Suppression Filter is in industrial automation systems. These environments often involve numerous electrical devices operating simultaneously, which can generate significant EMI noise. Installing the VIP1-1A-06 filter helps reduce interference between equipment, ensuring smooth operation and minimizing downtime caused by electromagnetic disturbances.

Another common scenario for this EMC ElectroMagnetic Interference Filter is in consumer electronics such as computers, audio equipment, and home appliances. The filter's rated current of 6A RMS max and rated voltage of 115/250VAC make it suitable for protecting sensitive electronic circuits from unwanted noise and voltage spikes, thereby improving device longevity and reliability. Its maximum leakage current of 0.3mA@115VAC and 0.6mA@250VAC ensures safety in household environments.

In communication systems, where signal integrity is paramount, the EMI Suppression Filter plays a crucial role in mitigating EMI that can affect data transmission quality. The VIP1-1A-06 filter supports operating frequencies of 50/60Hz and has undergone rigorous Hi-pot testing with Line to Ground at 2000VAC and Line to Line at 500VAC, ensuring excellent insulation and durability under demanding conditions.

The filter is also widely used in medical equipment, where electromagnetic interference can disrupt sensitive measurements and operations. Its reliable performance and compliance with international standards make it an ideal choice for environments requiring stringent EMI control.

With a minimum order quantity of 10 units and an affordable price of 3 USD each, the Weiaipu VIP1-1A-06 is packaged efficiently with 120 pieces per carton. Delivery time ranges from 4 to 6 weeks, with payment terms based on T/T, making it convenient for businesses to procure and integrate into their manufacturing processes.

Overall, the Weiaipu EMC ElectroMagnetic Interference Filter (VIP1-1A-06) is a versatile and dependable solution for EMI suppression across a wide range of applications, including industrial, consumer, communication, and medical sectors, ensuring optimal electromagnetic compatibility and device performance.

Customization:

Weiaipu offers customized EMC EMI Filter solutions with the model number VIP1-1A-06 (B011X1222), proudly made in ShenZhen. Our EMI Suppression Filter is designed to operate efficiently at a frequency of 50/60HZ, with a rated current of 6A RMS MAX and a rated voltage of 115/250VAC, ensuring reliable performance in various applications.

Certified with ROHS, this EMC ElectroMagnetic Interference Filter undergoes a stringent Hi-pot test with Line To Ground at 2000VAC and Line To Line at 500VAC, guaranteeing superior safety and durability. It operates within a wide temperature range of -25°C to +100°C, making it suitable for diverse environments.

Weiaipu's Interference Reduction Filter is available with a minimum order quantity of 10 units, priced competitively at 3 USD each. Packaging is done meticulously with 120PCS per carton to ensure safe delivery.

Delivery time is estimated between 4-6 weeks, with payment terms via T/T for your convenience. Trust Weiaipu to provide high-quality, customizable EMC EMI Filters tailored to your specific needs for effective electromagnetic interference suppression and enhanced system performance.

Support and Services:

EMC EMI Filters are designed to suppress electromagnetic interference and ensure compliance with international EMC standards. Our technical support team provides comprehensive assistance for installation, troubleshooting, and optimizing filter performance in various applications.

We offer detailed product documentation, including datasheets, wiring diagrams, and application notes to help you integrate EMC EMI Filters seamlessly into your systems. Our experts can guide you on selecting the appropriate filter based on your voltage, current, and frequency requirements.

For service and maintenance, we recommend regular inspection of filter connections and surrounding environments to maintain optimal filtering efficiency. Replacement parts and upgrade options are available to extend the lifespan of your EMI filtering solutions.

Should you encounter any issues, our support team is ready to assist with diagnostic procedures and corrective measures to minimize downtime and enhance electromagnetic compatibility in your equipment.

FAQ:

Q1: What applications is VIP1‑1A‑06(B011X1222) EMI power line suppressor suitable for?
A1: It fits for telecommunication, IT device, medical apparatus, test & measurement instruments, meters and household small tools, works for most standard‑plug electronic equipment.
Q2: What is the physical size of this EMI disturbance suppressor model VIP1‑1A‑06(B011X1222)?

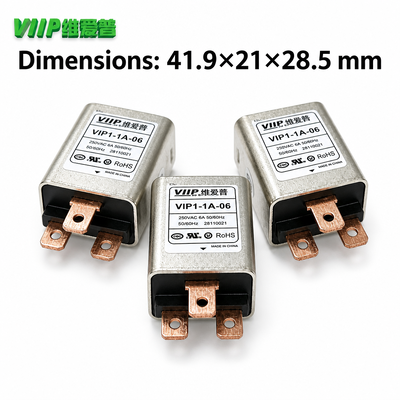

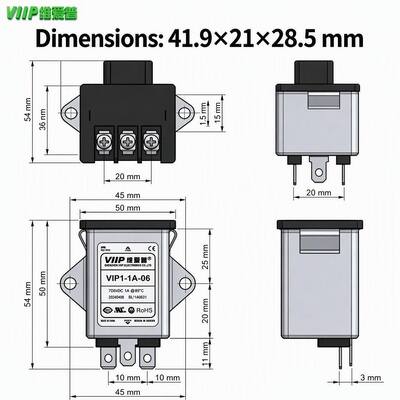

A2: Its overall dimension is 41.9×21×28.5 mm, compact structure for limited installation space of electronic devices.
Q3: What problem can this power‑line interference suppressor solve for my equipment?
A3: It restrains power‑grid electromagnetic disturbance, stabilizes power signal, protects circuit and improves anti‑interference performance of your electronic apparatus.
Q4: Is VIP1‑1A‑06(B011X1222) compatible with medical and test‑measurement devices?
A4: Yes. This electromagnetic disturbance eliminator supports medical equipment as well as test meters, meets interference‑suppression demand of precision electronic units.
Q5: Is this EMI suppressor easy to mount on standard plug‑in electronic gear?
A5: Adopt space‑saving construction for quick installation. It can be assembled on most household, telecom and industrial standard‑plug electronic devices.
