Product Description:

The EMC EMI Filter is a high-performance EMI Suppression Filter designed to effectively reduce electromagnetic interference in various electrical and electronic applications. Engineered to meet rigorous industry standards, this EMC ElectroMagnetic Interference Filter ensures optimal protection and reliable operation of sensitive devices by minimizing the impact of unwanted noise and disturbances in power lines.

Rated at a maximum current of 6A RMS, this EMI Suppression Filter is suitable for a wide range of applications that require efficient filtering within moderate current limits. The filter operates reliably within a broad temperature range of -25°C to +100°C, making it versatile enough to function in diverse environmental conditions without compromising performance or durability.

One of the critical features of this EMC ElectroMagnetic Interference Filter is its low maximum leakage current, measured at 0.3mA when operating at 115VAC and 0.6mA at 250VAC. This low leakage current ensures safety and compliance with stringent regulatory requirements, reducing the risk of electrical shock and enhancing overall system reliability.

Designed to function effectively at standard power frequencies of 50/60Hz, the EMI Suppression Filter is ideal for use in both residential and industrial electrical systems. Its ability to suppress interference at these frequencies helps to maintain the integrity of power signals, thereby safeguarding sensitive electronic equipment from potential damage caused by electromagnetic disturbances.

Safety and quality are further ensured through rigorous Hi-pot testing, with the filter undergoing a Line To Ground test at 2000VAC and a Line To Line test at 500VAC. These tests verify the insulation strength and electrical isolation capabilities of the EMC ElectroMagnetic Interference Filter, confirming its suitability for demanding electrical environments and its compliance with international safety standards.

In summary, this EMC EMI Filter offers an effective solution for mitigating electromagnetic interference through its robust design, reliable performance, and comprehensive safety features. Its 6A RMS rated current capacity, wide operating temperature range, low leakage current, and proven high-voltage withstand capability make it an essential component in enhancing the electromagnetic compatibility of various electrical systems. Whether for industrial machinery, consumer electronics, or telecommunications equipment, this EMI Suppression Filter provides dependable noise reduction and improved system stability.

By integrating this EMC ElectroMagnetic Interference Filter into your electrical setup, you ensure enhanced protection against EMI-related disruptions, contributing to longer equipment lifespan and improved operational efficiency. The combination of its technical specifications and stringent testing results makes this filter an optimal choice for engineers and designers aiming to achieve superior electromagnetic compatibility and compliance with regulatory standards.

Features:

• Product Name: EMC EMI Filter
• Rated Current: 6A RMS MAX
• Rated Voltage: 115/250VAC
• Hi-pot Test: Line To Ground: 2000VAC; Line To Line: 500VAC
• Operating Frequency: 50/60HZ
• Temperature Range: -25°C to +100°C
• Effective Interference Reduction Filter for minimizing electromagnetic disturbances
• High-performance EMC ElectroMagnetic Interference Filter ensuring compliance with EMC standards
• Designed as a reliable Interference Reduction Filter to enhance device stability and performance

Technical Parameters:

Applications:

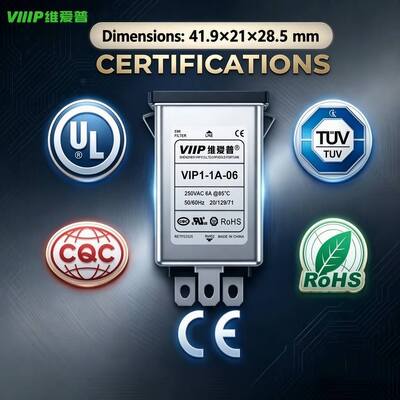

The Weiaipu VIP1-1A-06 (B011X1222) EMI Suppression Filter is an essential component designed to effectively reduce electromagnetic interference in a wide range of electrical and electronic applications. Manufactured in Shenzhen and certified with ROHS, this EMC ElectroMagnetic Interference Filter ensures compliance with international environmental standards while delivering reliable performance. With a rated current of 6A RMS max and rated voltage of 115/250VAC, it is suitable for various industrial and commercial equipment requiring EMI noise reduction and improved electromagnetic compatibility.

This EMI Suppression Filter is ideal for use in environments where sensitive electronic devices must be protected from unwanted electromagnetic disturbances. Its temperature range from -25°C to +100°C makes it adaptable to diverse operating conditions, from typical indoor settings to more demanding industrial scenarios. The filter’s maximum leakage current of 0.3mA at 115VAC and 0.6mA at 250VAC guarantees minimal impact on system safety and performance, while the robust hi-pot test ratings of 2000VAC line to ground and 500VAC line to line ensure high insulation reliability and durability.

Typical application occasions for the Weiaipu VIP1-1A-06 EMI Suppression Filter include power supplies, household appliances, lighting systems, and communication equipment where electromagnetic interference can degrade performance or cause malfunctions. It is also widely used in medical devices, industrial automation, and consumer electronics, providing crucial EMI noise suppression to maintain device integrity and regulatory compliance.

With a minimum order quantity of 10 units and a competitive price of 3 USD per unit, this EMC ElectroMagnetic Interference Filter offers excellent value for manufacturers and system integrators seeking cost-effective EMI solutions. The packaging details include 120 pieces per carton, which facilitates convenient storage and logistics. Delivery time ranges from 4 to 6 weeks, with payment terms by T/T, enabling efficient procurement planning.

In summary, the Weiaipu VIP1-1A-06 EMI Suppression Filter is a versatile and reliable component tailored for scenarios demanding effective EMI noise reduction and electromagnetic compatibility. Whether for new product designs or retrofit projects, this EMC ElectroMagnetic Interference Filter enhances system stability and compliance, making it an indispensable choice for engineers and manufacturers across various industries.

Customization:

Weiaipu offers customized EMC ElectroMagnetic Interference Filters tailored to your specific needs. Our VIP1-1A-06 (B011X1222) model, manufactured in ShenZhen, is designed to provide superior interference reduction performance while maintaining reliability and durability.

This Interference Reduction Filter supports a rated current of 6A RMS MAX and operates efficiently within a temperature range of -25°C to +100°C. It features a maximum leakage current of 0.3mA at 115VAC and 0.6mA at 250VAC, with an operating frequency of 50/60HZ and a rated voltage of 115/250VAC.

Certified with ROHS, this EMC ElectroMagnetic Interference Filter ensures compliance with environmental standards. Weiaipu offers a minimum order quantity of 10 units at a competitive price of 3 USD each, packaged conveniently with 120PCS per carton.

Delivery time for customized orders is typically 4-6 weeks, with payment terms via T/T. Trust Weiaipu for high-quality Interference Reduction Filters that effectively minimize electromagnetic interference in your applications.

Support and Services:

EMC EMI Filters are designed to suppress electromagnetic interference in electrical and electronic devices, ensuring compliance with international EMC standards. Our technical support team provides comprehensive assistance throughout the product lifecycle, including selection guidance, installation advice, troubleshooting, and maintenance tips.

For optimal performance, it is important to select an EMI filter that matches the specific voltage, current, and frequency requirements of your application. Proper installation is critical; ensure that the filter is grounded correctly and positioned to minimize noise coupling.

Our support services include detailed datasheets, application notes, and custom filter design assistance to meet unique customer requirements. We also offer testing and validation support to help verify filter effectiveness in your system.

Should you encounter any issues or need further technical assistance, our engineering team is ready to provide expert guidance to resolve problems promptly and ensure your EMC compliance goals are met.

FAQ:

Q1: What applications is VIP1‑1A‑06(B011X1222) EMI power line suppressor suitable for?
A1: It fits for telecommunication, IT device, medical apparatus, test & measurement instruments, meters and household small tools, works for most standard‑plug electronic equipment.
Q2: What is the physical size of this EMI disturbance suppressor model VIP1‑1A‑06(B011X1222)?

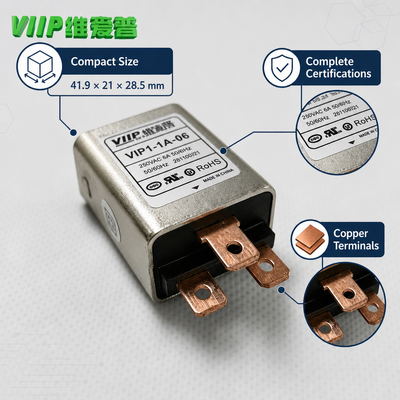

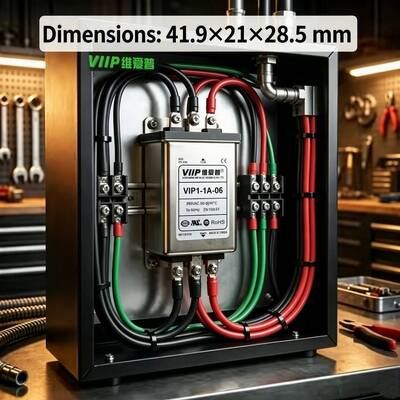

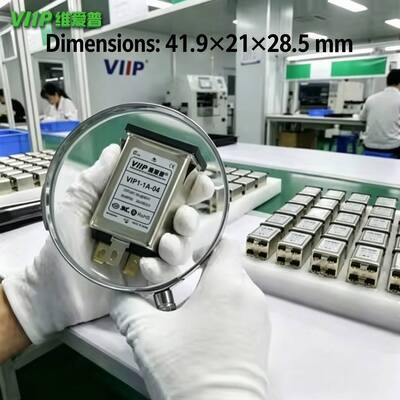

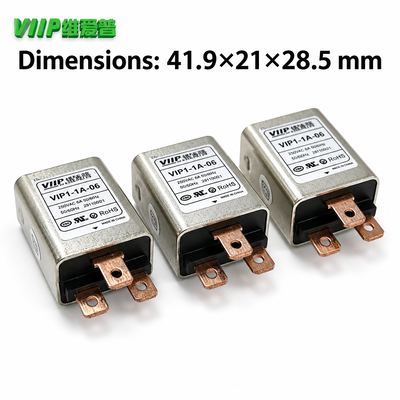

A2: Its overall dimension is 41.9×21×28.5 mm, compact structure for limited installation space of electronic devices.
Q3: What problem can this power‑line interference suppressor solve for my equipment?
A3: It restrains power‑grid electromagnetic disturbance, stabilizes power signal, protects circuit and improves anti‑interference performance of your electronic apparatus.
Q4: Is VIP1‑1A‑06(B011X1222) compatible with medical and test‑measurement devices?
A4: Yes. This electromagnetic disturbance eliminator supports medical equipment as well as test meters, meets interference‑suppression demand of precision electronic units.
Q5: Is this EMI suppressor easy to mount on standard plug‑in electronic gear?
A5: Adopt space‑saving construction for quick installation. It can be assembled on most household, telecom and industrial standard‑plug electronic devices.
