Product Description:

The EMC EMI Filter is a highly efficient EMI Interference Suppression Filter designed to protect electronic devices and systems from electromagnetic interference. This EMI Suppression Filter is engineered to ensure optimal performance in a variety of applications by effectively reducing unwanted noise and disturbances caused by electromagnetic interference. With its robust design and reliable specifications, the EMC EMI Filter is an ideal solution for enhancing the electromagnetic compatibility of electrical and electronic equipment.One of the key features of this EMI Interference

Suppression Filter is its wide temperature range, operating reliably from -25°C to +100°C. This extensive temperature tolerance allows the filter to perform consistently in harsh and demanding environmental conditions, making it suitable for use in industrial, commercial, and residential settings where temperature fluctuations are common.

The filter is rated for a maximum current of 6A RMS, which ensures it can handle substantial electrical loads without compromising its filtering capabilities. This rated current capacity makes it suitable for a broad range of applications, including power supplies, household appliances, medical devices, and communication equipment. The ability to operate at such current levels while maintaining effective EMI suppression highlights the robust construction and quality of this product.

Designed to function at standard power frequencies, the EMC EMI Filter operates effectively at 50/60Hz, which is the most common operating frequency for electrical systems worldwide. This compatibility with standard frequencies ensures seamless integration into existing electrical infrastructures without the need for additional modifications or adjustments.

Furthermore, the filter supports a rated voltage of 115/250VAC, providing versatility and adaptability for different electrical systems and regions. This dual voltage rating ensures that the EMI Suppression Filter can be deployed in both low and higher voltage environments, enhancing its usability across various applications and markets.

Another important aspect of this EMI Interference Suppression Filter is its low maximum leakage current. At 0.3mA for 115VAC and 0.6mA for 250VAC, the leakage current is kept to a minimum, ensuring safety and efficiency in operation.

In summary, the EMC EMI Filter is a dependable and versatile EMI Interference Suppression Filter designed to provide superior electromagnetic interference mitigation. Its wide temperature range, high rated current capacity, compatibility with standard operating frequencies, dual voltage rating, and low leakage current make it an excellent choice for a broad spectrum of applications. Whether used in industrial machinery, consumer electronics, or medical devices, this EMI Suppression Filter delivers consistent and effective performance, ensuring the longevity and reliability of your electronic systems.

Features:

• Product Name: EMC ElectroMagnetic Interference Filter (EMC EMI Filter)
• Temperature Range: -25°C to +100°C
• Maximum Leakage Current: 0.3mA @ 115VAC / 0.6mA @ 250VAC
• Rated Voltage: 115/250VAC
• Hi-pot Test Voltage: Line to Ground 2000VAC; Line to Line 500VAC
• Rated Current: 6A RMS MAX
• Designed as an EMI Suppression Filter to reduce electromagnetic interference
•

Technical Parameters:

Applications:

The Weiaipu VIP1-1A-06 (B011X1222) EMI Suppression Filter is an essential component designed to enhance the performance and reliability of various electronic devices by effectively reducing electromagnetic interference (EMI). Manufactured in Shenzhen and certified with ROHS, this filter ensures high-quality standards and environmental compliance. With a rated voltage of 115/250VAC and a rated current of 6A RMS max, it is perfectly suited for a wide range of applications requiring stable and efficient EMI suppression.

This EMI Suppression Filter is ideal for use in consumer electronics, industrial machinery, medical equipment, and telecommunication devices where electromagnetic noise can cause malfunction or degrade performance. Its low maximum leakage current (0.3mA at 115VAC and 0.6mA at 250VAC) and strong hi-pot test ratings (2000VAC line to ground and 500VAC line to line) guarantee safety and reliability in demanding operational environments. The filter operates efficiently at 50/60Hz frequencies, making it versatile for global usage.

In practical scenarios, the Weiaipu VIP1-1A-06 EMI Suppression Filter is frequently employed in power supplies, motor drives, lighting systems, and household appliances to suppress unwanted EMI signals that can interfere with sensitive circuits. It is also utilized in industrial automation systems to maintain signal integrity and prevent electromagnetic disturbances caused by heavy machinery. The compact packaging of 120 pieces per carton and a competitive price of 3 USD per unit make it an economical choice for manufacturers and repair services alike.

Businesses requiring small to medium quantities will benefit from the minimum order quantity of just 10 units, with a delivery time of 4-6 weeks and convenient payment terms via T/T. This makes the Weiaipu EMI Suppression Filter an accessible and reliable solution for both prototyping and mass production needs. Whether used in new product development or retrofit projects, this filter ensures compliance with electromagnetic compatibility standards and enhances overall device performance.

In summary, the Weiaipu VIP1-1A-06 EMI Suppression Filter is designed to meet the demands of modern electronic applications by providing superior EMI filtering capabilities, robust safety features, and cost-effective supply chain logistics. Its proven effectiveness in suppressing EMI makes it an indispensable component for ensuring stable and interference-free operation in a multitude of industrial, commercial, and consumer electronic scenarios.

Customization:

Weiaipu offers customization services for the EMC ElectroMagnetic Interference Filter model VIP1-1A-06 (B011X1222), designed to meet your specific needs. Originating from ShenZhen and certified with ROHS, this EMI Suppression Filter ensures high quality and compliance with industry standards.

Our Interference Reduction Filter supports a rated voltage of 115/250VAC and a rated current of 6A RMS max, with a maximum leakage current of 0.3mA at 115VAC and 0.6mA at 250VAC, making it ideal for effective electromagnetic interference suppression.

The product undergoes stringent Hi-pot testing, with Line to Ground rated at 2000VAC and Line to Line at 500VAC, ensuring reliable performance in demanding environments. It operates efficiently within a temperature range of -25°C to +100°C.

Weiaipu's EMC EMI Filter is available with a minimum order quantity of 10 units, priced competitively at 3 USD each. Packaging is done in cartons containing 120 pieces to facilitate safe and convenient shipping.

Delivery time is estimated between 4 to 6 weeks, and payment terms are flexible with T/T accepted. Customize your EMI Suppression Filter with Weiaipu to achieve optimal interference reduction tailored to your application.

Support and Services:

Our EMC EMI Filter product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive assistance including installation guidance, troubleshooting, and maintenance instructions to help you integrate and operate the EMI filters effectively within your systems.

Our services include detailed product documentation, application notes, and FAQs to address common queries and technical challenges. Additionally, we offer customized solutions tailored to specific application requirements, helping you achieve compliance with electromagnetic compatibility standards.

For ongoing support, we provide firmware updates, product upgrades, and repair services to extend the lifecycle of your EMC EMI Filter products. Our experts are available to assist with technical consultations, system design advice, and problem resolution to maximize the efficiency and reliability of your electromagnetic interference mitigation efforts.

We are committed to delivering high-quality technical support and professional services to ensure that your EMC EMI Filter solutions perform seamlessly in your applications.

FAQ

Q1: What applications is VIP1‑1A‑06(B011X1222) EMI power line suppressor suitable for?

A1: It fits for telecommunication, IT device, medical apparatus, test & measurement instruments, meters and household small tools, works for most standard‑plug electronic equipment.

Q2: What is the physical size of this EMI disturbance suppressor model VIP1‑1A‑06(B011X1222)?

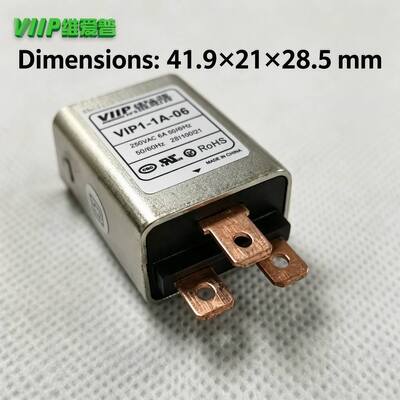

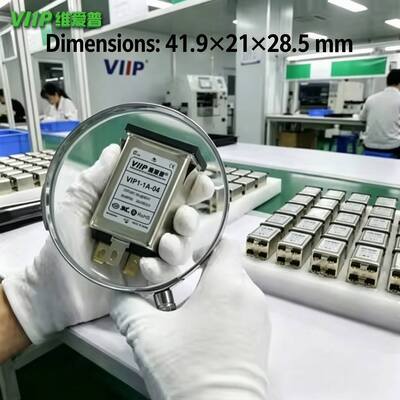

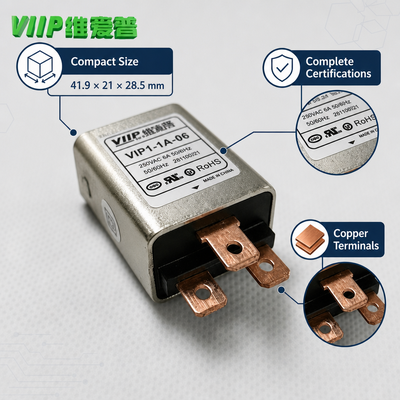

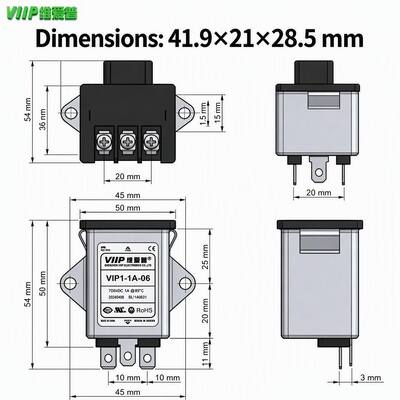

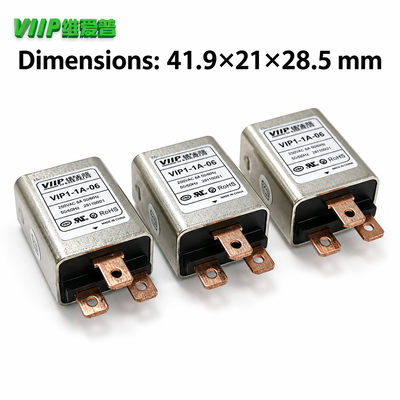

A2: Its overall dimension is 41.9×21×28.5 mm, compact structure for limited installation space of electronic devices.

Q3: What problem can this power‑line interference suppressor solve for my equipment?

A3: It restrains power‑grid electromagnetic disturbance, stabilizes power signal, protects circuit and improves anti‑interference performance of your electronic apparatus.

Q4: Is VIP1‑1A‑06(B011X1222) compatible with medical and test‑measurement devices?

A4: Yes. This electromagnetic disturbance eliminator supports medical equipment as well as test meters, meets interference‑suppression demand of precision electronic units.

Q5: Is this EMI suppressor easy to mount on standard plug‑in electronic gear?

A5: Adopt space‑saving construction for quick installation. It can be assembled on most household, telecom and industrial standard‑plug electronic devices.
