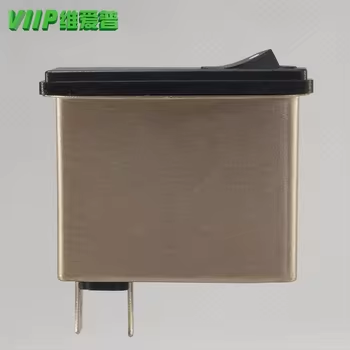

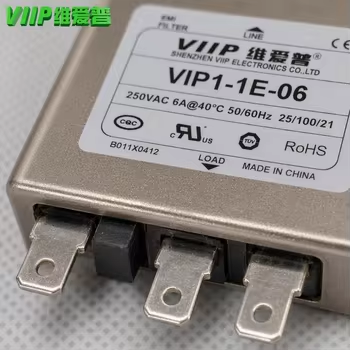

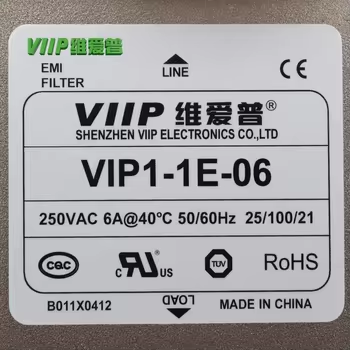

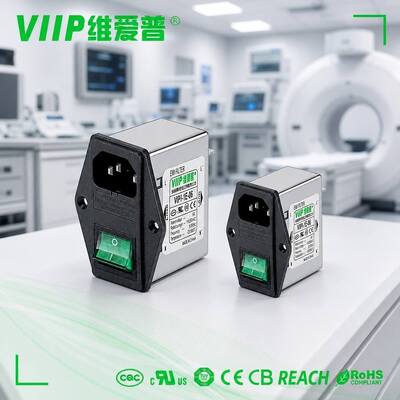

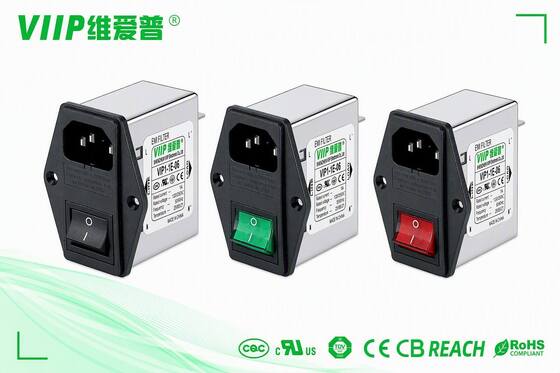

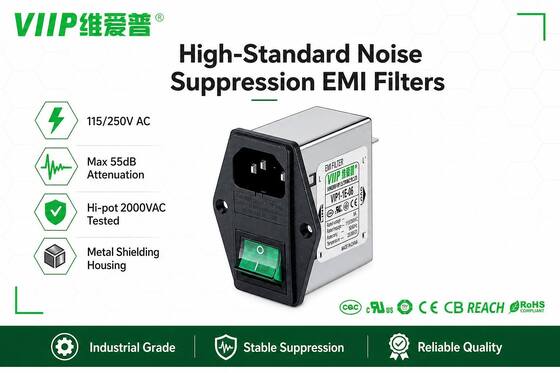

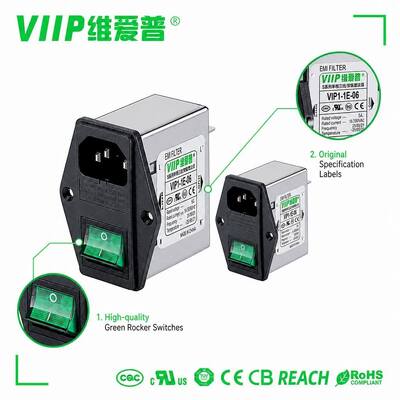

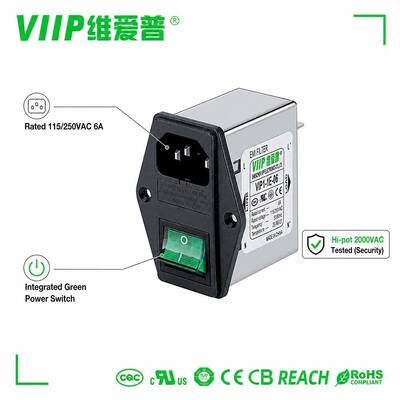

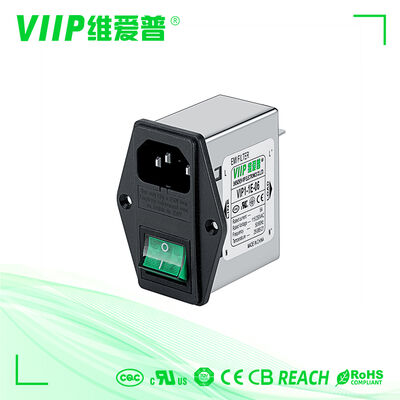

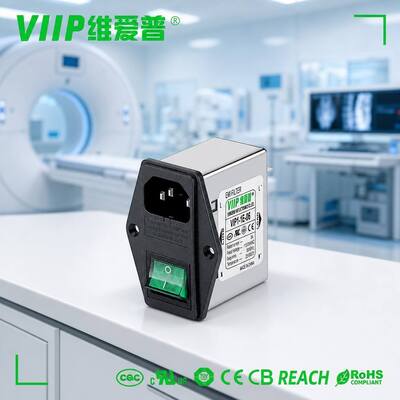

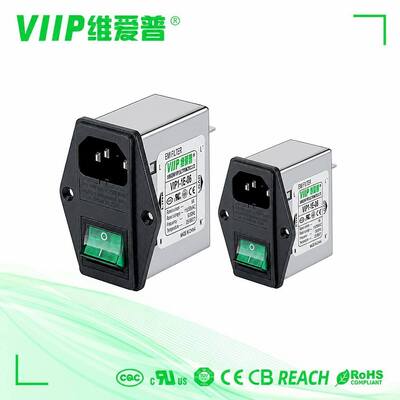

VIP1-1E-06 Single Phase EMI Filter 6A Rated Current 250VAC Rated Voltage RoHS Compliant Power Line Filter

Brand Name: Weiaipu
Model Number: VIP1-1E-06(B011X0412)
MOQ: 112PCS
Price: 9.54USD
Packaging Details: 120PCS/CARTON
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shen Zhen
Certification:
CE TUV UL ROHS REACH
Leakagecurrent:
≤ 2uA (@115VAC) / ≤ 5uA (@250VAC)
Rated Voltage:
115/250VAC
Operating Temperature:
-25℃~+85℃
Rohs Compliant:
Yes
Supply Ability:
30K/month
Highlight:

6A Rated Current EMI Filter

,

250VAC Rated Voltage EMC Filter

,

RoHS Compliant Power Line Filter

Product Description

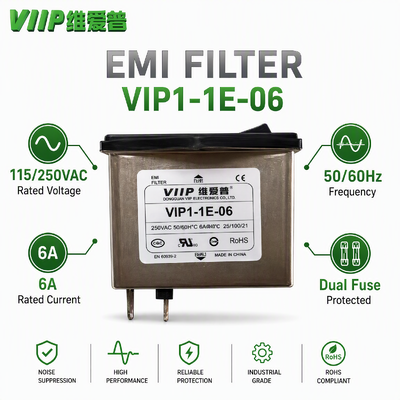

Single Phase EMI Filter VIP1-1E-06 6A 250VAC

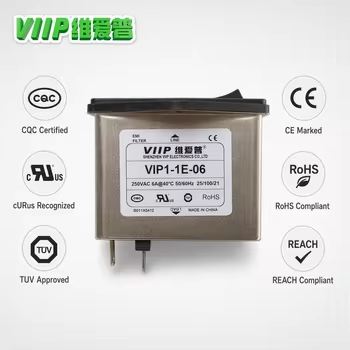

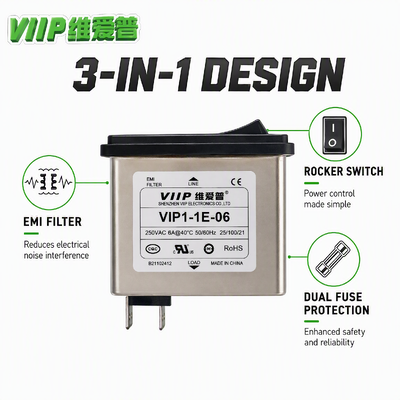

VIP1-1E-06 Single Phase EMI Power Filter 6A 250VAC with Fast-on Terminal Noise Suppressor. Certified with CQC, UL, TUV, CE, RoHS, REACH for EMC compliance.

Product Overview

The VIP1-1E-06 EMC EMI Filter is a high-performance power line filter designed to effectively suppress electromagnetic disturbances and ensure system reliability. Engineered for robust operation, it features a wide operating temperature range of -25℃ to +100℃, making it suitable for demanding industrial, consumer electronics, and general equipment applications.

This filter offers superior protection against electrical surges, withstanding a Hi-pot rating of 2000 VAC (Line-to-Ground) and 500 VDC (Line-to-Line). It is optimized for 50Ω systems and provides significant insertion loss across a broad frequency spectrum (0.15MHz to 30MHz), effectively minimizing conducted EMI and enhancing overall electromagnetic compatibility (EMC).

Electrical Characteristics
Parameter Specification
Voltage Rating 115/250VAC
Current Rating At 115VAC: 6A RMS Max. / At 250VAC: 6A RMS Max.
Operating Frequency 50/60Hz
Leakage Current (Each Line to Ground) At 115VAC/60Hz: ≤2µA Max. / At 250VAC/50Hz: ≤5µA Max.
Hi-pot Test (1 Minute) Line to Ground: 2000VAC / Line to Line: 500VDC
Insulation Resistance Any Input or Output to Ground at 500VDC: ≥100MΩ
Temperature Range -25℃ ～ +100℃
Applications
  • Industrial automation equipment
  • Medical electronic equipment
  • Test and measurement instruments
  • Switching power supply units
Insertion Loss (Reference Value, 50Ω)
Frequency (MHz) 0.15 0.5 1 5 10 30
Common Mode (dB) 20 25 26 27 25 32
Differential Mode (dB) 8 19 27 55 47 30

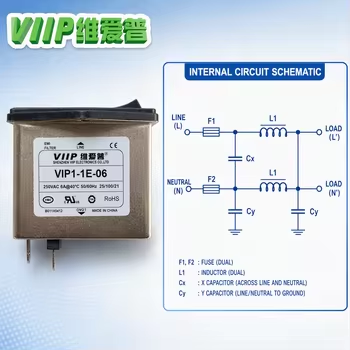

Electrical Schematic
EMI Filter Electrical Schematic Diagram 1 EMI Filter Electrical Schematic Diagram 2 EMI Filter Electrical Schematic Diagram 3 EMI Filter Electrical Schematic Diagram 4 EMI Filter Electrical Schematic Diagram 5
Frequently Asked Questions
Q1: What is the brand and model number of this EMC EMI Filter?
A1: The brand name is Weiaipu and the model number is VIP1-1E-06(B011X0412).
Q2: Where is this EMC EMI Filter manufactured?
A2: This product is made in ShenZhen.
Q3: What certifications does VIP1-1E-06 comply with?
A3: This EMI filter is certified with CQC, UL, TUV, CE and RoHS, meets international standards and suitable for export to global markets.
Q4: What payment terms are accepted for purchasing this EMC EMI Filter?
A4: Payment is accepted via T/T (Telegraphic Transfer).
Q5: Can VIP1-1E-06 reduce interference between multiple electronic devices?
A5: Yes, it suppresses conducted interference transmitted through AC power lines and avoids mutual interference among equipment.
Tags:
