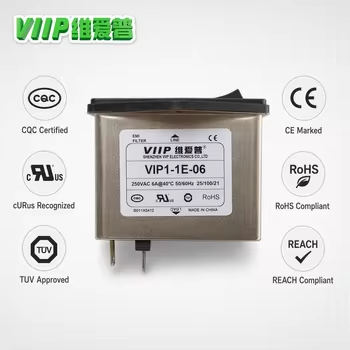

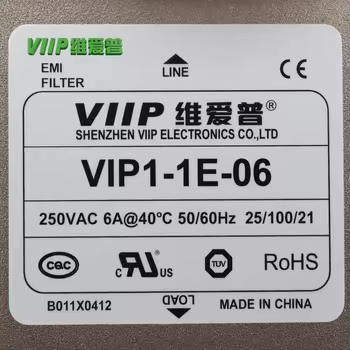

VIIP VIP1-1E-06 B011X0412 EMI Power Line Filter with Fast-on Terminal Noise Suppressor. Certified with CQC, UL, TUV, CE, RoHS, REACH for EMC compliance.

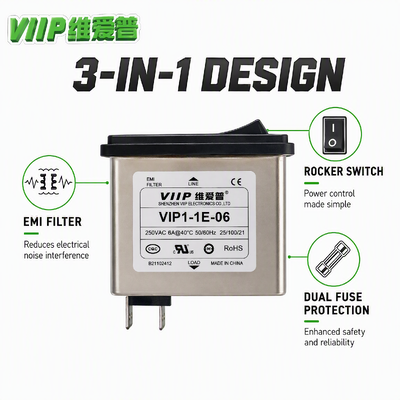

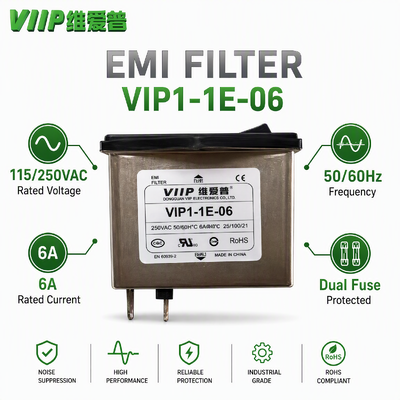

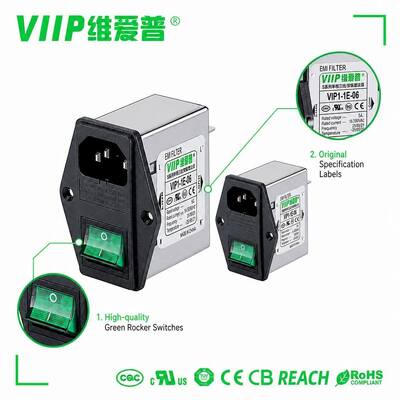

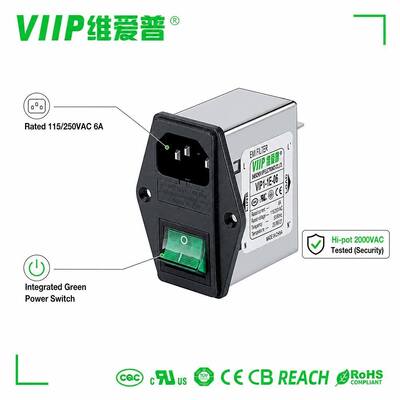

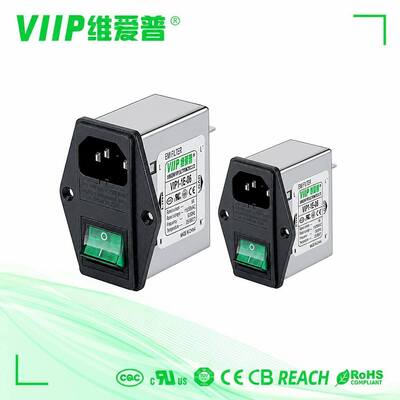

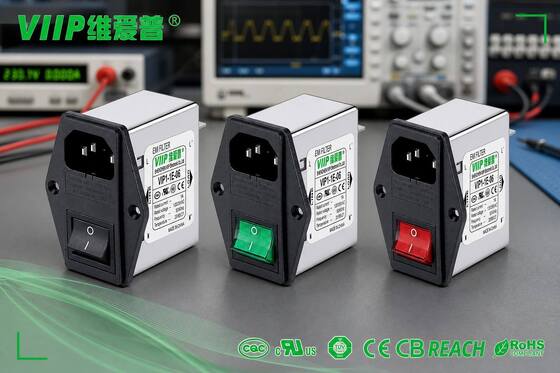

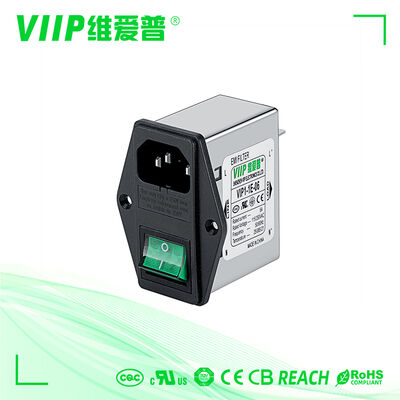

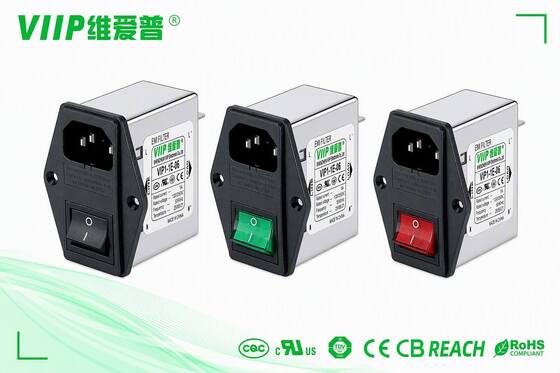

     VIP1‑1E‑06 (B011X0412) is a compact front‑mount EMI power entry module developed by Shenzhen VIIP Electronics. Designed for single‑phase AC mains input, this integrated device integrates an IEC power socket, dual pull‑out fuse holder and EMI filtering circuit within one metal shielding housing. With a 6A RMS current rating for 115/250VAC 50/60Hz power grids, it functions as the power input gateway, delivering over‑current safeguard and power‑line noise suppression simultaneously. Equipped with 6.3 mm fast‑on terminals for quick wiring, the module supports front‑panel installation. It satisfies RoHS and REACH environmental norms and can operate steadily within ‑25°C to +100°C ambient temperature.

Product Highlights

• High‑density integrated architecture: Combines power inlet, dual‑fuse protection and EMI filter into one single unit, cutting down component quantity and saving internal device space, shortening product development cycle.
• Low leakage current characteristic: Limits leakage current up to 2 μA at 115VAC/60Hz and 5 μA at 250VAC/50Hz, catering to applications that have rigorous leakage‑current safety specifications.

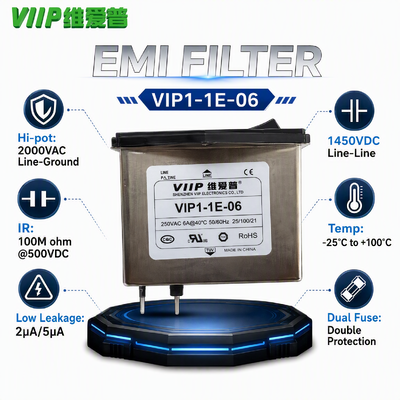

• Superior dielectric performance: Insulation resistance reaches minimum 100 MΩ under 500VDC between input/output and ground. Completed one‑minute hipot verification to secure long‑term electrical reliability.

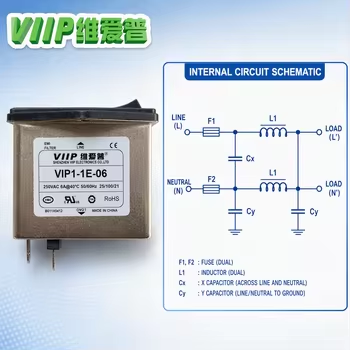

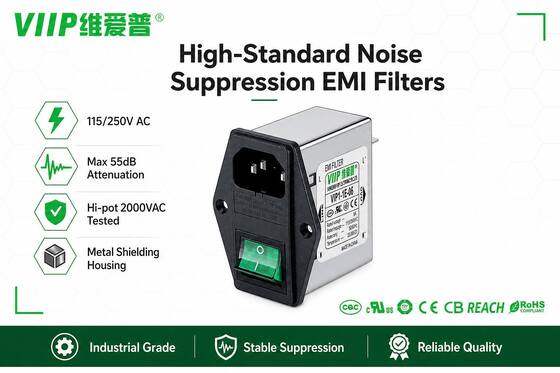

• Effective EMC noise suppression: Provides favorable common‑mode and differential‑mode insertion loss in 50‑ohm test system. It blocks noise from the power grid entering end equipment and inhibits internal interference leaking back to mains.

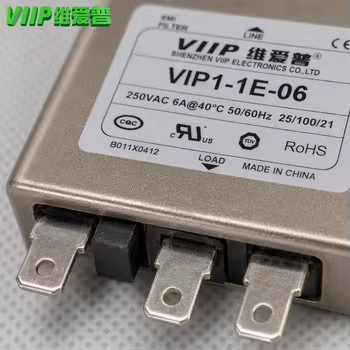

• User‑friendly mechanical design: Standard panel cut‑out for front mounting; fast‑on tab terminals realize rapid wire connection. Pull‑out dual‑fuse structure facilitates fuse replacement and offers full‑path over‑current protection for live and neutral wires.
• Wide environmental tolerance: Operating temperature ranging from ‑25°C to +100 °C, adapts to diverse working scenarios. RoHS & REACH compliant to fulfill international market access requirements.

Application

• Precision test, measurement and analytical instruments
• Low‑leakage required electronic equipment
• Industrial control systems and automated production devices
• Server peripherals and office electronic apparatus

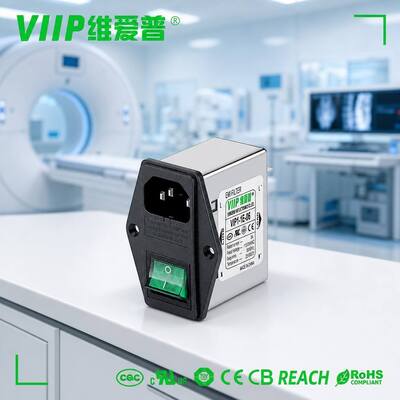

• Medical auxiliary equipment (low‑leakage scenarios)
• Network and telecommunication power supply units
• Commercial lab equipment and laboratory automation hardware
• General AC‑powered devices requiring EMC enhancement

•  Flectronic equipment requiring connection of standard plug
