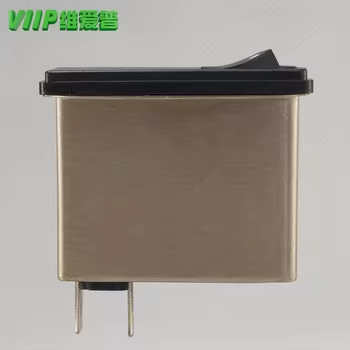

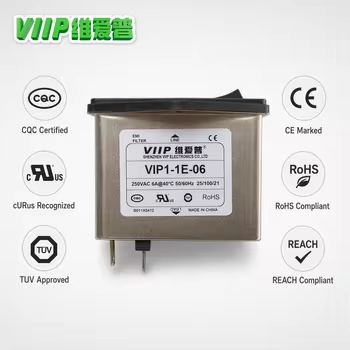

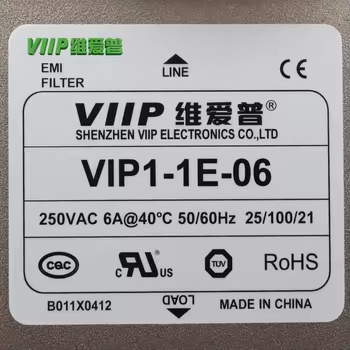

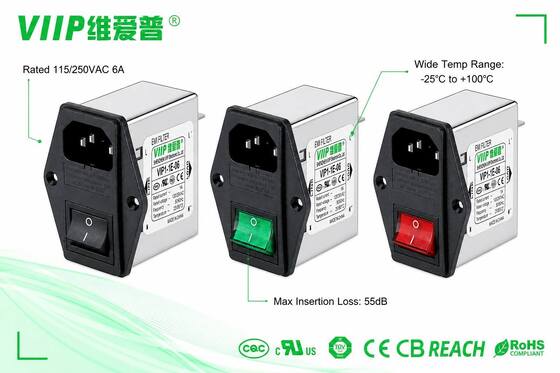

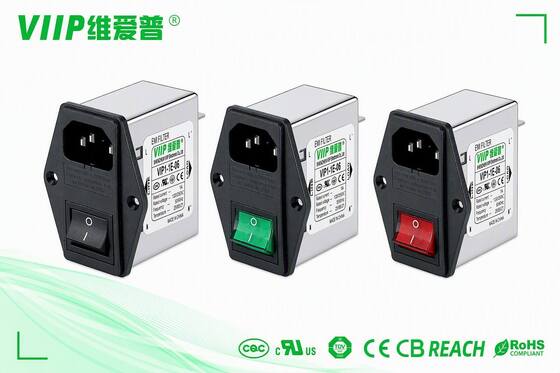

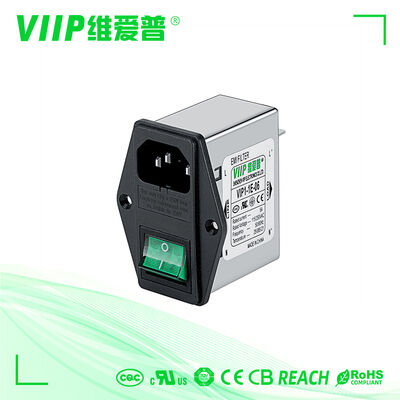

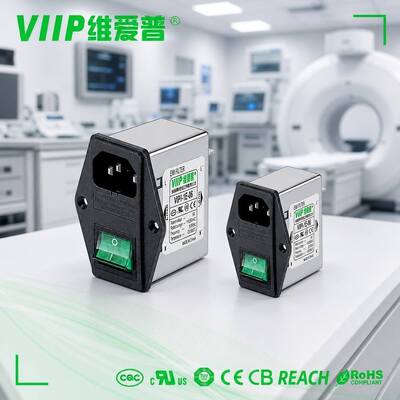

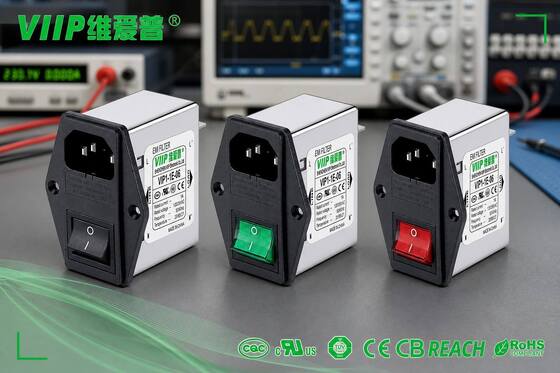

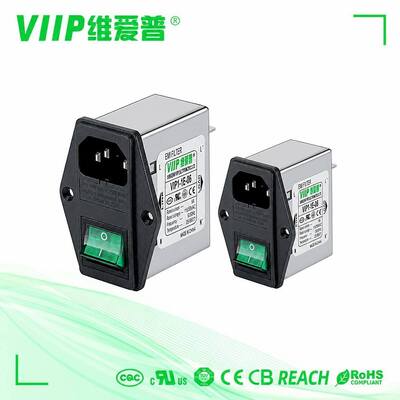

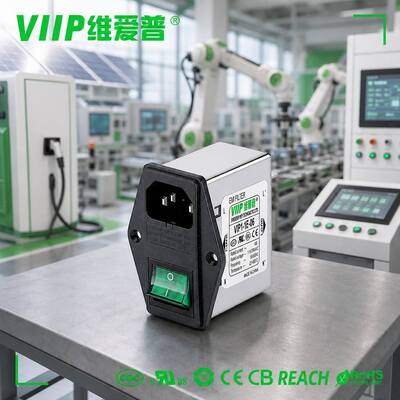

VIIP VIP1-1E-06 B011X0412 EMI Power Line Filter with Fast-on Terminal Noise Suppressor. Certified with CQC, UL, TUV, CE, RoHS, REACH for EMC compliance.

The VIP1-1E-06 EMC EMI Filter is a high-performance power line filter designed to effectively suppress electromagnetic disturbances and ensure system reliability. Engineered for robust operation, it features a wide operating temperature range of -25℃ to +100℃, making it suitable for demanding industrial, consumer electronics, and general equipment applications.

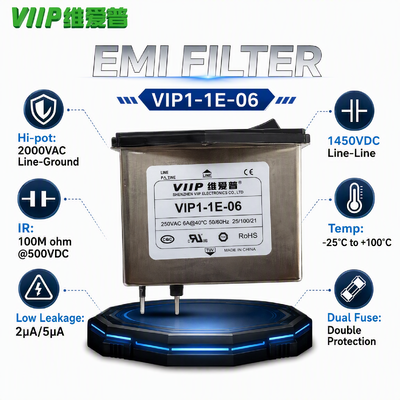

This filter offers superior protection against electrical surges, withstanding a Hi-pot rating of 2000 VAC (Line-to-Ground) and 500 VDC (Line-to-Line). It is optimized for 50Ω systems and provides significant insertion loss across a broad frequency spectrum (0.15MHz to 30MHz), effectively minimizing conducted EMI and enhancing overall electromagnetic compatibility (EMC).

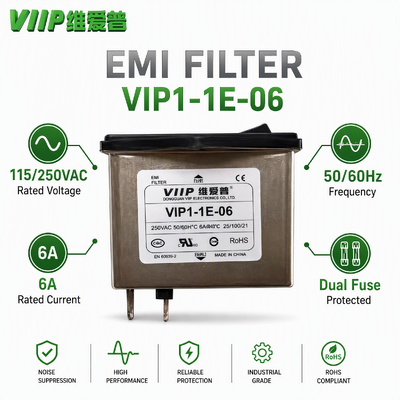

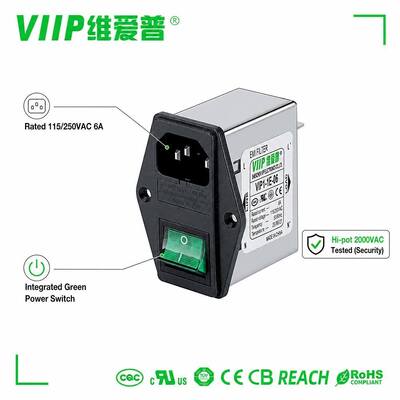

Designed for seamless integration, the filter supports up to 6A RMS current at both 115VAC and 250VAC ratings. Its compact design and high insulation resistance (>100MΩ @ 500VDC) ensure safe and stable performance in various electronic circuits.

Product Highlights

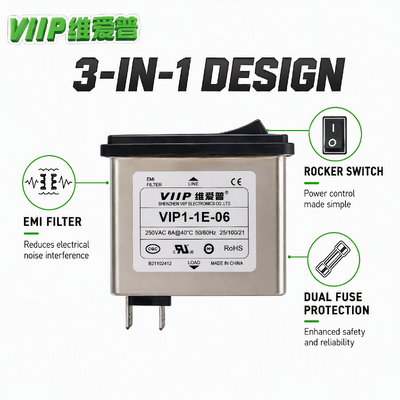

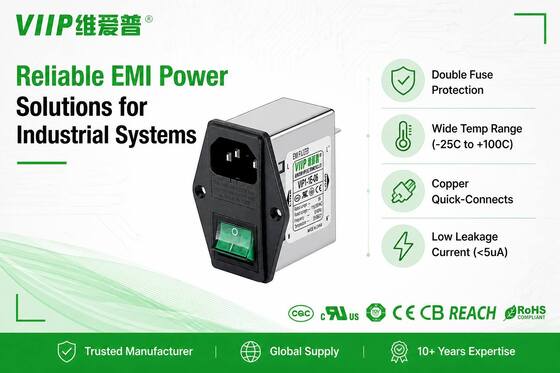

• All‑in‑one panel power interface: Consolidates IEC socket, dual pull‑out fuse compartment and EMI filter, reducing part count and simplifying mechanical design for host equipment.
• Low ground leakage current: Restricts leakage to 2 μA maximum at 115VAC/60Hz and 5 μA maximum at 250VAC/50Hz, meeting strict safety demands for sensitive equipment.
• Robust electrical safety performance: Offers ≥100 MΩ insulation resistance at 500VDC between input/output and ground, validated by one‑minute hipot testing to prevent electric risk.
• Bidirectional noise attenuation: Optimized insertion loss performance under 50‑ohm test environment, attenuates both incoming grid interference and internal device noise back‑feeding to utility mains.

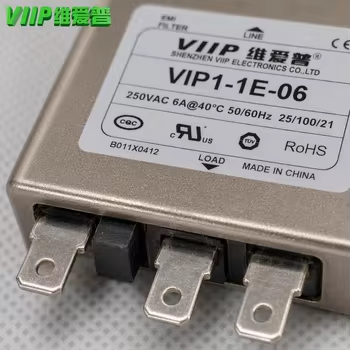

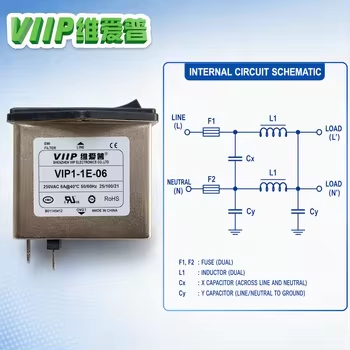

• Easy integration: Standard front‑mount panel cut‑out footprint; 6.3 mm fast‑on terminals enable fast field wiring without soldering operations. Dual‑fuse design provides overcurrent protection for both live and neutral paths.
• Broad environmental adaptability: Operating temperature range ‑25°C ~ +100°C, suitable for varied working conditions. RoHS & REACH compliant to satisfy global regulatory requirements.

Application

• Precision laboratory and measuring instruments
• Safety‑focused electronic devices requiring low leakage current
• Industrial automation controllers and factory automation hardware
• Data processing and office automation equipment
• Analytical and laboratory test apparatus
• Commercial electronic devices with IEC power input
• Communication hardware and network power supplies
• General‑purpose AC‑powered electronic systems requiring EMC improvement

•  Flectronic equipment requiring connection of standard plug
