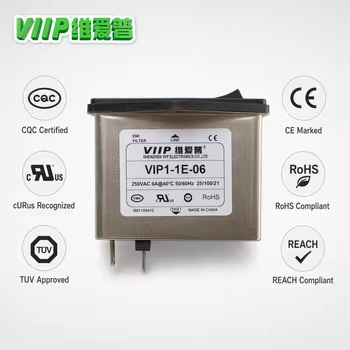

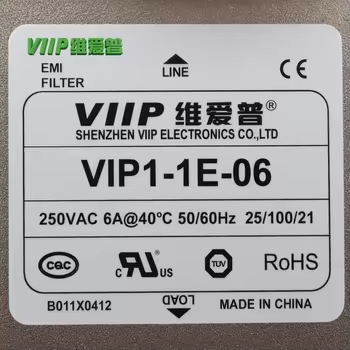

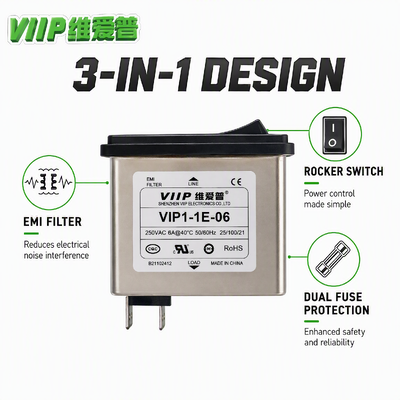

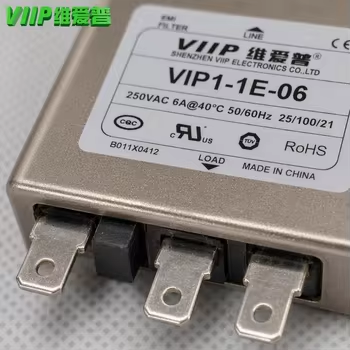

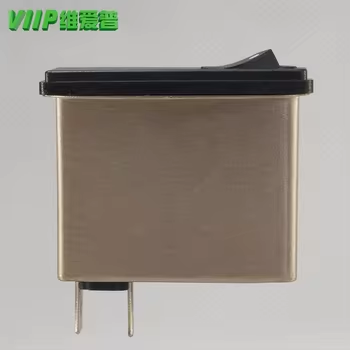

VIP1-1E-06 Single Phase EMI Power Filter 6A 250VAC Fast-on Terminal Noise Suppressor CQC UL TUV CE RoHS REACH EMC Filter
All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core
Contact Us
Miss. Vicky Lee
vip6@szviip.com
19925448748
wechat 19925448748
Contact Now

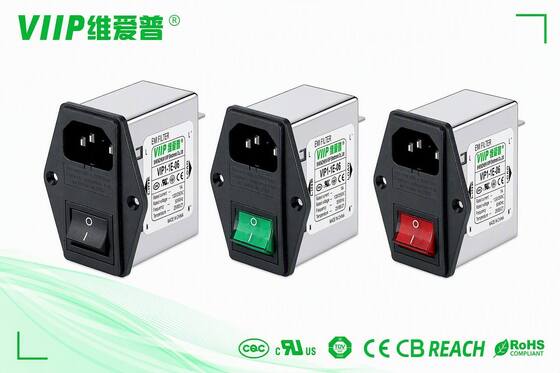

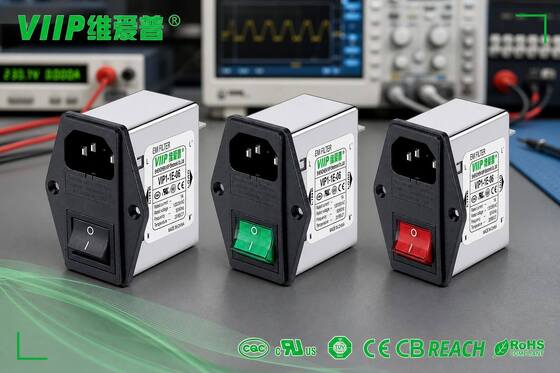

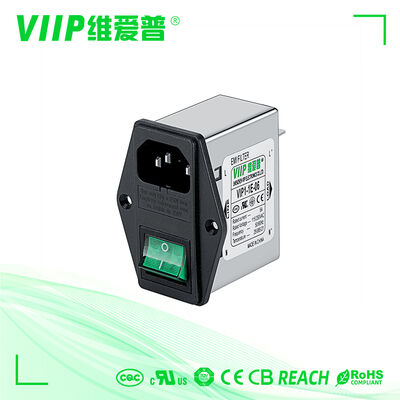

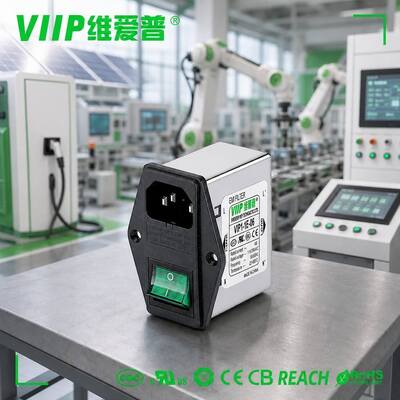

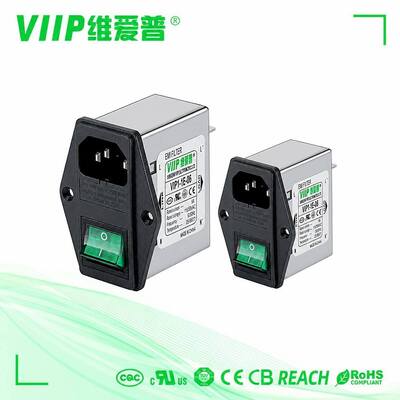

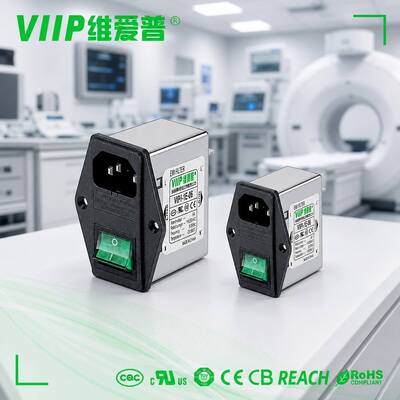

VIP1-1E-06 Single Phase EMI Power Filter 6A 250VAC Fast-on Terminal Noise Suppressor CQC UL TUV CE RoHS REACH EMC Filter
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

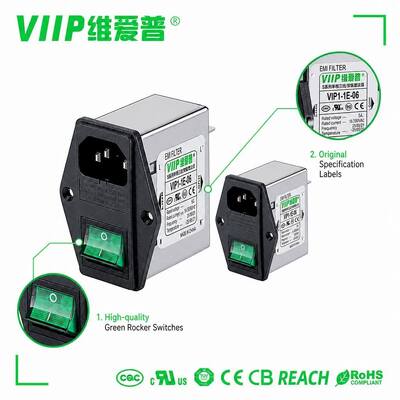

VIP1-1E-06 Single Phase EMI Power Filter 6A 250VAC Fast-on Terminal Noise Suppressor CQC UL TUV CE RoHS REACH EMC Filter

Brand Name: Weiaipu
Model Number: VIP1-1E-06(B011X0412)
MOQ: 112PCS
Price: 9.54USD
Packaging Details: 120PCS/CARTON
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shen Zhen
Certification:
CE TUV UL ROHS REACH
Leakagecurrent:
≤ 2uA (@115VAC) / ≤ 5uA (@250VAC)
Rated Voltage:
115/250VAC
Operating Temperature:
-25℃~+85℃
Rohs Compliant:
Yes
Supply Ability:
30K/month
Highlight:

Single Phase EMI Power Filter 6A

,

EMI noise suppressor Fast-on Terminal

,

EMC Filter with CQC UL certification

Product Description
VIP1-1E-06 Single Phase EMI Power Filter 6A 250VAC
VIIP VIP1-1E-06 B011X0412 EMI Power Line Filter with Fast-on Terminal Noise Suppressor. Certified with CQC, UL, TUV, CE, RoHS, REACH for EMC compliance.
Product Overview
The VIP1-1E-06 EMC EMI Filter is a high-performance power line filter designed to effectively suppress electromagnetic disturbances and ensure system reliability. Engineered for robust operation, it features a wide operating temperature range of -25℃ to +100℃, making it suitable for demanding industrial, consumer electronics, and general equipment applications.
This filter offers superior protection against electrical surges, withstanding a Hi-pot rating of 2000 VAC (Line-to-Ground) and 500 VDC (Line-to-Line). It is optimized for 50Ω systems and provides significant insertion loss across a broad frequency spectrum (0.15MHz to 30MHz), effectively minimizing conducted EMI and enhancing overall electromagnetic compatibility (EMC).
Designed for seamless integration, the filter supports up to 6A RMS current at both 115VAC and 250VAC ratings. Its compact design and high insulation resistance (>100MΩ @ 500VDC) ensure safe and stable performance in various electronic circuits.

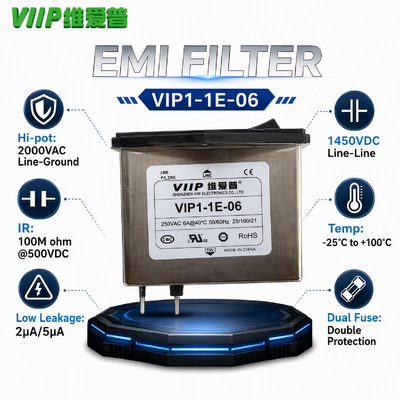

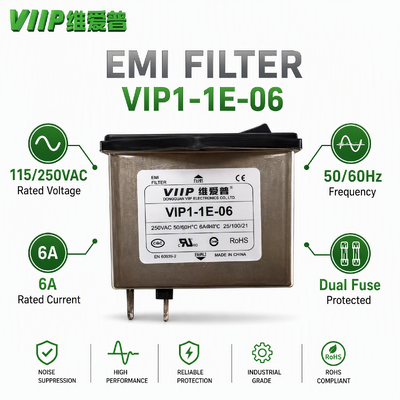

Electrical Characteristics
Parameter Specification
Voltage Rating 115/250VAC
Current Rating At 115VAC: 6A RMS Max. / At 250VAC: 6A RMS Max.
Operating Frequency 50/60Hz
Leakage Current (Each Line to Ground) At 115VAC/60Hz: ≤2µA Max. / At 250VAC/50Hz: ≤5µA Max.
Hi-pot Test (1 Minute) Line to Ground: 2000VAC / Line to Line: 500VDC
Insulation Resistance Any Input or Output to Ground at 500VDC: ≥100MΩ
Temperature Range -25℃ ～ +100℃
Applications
  • Instruments and meters
  • Household small tools
Insertion Loss (Reference Value, 50Ω)
Frequency (MHz) 0.15 0.5 1 5 10 30
Common Mode (dB) 20 25 26 27 25 32
Differential Mode (dB) 8 19 27 55 47 30

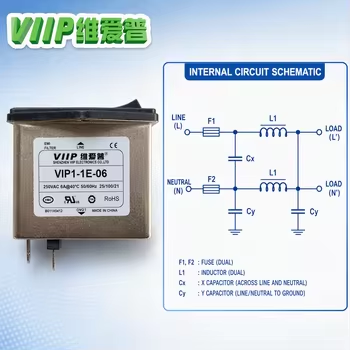

Electrical Schematic
EMI Filter Electrical Schematic Diagram 1 EMI Filter Electrical Schematic Diagram 2 EMI Filter Electrical Schematic Diagram 3 EMI Filter Electrical Schematic Diagram 4 EMI Filter Electrical Schematic Diagram 5
Frequently Asked Questions
Q1: What is the brand and model number of this EMC EMI Filter?
A1: The brand name is Weiaipu and the model number is VIP1-1E-06(B011X0412).
Q2: Where is this EMC EMI Filter manufactured?
A2: This product is made in ShenZhen.
Q3: What certifications does VIP1-1E-06 comply with?
A3: This EMI filter is certified with CQC, UL, TUV, CE and RoHS, meets international standards and suitable for export to global markets.
Q4: What payment terms are accepted for purchasing this EMC EMI Filter?
A4: Payment is accepted via T/T (Telegraphic Transfer).
Q5: Can VIP1-1E-06 reduce interference between multiple electronic devices?
A5: Yes, it suppresses conducted interference transmitted through AC power lines and avoids mutual interference among equipment.
Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV
