VIP1-1A-06(B011X1222) 6A Rated Current Single-Stage Circuit Design Compact Construction EMI Power Line Filter for Automation and Medical Equipment
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

VIP1-1A-06(B011X1222) 6A Rated Current Single-Stage Circuit Design Compact Construction EMI Power Line Filter for Automation and Medical Equipment

Brand Name: Weiaipu VIIP
Model Number: VIP1-1A-06 (B011X1222)
MOQ: 245
Price: 3~5$
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen
Certification:
CB UL CQC
Rated Voltage:
115/250 VAC
Rated Current:
6A RMS Max
Operating Frequency:
50/60 Hz
Maximum Leakage Current:
0.3mA @115VAC / 0.6mA @250VAC
Hi-pot Test:
Line To Ground: 2000 VAC; Line To Line: 500 VAC
Supply Ability:
30k/month
Highlight:

6A Rated Current EMI Power Line Filter

,

Single-Stage Circuit Design EMC EMI Filter

,

Compact Construction IEC Inlet EMI Filter

Product Description
EMI Power Line Filter VIP1-1A-06 (B011X1222)
VIP1-1A-06 (B011X1222) single-stage IEC inlet EMI power filter is launched by VIIP WEIAIPU. Combined with standard IEC C14 socket, it can be mounted directly on equipment panel to restrain conducted electromagnetic interference of AC power line.
Key Electrical Specifications
Rated Voltage 115/250 VAC
Rated Current 6A RMS Max
Operating Frequency 50/60 Hz
Maximum Leakage Current 0.3mA @115VAC / 0.6mA @250VAC
Hi-pot Test Line to Ground: 2000 VAC; Line to Line: 500 VAC
Insulation Resistance ≥100MΩ @500VDC
Operating Temperature Range -25℃ ~ +100℃

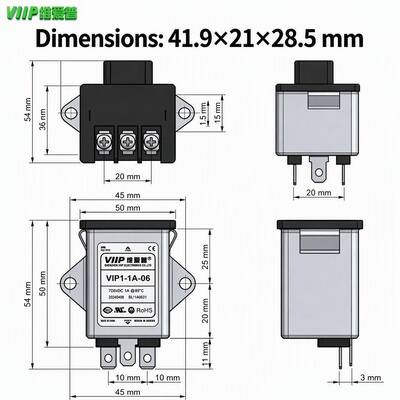

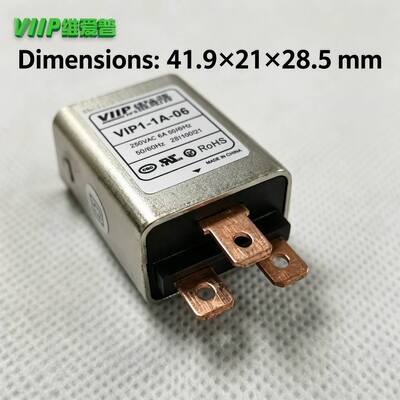

EMI Power Line Filter VIP1-1A-06 front view EMI Power Line Filter technical specifications diagram
Product Advantages
  • Integrated standard IEC C14 socket, panel mounting applicable for panel thickness 0.8~1.2mm
  • Single-stage circuit design, outstanding common-mode and differential-mode insertion loss for EMI suppression
  • Compact construction, saving internal space of electronic devices
  • Fully comply with RoHS & REACH environmental standards
  • Adopt 6.3mm fast-on terminals for simple wiring

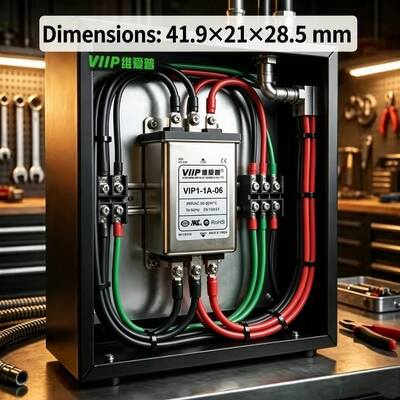

EMI Power Line Filter installation and application examples
Scope of Application
IT equipment, telecommunication equipment, medical equipment, instruments and meters, household small tools, test and measurement equipment, electronic equipment requiring connection of standard plug.
Tags:
