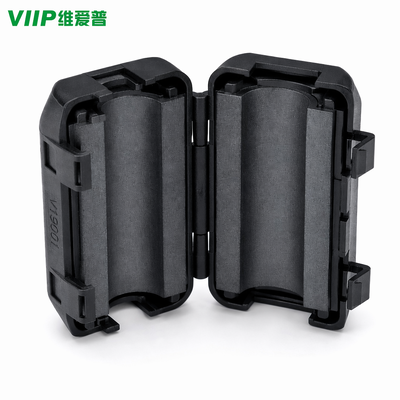

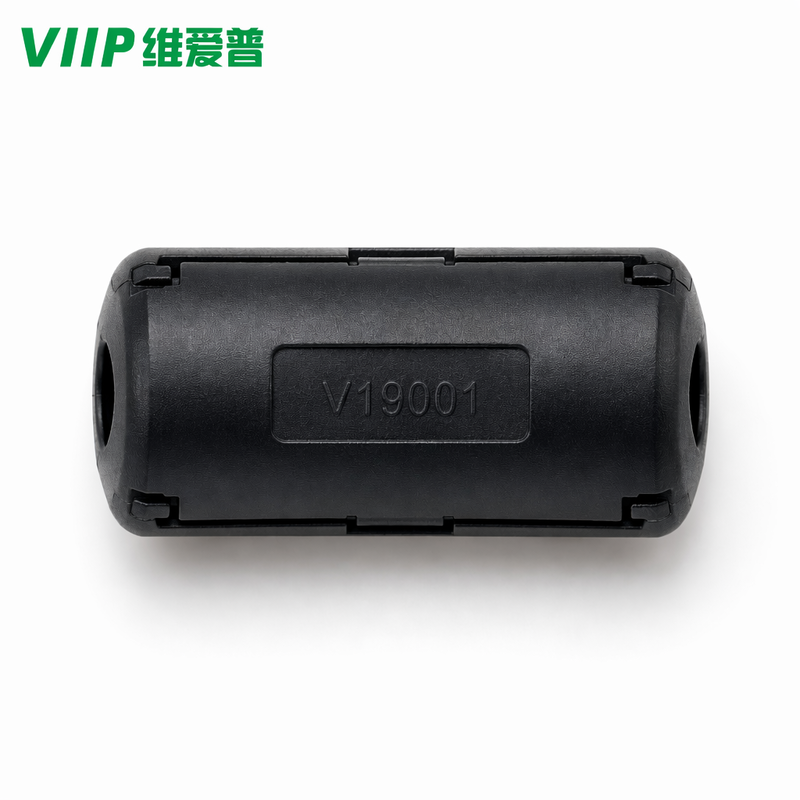

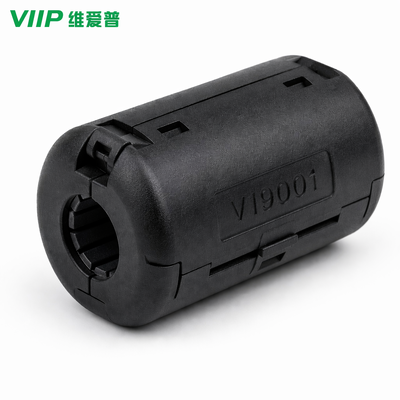

V19001 F9 Ferrite Core Ring Magnet for EMI Suppression and Cable Noise Filtering
  • Name
  • Name
  • Name
  • Name

V19001 F9 Ferrite Core Ring Magnet for EMI Suppression and Cable Noise Filtering

Brand Name: VIIP
Model Number: V18009
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
Rohs Reach
Document:
V19001 Rev 4.0.pdf
Material:
F9
Supply Ability:
5k For one week
Product Description
Magnetic Ring Snap On Ferrite Choke RFI EMI Noise Suppression Filter Cable Clip
Description:
  • RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.

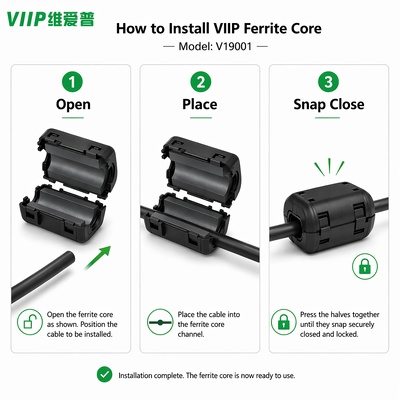

  • Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.
Products descriptions:
Product name Ferrite magnetic ring
Material Nizn
Size According to the needs of customers
Model V19001
Application video cable, audio cable, data cable etc.
Operation Temperature -25 to +85°C
Specifications:
No Specifications Fig ΦA(mm) B(mm) ΦC(mm) D(mm) E(mm) Impedance
@25MHz(Ω)		 Impedance
@100MHz(Ω)
1 V13023 11 19.5±1 32±1 9±1 9±0.5 7.8±0.5 100 160
2 V18001A 1 13±1 11.8±1 3.5±0.8 25.2±1 2.5±1 120 200
3 V18001 1 13±1 12±1 5±1 25±1 2.5±1 65 135
4 V18002 1 16.5±1 14±1 7±0.8 30±1 / 65 130
5 V18002C 5 20.7±1 39.4±1 7.2±0.5 / / 105 205
6 V18003 1 19.5±1 18±1 9±0.8 35±1 5.5±1 70 140
7 V18004 1 23.5±1 22.2±1 13±0.8 36±1 10±1 70 135
8 V18005 2 21±1 19.5±1 6.5±0.8 32.5±1 / 120 255
9 V18006 2 25.5±1 24±1 10±0.8 32.5±1 / 110 220
10 V18007 2 32.5±1 30.5±1 13±0.8 32±1 / 115 215
11 V18008 3 19.5±1 23±1 8±0.8 17±1 23±1 45 105
12 V18009 3 19.5±1 23±1 8±0.8 19.5±1 26±1 60 120
13 V18010 4 15±1 14±1 7±1 18±1 22±1 45 100
14 V18011 4 19.5±1 / 9±1 32±1 36±1 85 165
15 V18011A 4 20.5±1 / 11±1 32±1 36±1 60 135
16 V18011B 3 28±1 32.5±1 12±0.8 17.8±1 24±1 55 115
17 V18012 4 30±1 / 13±0.8 34±1 39±1 110 190
18 V18013 5 16.5±1 29.5±1 5±0.8 / / 70 150
19 V18017 14 42±1 41±1 17.5±1 50±1 / 170 290
20 V18018 3 29±1 33±1 15±0.8 15.5±1 21.5±1 35 90
21 V18019 1 19.5±1 18±1 8±0.8 35±1 5.5±1 100 155
22 V18020 3 24±1 28±1 10±0.8 13.5±1 19±1 40 90
23 V18021 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1 65 140
24 V18023 6 19±0.5 19.5±0.5 6.8±0.8 52.5±1 4±1 150 330
25 V18024 1 17.8±1 16.8±1 6.3±0.8 36.6±1 3±1 130 210
26 V18025 12 31±1 30±1 13±0.8 32±1 37±1 160 210
27 V18030 1 19.5±1 / 9.5±1 25.5±1 / 70 130
28 V18031 2 15±1 14±1 5±1 23±1 / 70 150
29 V18032 1 19.5±1 18.0±1 5.0±1 35±1 / 140 280
30 V18033 4 19.5±1 / 8±1 32±1 36±1 100 155
31 V18034 10 31.2±0.5 29.6±0.5 14±0.6 40.8±0.5 / 140 225
32 V18037 4 31±1 30.5±1 14±1 34±1 39.5±1 160 190
33 V18038 13 60±1 42.5±1 26±1 55±1 / 220 270
34 V18039 14 39.5±1 46.5±1 21±1 40±1 / 115 220
Applications:
  • 13mm / 0.51in (inner diameter): suitable for 0.35 - 0.51in / 9 - 13mm cables
  • Application: HDMI Cable, IP Line of Communication, DVI Cable, Overstriking VGA Cable etc.

V19001 F9 Ferrite Core Ring Magnet for EMI Suppression and Cable Noise Filtering
V19001 F9 Ferrite Core Ring Magnet for EMI Suppression and Cable Noise Filtering

Our service

Sample
Sample Fee: Negotiate
Sample Time: 3~5 days

Payment
---Payment terms: Western Union, T/T
---Please remember to leave the correct contact information for delivery.
