SMPS AC Single Phase RFI Filter 150KHz-30MHz 10A Rated Current for Medical Equipment

Brand Name: VIIP
Model Number: VIP4-1A-10
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Rated Current:
10A
Supply Ability:
2000 pcs within 10-15 days
Highlight:

SMPS AC EMI Filter 10A medical

,

Single Phase RFI Filter 150KHz-30MHz

,

Medical Equipment AC Filter with warranty

Product Description
SMPS AC Single Phase RFI Filter
EMC EMI RFI Power Filter 150KHZ

General purpose single phase AC power line filters designed for electromagnetic compatibility and interference suppression.

Technical Specifications
Item Specification
Model Power line Filter VIP4
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 0.5~300A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 1.0mA Max
MOQ 5pcs
Port Shenzhen
Lead Time 5~15 working days
Applications
  • Electrical and electronic equipment
  • Medical equipment
  • Building automation
  • Office automation and datacom equipment
Product Features
  • General purpose AC filters with good attenuation frequency range 150KHz-30MHz
  • VIP4 -1A and VIP4 -1B series are one-stage commonmode filters with almost the same filtering performance, only slight differences in current ratings
  • Compact structure, high performance-cost ratio, easy to install, safe and reliable
  • High voltage versions above 380VAC are also available
Additional Options
  • Rated current: 0.5A-300A
  • Various terminals: wire, solder lug, stud, terminal block, etc.
  • Optional medical versions (H type)
  • Custom specific versions are available on request
Product Models & Specifications
Part No. Rated Current [A] Leakage Current [mA] Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP1-1A-01 1A <0.5mA Fig 1 Fig 1 - 65
VIP1-1A-03 3A <0.5mA Fig 1 Fig 1 - 65
VIP1-1A-06 6A <0.5mA Fig 1 Fig 1 - 65
VIP1-1A-10 10A <0.5mA Fig 2 Fig 1 - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 1900
Product Images

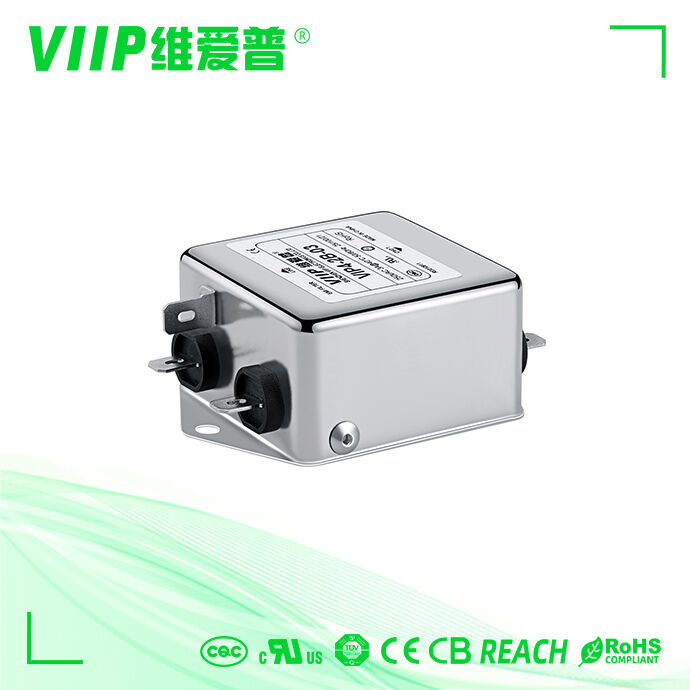

SMPS AC Single Phase RFI Filter 150KHz-30MHz 10A Rated Current for Medical Equipment 0 SMPS AC Single Phase RFI Filter 150KHz-30MHz 10A Rated Current for Medical Equipment 1
Sample Information

Sample Fee: Negotiable

Sample Time: 2~5 days

Purpose of Power Filters
The purpose of a power filter is to clean and stabilize the electrical power supply. It is designed to reduce electromagnetic interference and noise in the power line, ensuring that the connected equipment receives a clean and consistent power signal. This helps to improve the performance and reliability of electronic devices and prevents damage from power surges, spikes, and other electrical disturbances. Power filters are commonly used in audio and video systems, computer equipment, and other sensitive electronics to ensure a stable and high-quality power supply.
