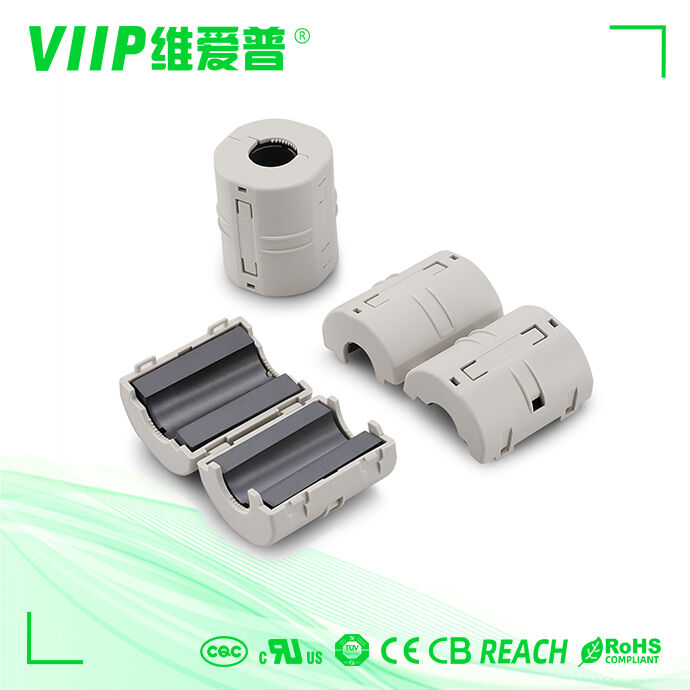

17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering

Brand Name:	VIIP
Model Number:	V18017
MOQ:	100PCS
Price:	Negotiable
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Rohs Reach

Document:

Type:

Iron Powder Core

Material:

Product Name:

Ferrite Materials

Application:

Cable Noise Suppression

Color:

Black

Model:

V18017

Installation:

Easy To Snap Onto Cables

Compatibility:

Suitable For Various Cable Types

Mounting Type:

Snap-On

Operating Temperature:

-25°C To 85°C

Manufacturer:

Various Manufacturers Available

Durability:

Long-lasting

Country Of Origin:

China

Impedance:

Various Options Available

Certifications:

RoHS, REACH,

Package Type:

Material:

Ferrite

Frequency Range:

1MHz To 1GHz

Size:

Various Sizes Available

Supply Ability:

5k For one week

Highlight:

17mm snap-on ferrite core ring

ferrite ring for cable noise suppression

EMI filtering ferrite cable ring

Product Description

Clip On Ferrite Core For Transformer

Transformer Ferrite Core Rings for Cables and Welding Transformers - ROHS & REACH Compliant

Product Overview

17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering 0

Dimensions

Initial Permeability	850	Relative Loss Factor	16(0.1MHz)
Relative Temperature Coefficient	5~10	Saturation Magnetic Flux Density	350(1600A/m)
Remanence	200	Coercivity	20
Curie Temperature	>110	Electrical Resistivity	10 to the fifth power
Applied Frequency Range	1-1000	Density	4.7

No.	Specifications	Fig	Dimensions:mm					Impedance(Ω)min
No.	Specifications	Fig	ΦA	B	ΦC	D	E	25MHz	100MHz
1	V18001A	1	13±1	11.8±1	3.5±0.8	25.2±1	2.5±1	135	260
2	V18001	1	13±1	12±1	5±0.8	25.2±1	2.5±1	90	190
3	V18002	1	16.5±1	14±1	7±0.8	30±1	2.5±1	80	195
4	V18002C	5	20.7±1	39.4±1	7.2±0.5	/	/	120	220
5	V18003	1	19.5±1	18±1	9±0.8	35±1	5.5±1	100	240
6	V18004	1	23.5±1	22.2±1	13.5±0.8	36±1	10.5±1	90	190
7	V18005	2	17.5±1	19.5±1	6.5±0.8	32.5±1	/	135	330
8	V18006	2	22±1	23.5±1	10±0.8	33±1	/	90	250
9	V18007	2	29±1	30±1	13±0.8	32.2±1	/	160	280
10	V18008	3	19.5±1	23±1	8±0.8	17±1	23±1	70	140
11	V18009	3	19.5±1	23±1	8±0.8	19.5±1	26±1	80	160
12	V18010	4	15±1	14±1	7±1	18±1	22±1	45	125
13	V18011	4	19.5±1	/	9±1	32±1	36±1	105	185
14	V18011A	4	20.5±1	20.5±1	11±0.8	32±1	36±1	80	155
15	V18011B	3	28±1	31±1	11.4±0.8	17.5±1	23.5±1	75	135
16	V18012	4	30±1	/	13±0.8	34±1	39±1	125	230
17	V18013	5	16.5±1	29.5±1	5±0.8	/	/	80	165
18	V18017	4	40.5±1	/	17±1	49.8±1	/	200	350
19	V18018	3	29±1	33±1	15±0.8	15.5±1	21.5±1	55	110
20	V18019	1	19.5±1	18±1	8±0.8	35±1	5.5±1	120	175
21	V18020	3	24±1	27±1	10±0.8	13.5±1	19±1	60	110
22	V18021	1	11.7±1	10.8±1	4±0.8	21.4±1	2.6±1	90	160
23	V18031	2	15±1	14±1	6±1	23±1	/	80	160
24	V18032	1	19.5±1	18.0±1	5.0±1	35±0.8	/	190	320
25	V18033	4	19.5±1	/	8±0.8	32±1	36±1	120	175

Product Characteristics

This ferrite ring is non-magnetic and features excellent eddy current isolation, low permeability, and superior interference suppression capabilities.

Technical Specifications

Applications

Widely used in power transformers, current transducers, instrument transformers, inductors, chokes, ballasts, voltage stabilizers and regulators, welding transformers, broad band transformers, filters, and various EMI/EMC applications.

Frequently Asked Questions

About VIIP

Q: Are you a manufacturer or trading company?

Shenzhen VIIP is a manufacturer of EMI/EMC products located in Shenzhen, Guangdong, China.

About Products

Q: What certification do you have for your products?

We have obtained CE, ROHS, FCC certifications and more.

About Sample Order

Q: Can I have a sample order for your products?

Yes, we offer product samples, including mixed samples.
