Clip On Ferrite Core

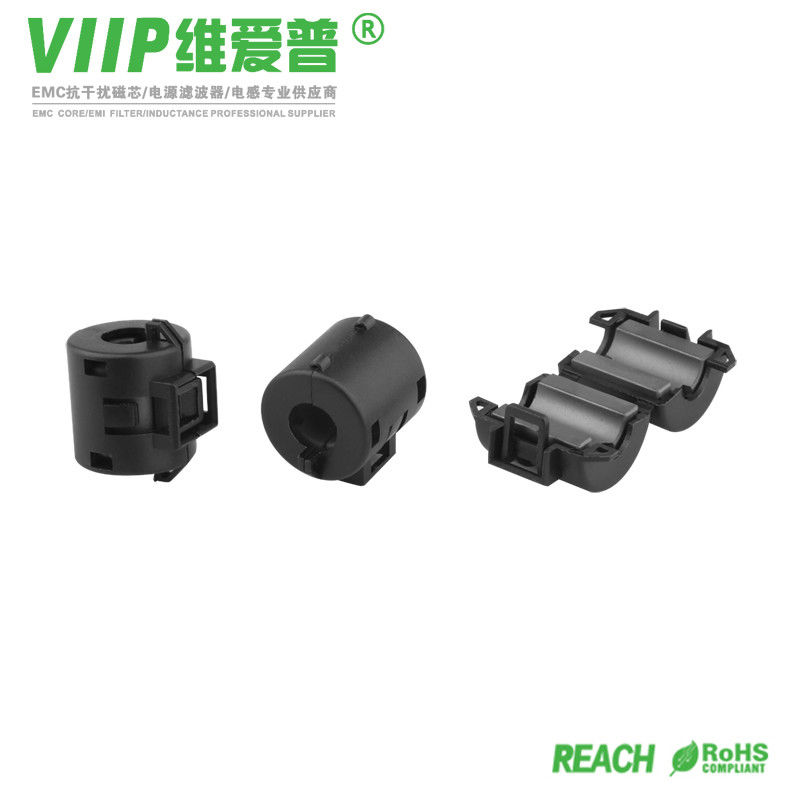

9mm Inner Size Clip On Ferrite Core with Plastic Cover for Car Cables EMI Suppression

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

9mm Inner Size Clip On Ferrite Core with Plastic Cover for Car Cables EMI Suppression

Brand Name:	VIIP
Model Number:	V18002
MOQ:	Negotiable
Price:	0.25
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Rohs Reach

Document:

Features:

Ferrite Core With Plastic Cover

Applications:

HDMI Cable, VGA Cable, DVI Cable, Power Line, Loudspeaker Cable, Industrial Cable

Description:

RFI EMI Noise Suppressor Cable Clip

Benefits:

Helps To Reduce EMI On AC Power Lines

Application:

Car Cables

Type Of Composite:

Ferrite Magnet

Supply Ability:

5k For one week

Product Description

V18003 Power Line Clip On Ferrite Core

The ultimate composite solution for EMI reduction and signal integrity improvement in automotive and industrial applications.

Product Overview

The V18003 Clip On Ferrite Core is a versatile electromagnetic compatibility component designed specifically for automotive cable applications. This high-quality ferrite core inductor effectively reduces electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring optimal performance and signal integrity in vehicle electronic systems.

Key Features

Superior noise suppression for enhanced signal quality
Snap-on design for easy installation and removal
Durable plastic cover for enhanced protection
High-quality ferrite magnet material construction
Sleek black color for professional appearance
Compact size suitable for various cable types

Technical Specifications

Type of Composite	Ferrite Magnet
Brand Name	VIIP
Model Number	V18003
Inner Size	9mm
Type	Snap-on
Color	Black
Place of Origin	Guangdong, China

Applications

Ideal for use with various cable types including:

HDMI Cables
VGA Cables
DVI Cables
Power Lines
Loudspeaker Cables
Industrial Cables

Certifications & Compliance

ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH

Initial Permeability	850	Relative Loss Factor	16(0.1MHz)
Relative Temperature Coefficient	5~10	Saturation Magnetic Flux Density	350(1600A/m)
Remanence	200	Coercivity	20
Curie Temperature	>110	Electrical Resistivity	10 to the fifth power
Applied Frequency Range	1-1000	Density	4.7

No.	Specifications	Fig	Dimensions:mm					Impedance(Ω)min
No.	Specifications	Fig	ΦA	B	ΦC	D	E	25MHz	100MHz
1	V18001A	1	13±1	11.8±1	3.5±0.8	25.2±1	2.5±1	135	260
2	V18001	1	13±1	12±1	5±0.8	25.2±1	2.5±1	90	190
3	V18002	1	16.5±1	14±1	7±0.8	30±1	2.5±1	80	195
4	V18002C	5	20.7±1	39.4±1	7.2±0.5	/	/	120	220
5	V18003	1	19.5±1	18±1	9±0.8	35±1	5.5±1	100	240
6	V18004	1	23.5±1	22.2±1	13.5±0.8	36±1	10.5±1	90	190
7	V18005	2	17.5±1	19.5±1	6.5±0.8	32.5±1	/	135	330
8	V18006	2	22±1	23.5±1	10±0.8	33±1	/	90	250
9	V18007	2	29±1	30±1	13±0.8	32.2±1	/	160	280
10	V18008	3	19.5±1	23±1	8±0.8	17±1	23±1	70	140
11	V18009	3	19.5±1	23±1	8±0.8	19.5±1	26±1	80	160
12	V18010	4	15±1	14±1	7±1	18±1	22±1	45	125
13	V18011	4	19.5±1	/	9±1	32±1	36±1	105	185
14	V18011A	4	20.5±1	20.5±1	11±0.8	32±1	36±1	80	155
15	V18011B	3	28±1	31±1	11.4±0.8	17.5±1	23.5±1	75	135
16	V18012	4	30±1	/	13±0.8	34±1	39±1	125	230
17	V18013	5	16.5±1	29.5±1	5±0.8	/	/	80	165
18	V18017	4	40.5±1	/	17±1	49.8±1	/	200	350
19	V18018	3	29±1	33±1	15±0.8	15.5±1	21.5±1	55	110
20	V18019	1	19.5±1	18±1	8±0.8	35±1	5.5±1	120	175
21	V18020	3	24±1	27±1	10±0.8	13.5±1	19±1	60	110
22	V18021	1	11.7±1	10.8±1	4±0.8	21.4±1	2.6±1	90	160
23	V18031	2	15±1	14±1	6±1	23±1	/	80	160
24	V18032	1	19.5±1	18.0±1	5.0±1	35±0.8	/	190	320
25	V18033	4	19.5±1	/	8±0.8	32±1	36±1	120	175

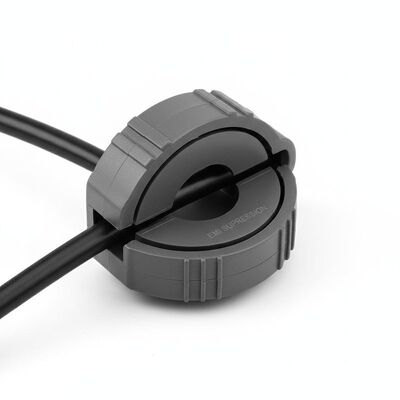

Product Images

Technical Support & Services

Our dedicated technical support team provides comprehensive assistance with installation, troubleshooting, and usage guidance. We offer product training, warranty support, and repair services to ensure optimal performance.

Packaging & Shipping

Each unit includes one Clip On Ferrite Core securely packaged. Dimensions: 1 inch x 0.5 inch. Standard delivery within 3-5 business days.

Frequently Asked Questions

What is the brand name of this Clip On Ferrite Core product?

The brand name is VIIP.

What is the model number of this Clip On Ferrite Core product?

The model number is V18002.

Where is this Clip On Ferrite Core product manufactured?

This product is manufactured in China.

What are the payment terms accepted for purchasing this product?

Accepted payment terms are T/T and Western Union.

What is the supply capability of this product?

Supply capability is 5,000 units per week.
