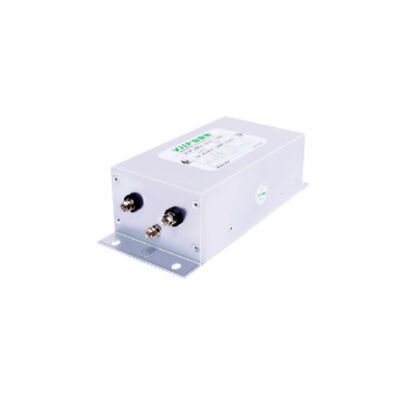

DC EMI Filter with 10µH to 100µH Inductance 60VDC Rated Voltage and 50dB Min Insertion Loss for Effective EMI Noise Filtering

Brand Name:	Weiaipu
Model Number:	VIP2

Detail Information

Product Description

Detail Information

Inductance:

Specified Per Model (e.g., 10µH To 100µH)

Current:

10A-100A

Case:

Metal

Leakage Current:

0.5mA Max

Rated Voltage:

60VDC

Product:

DC EMI FILTER

Insertion Loss:

50dB Min

Dielectricwithstandvoltage:

Typically 250V DC Or Higher

Highlight:

10µH to 100µH Inductance DC EMI Filter

60VDC Rated Voltage EMI Power Line Filter

50dB Min Insertion Loss Inverter EMI Filter

Product Description

DC EMI Filters for Effective Noise Suppression

Our DC EMI Filters are essential components designed to suppress electromagnetic interference (EMI) in direct current power lines, ensuring stable and reliable operation of electronic devices and systems. These filters improve electromagnetic compatibility (EMC) by minimizing unwanted noise and disturbances that can affect sensitive electronic circuits.

Key Specifications

Inductance Range	10µH to 100µH
Current Rating	10A to 100A
Dielectric Withstand Voltage	250V DC or higher
Leakage Current	0.5mA maximum
Housing Material	Metal or Plastic Options
Termination Styles	Fast On, Wire Leads, Screw Terminals

Product Features

Effective EMI suppression for DC power systems
Robust dielectric withstand voltage (250V DC+)
Available in metal or plastic housing options
Multiple termination styles for flexible installation
Wide current handling range from 10A to 100A
Low leakage current (0.5mA max) for safety and efficiency
Suitable as inverter EMI filter for power electronics
Enhanced electromagnetic compatibility performance

Applications

Our DC EMI Filters are widely used across various industries including:

Power conversion systems and inverters
Renewable energy systems (solar power inverters)
Industrial automation equipment
Telecommunications and data centers
Medical devices and equipment
Automotive electronics

Customization Options

We offer customized DC EMI Filters under the VIP2 model series, manufactured in Shenzhen to meet your specific requirements. Our filters feature 50Ω input impedance and support current ratings from 10A to 100A, with inductance values ranging from 10µH to 100µH for precise tuning of filter characteristics.

Technical Support & Services

Comprehensive technical documentation including datasheets and installation guides are available on our website. Our technical support team provides assistance with product selection, application advice, and troubleshooting to ensure optimal performance. Replacement parts and accessories are available to support your ongoing needs.

Frequently Asked Questions

What is the brand name of the DC EMI Filter model VIP2?

The brand name is Weiaipu.

Where are Weiaipu VIP2 DC EMI Filters manufactured?

These filters are manufactured in Shenzhen, China.

What is the primary function of these DC EMI Filters?

The primary function is to suppress electromagnetic interference in DC power systems, ensuring stable and clean power supply.

Are these filters suitable for automotive or industrial applications?

Yes, they are designed for various applications including automotive, industrial, and other DC power environments where EMI suppression is required.

What are the key benefits of using Weiaipu VIP2 DC EMI Filters?

Key benefits include effective noise reduction, improved system reliability, compact design, and ease of installation.
