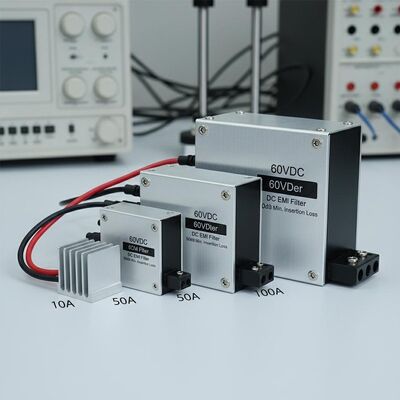

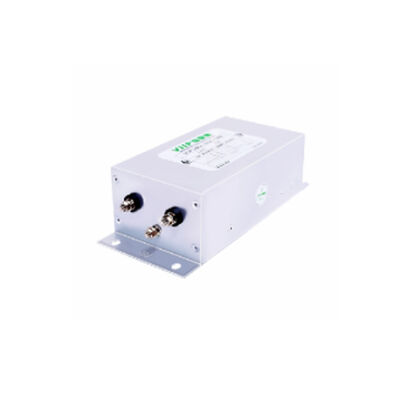

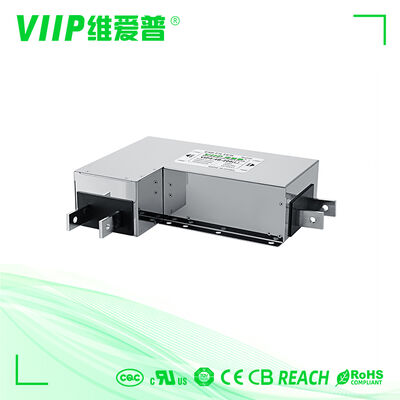

60VDC Rated Voltage DC EMI Filters with 10A to 100A Current and 50dB Min Insertion Loss for Power Electronics Systems
  • name
  • name

60VDC Rated Voltage DC EMI Filters with 10A to 100A Current and 50dB Min Insertion Loss for Power Electronics Systems

Brand Name: Weiaipu
Model Number: VIP2
Detail Information
Product Description
Detail Information
Current:
10A-100A
Temperature:
25/085/21
Rated Voltage:
60VDC
Leakage Current:
0.5mA Max
Housing:
Metal
Terminationstyle:
Fast On / Wire Leads/screw
Insertion Loss:
50dB Min
Inductance:
Specified Per Model (e.g., 10µH To 100µH)
Highlight:

60VDC Rated Voltage DC EMI Filters

,

10A to 100A Current EMI Power Filters

,

50dB Min Insertion Loss DC Line Noise Filters

Product Description
Weiaipu VIP2 DC EMI Filters
Essential components designed to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) in electrical and electronic applications. These filters enhance performance and reliability of power electronics by ensuring clean, stable DC power delivery.
Key Specifications
Parameter Specification
Rated Voltage 60VDC
Current Range 10A to 100A
Insertion Loss 50dB Minimum
Inductance Range 10µH to 100µH (model dependent)
Capacitance Range 0.01µF to 0.1µF (model dependent)
Termination Styles Fast On, Wire Leads, Screw
Housing Material Metal
Product Features
  • Leakage Current: 0.5mA Maximum
  • Dielectric Withstand Voltage: Typically 250V DC or Higher
  • Metal Housing for Superior Shielding and Durability
  • Effective EMI Power Filter for DC Applications
  • Suitable for EMI Filter SMD Applications
  • High-Performance Noise Suppression
Applications
Weiaipu VIP2 DC EMI Filters provide superior electromagnetic interference suppression across multiple industries and applications:
  • Automotive Electronics and Control Systems
  • Industrial Power Supplies and Motor Drives
  • Renewable Energy Systems and Inverters
  • Telecommunications Equipment
  • Medical Devices and Diagnostic Equipment
  • Consumer Electronics and Power Conversion Systems
Customization Options
Weiaipu offers customized DC EMI Filters under model VIP2, manufactured in Shenzhen. Our EMI Power Filter solutions are tailored to meet specific requirements with input impedance of 50Ω and specialized DC EMI filter transfer function. Customization options include specific capacitance values (0.01µF to 0.1µF), current capacities from 10A to 100A, and specialized designs for automobile air filters and compact EMI Filter SMD applications.
Support & Services
Our comprehensive support includes technical assistance for product selection, installation guidance, and troubleshooting. We provide custom filter design, testing, and certification support with detailed datasheets and application notes. Installation support includes wiring diagrams, layout practices, and safety precautions. After-sales services include warranty support, repair, and replacement options to ensure continuous equipment operation.
Frequently Asked Questions
What is the brand name of the DC EMI Filter model VIP2?
The brand name is Weiaipu.
Where is the Weiaipu VIP2 DC EMI Filter manufactured?
Manufactured in Shenzhen.
What is the primary function of the Weiaipu VIP2 DC EMI Filter?
To suppress electromagnetic interference (EMI) in DC power lines to ensure stable and reliable operation of electronic devices.
Can the Weiaipu VIP2 DC EMI Filter be used in automotive applications?
Yes, it is suitable for automotive and other DC power applications where reducing EMI is critical.
What are the typical input and output voltage ratings?
Designed for standard DC voltage levels used in industrial and automotive systems. Please refer to the datasheet for specific voltage ratings.
