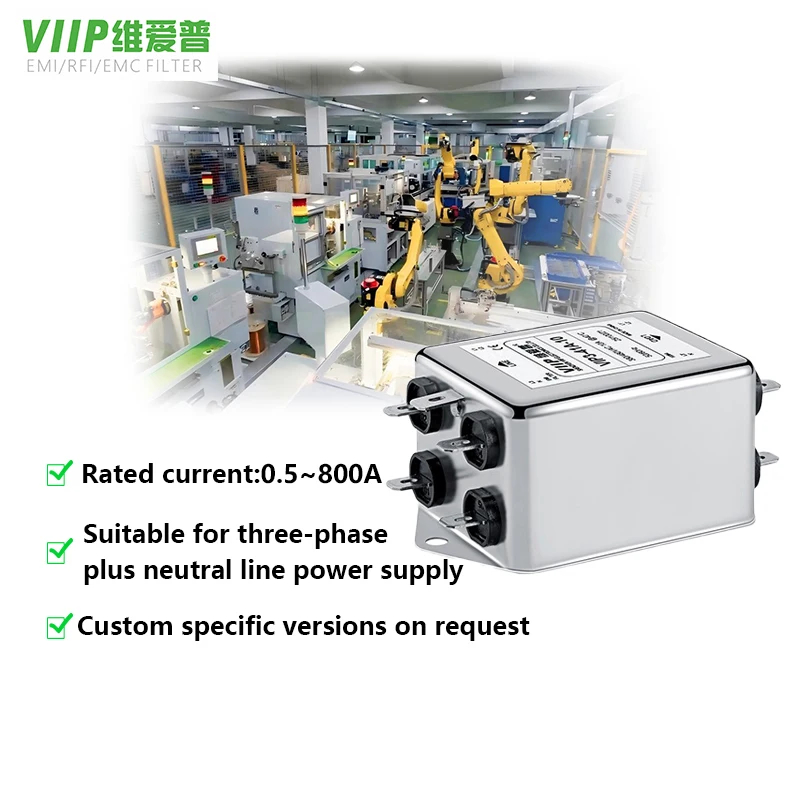

380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation

Brand Name:	VIIP
Model Number:	VIP3-41A
MOQ:	1pcs
Price:	15USD
Packaging Details:	333318
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Input Impedance:

500VDC/100MOHM MIN

Rated Voltage:

110/250VAC

Rated Current:

0.5A-800A

Type:

EMC Filter

Insertion Loss:

60dB-90dB

Certification:

CE ROHS,CE CQC,UL.TUL

Supply Ability:

2000 pcs within 10-15 days

Highlight:

380V Input AC EMI Filter

20A Rated Current EMC Filter

440V Rated Voltage Low Pass Filter

Product Description

380V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

The 380V Input AC EMI Filter is designed for building automation systems and print machine hardware equipment, featuring a compact structure for space-limited applications.

Quick Specifications

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certifications: UL, TUV, ISO9001, CE, ROHS

Product Description

This three-phase three-line power supply EMI filter features a compact structure for simple, time-saving installation. Its space-efficient design makes it ideal for applications with limited space while offering high cost-effectiveness.

Applications

Widely used in various electrical units including print machines, packing machines, textile equipment, industrial air conditioners, UPS systems, and medical equipment.

Our Advantages

Global Sales Network

Products exported to Europe, the United States, South Korea, Southeast Asia and other regions.

Advanced Hardware Equipment

Fully automatic magnetic material detection equipment and production lines with anti-interference magnetic core production base.

Integrated Technical Service

Combining R&D, production, sales of anti-interference (EMC) electronic components with EMC testing services.

Quality Management

Strict quality standards implementation with continuous improvement processes focused on customer requirements.
