AC EMI Filter
>

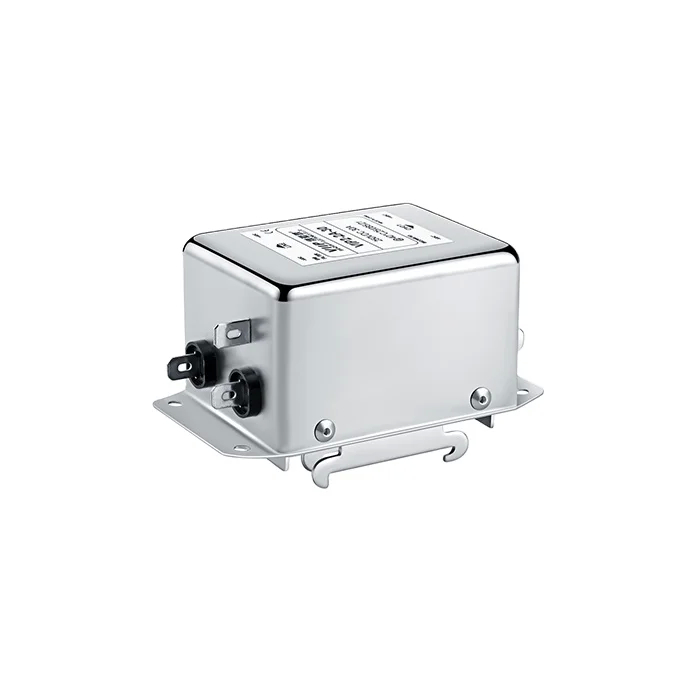

110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

Brand Name: VIIP
Model Number: VIP3-41A
MOQ: 1pcs
Price: 5USD
Packaging Details: 33*33*18
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Input Impedance:
500VDC/100MOHM MIN
Rated Voltage:
110/250VAC
Rated Current:
0.5A-800A
Type:
EMC Filter
Insertion Loss:
60dB-90dB
Certification:
CE ROHS,CE CQC,UL.TUL
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Low Pass Transfer Function AC EMI Filter

,

Compact Structure EMI Filter

,

High Insertion Loss EMC Filter

Product Description
110V 250V Input AC EMI Filter For Building Automation TUV 20A
Input AC EMI Filter For Building Automation Print Machine Hardware Equipment
Quick Detail
  • Model Number: VIP4-1A-20
  • Type: EMI Filter
  • Place of Origin: China
  • Brand Name: VIIP
  • Transfer Function: Low Pass
  • Nominal Center Frequency: 150KHz-30MHz
  • Input Impedance: 50Ω
  • Insertion Loss: 20~100dB
  • Item: Low Pass EMI Filter
  • Rated Voltage: 440V
  • Rated Current: 0.5A-800A
  • Environmental Temp: 50°C
  • Temperature Range: 25 / 085 / 21
  • Operating Frequency: 50/60HZ
  • Line to Ground: 2250VDC or 2000VAC
  • Certificate: UL TUV ISO9001 CE ROHS
Description
Suitable for three phase three line power supply. Compact structure, simple and time-saving installation, specially suitable for applications with limited space, highly cost effective.
Specifications
110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation 0 110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation 1
Applications
Widely used in various electrical units with connection style, such as print machine, packing machine, textile equipment, industry air conditioner, UPS, medical equipment, etc.
110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation 2 110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation 3
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements.
