Product Description:

The Single Phase EMI Filter is an essential component for any electrical system requiring effective suppression of electromagnetic interference. Also known as a Single Phase Electromagnetic Interference Suppress Circuit or Single Phase Power Cleaner, this filter is designed to provide reliable performance and protect sensitive equipment from unwanted noise and interference.

With a rated current that varies depending on the specific model chosen, this EMI filter is suitable for a wide range of applications and can effectively handle different levels of current flow. Whether used in industrial machinery, medical equipment, or other electronic devices, this filter ensures optimal performance by reducing electromagnetic interference to a minimum level.

One of the key features of the Single Phase EMI Filter is its exceptional attenuation capability, providing a minimum of 20dB attenuation to effectively filter out unwanted interference signals. This high level of attenuation ensures that the connected equipment receives clean and stable power, resulting in improved performance and reliability.

In terms of safety and durability, this EMI filter is built to withstand high voltages, with a withstand voltage rating of at least 1500VAC for 1 minute. This robust construction ensures that the filter can handle voltage spikes and surges without compromising its functionality, providing peace of mind for users concerned about equipment protection.

The frequency range of the Single Phase EMI Filter covers a wide spectrum from 150 KHz to 30 GHz, allowing it to effectively filter out interference signals across various frequency bands. Whether dealing with high-frequency noise or lower frequency disturbances, this filter can effectively suppress unwanted signals to maintain a clean power supply for connected equipment.

When it comes to installation and integration, the Single Phase EMI Filter offers flexibility in terms of dimensions, with sizes varying depending on the specific model chosen. This enables users to select the most suitable filter size for their application, ensuring a proper fit and seamless integration into the existing electrical system.

In conclusion, the Single Phase EMI Filter is a reliable and effective solution for combating electromagnetic interference and ensuring the smooth operation of electronic equipment. With its variable rated current, high attenuation capability, robust construction, wide frequency range, and flexible dimensions, this filter provides comprehensive protection and performance enhancement for a variety of applications.

Features:

• Product Name: Single Phase EMI Filter
• Storage Temperature: -40℃~+85℃
• Rohs Compliant: Yes
• Port: Shenzhen
• Operating Frequency: 50/60HZ
• Input Impedance: 500VDC/100MOHM MIN

Technical Parameters:

Applications:

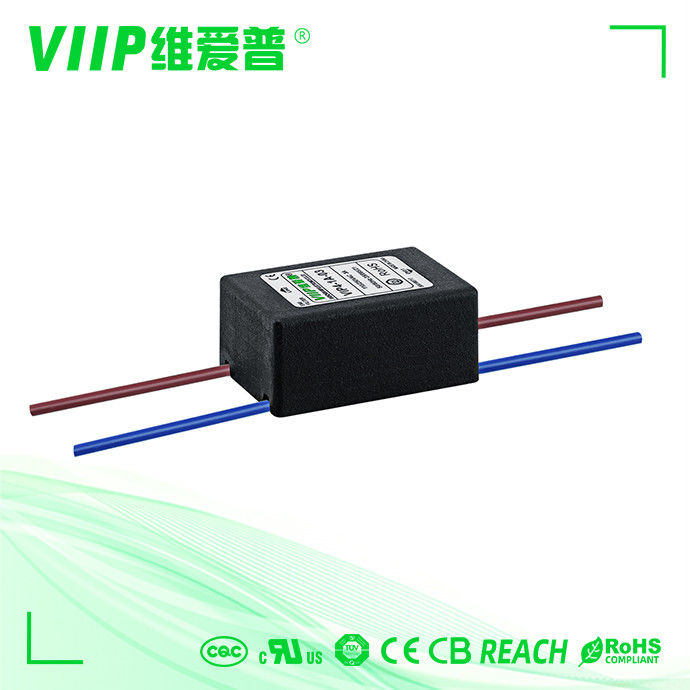

The VIIP WeiAiPu VIP4-1B-10 Single Phase EMI Filter is a high-performance product designed for critical electronic applications that require effective electromagnetic interference suppression. This Single Stage Input Filter is an essential component for ensuring the smooth operation of sensitive electronic equipment in various industries.

With certifications including CE, TUV, UL, and CQC, this Single Phase Interference Rejection Module guarantees reliable performance and compliance with industry standards. Originating from China, this product boasts a minimum order quantity of 1 PCS, making it accessible for both small and large-scale applications.

The VIP4-1B-10 EMI Filter features a nominal center frequency of 50/60Hz and a frequency range extending from 10KHZ to 30MHZ, providing comprehensive interference suppression across a wide spectrum. Its impedance is kept below 1.5Ω to ensure optimal performance in mitigating electromagnetic noise.

Equipped with solder pins for easy termination, this Single Phase Electromagnetic Interference Suppress Circuit offers a convenient installation process. The product's packaging details of 33*33*18 reflect a compact and secure delivery method, with a delivery time of 5-10 days for samples.

Customers can benefit from negotiable pricing and flexible payment terms of T/T, making the VIP4-1B-10 EMI Filter a cost-effective solution for their applications. With a supply ability of 2000 pcs within 10-15 days, this product ensures quick availability to meet urgent project requirements.

In conclusion, the VIIP WeiAiPu VIP4-1B-10 Single Phase EMI Filter is an indispensable component for achieving reliable interference suppression in critical electronic systems. Its high-performance capabilities and versatile applications make it an ideal choice for various scenarios requiring Single Phase EMI filtering solutions.

Support and Services:

The Product Technical Support and Services for the Single Phase EMI Filter product include:

- Assistance with installation and setup of the EMI filter

- Troubleshooting services for any issues related to the EMI filter

- Guidance on proper maintenance and care for optimal performance

Packing and Shipping:

Product: Single Phase EMI Filter

Description: This EMI filter is designed to reduce electromagnetic interference in single-phase electrical systems.

Packaging:

- The EMI filter will be securely packed in a durable cardboard box to prevent any damage during transit.

- The box will be labeled with product details and handling instructions for easy identification.

Shipping:

- The EMI filter will be shipped via a reliable courier service to ensure timely delivery.

- Proper care will be taken to protect the product during shipping to prevent any potential damage.

FAQ:

Q: What is the brand name of the Single Phase EMI Filter?

VIIP WeiAiPu

Q: What is the model number of the Single Phase EMI Filter?

VIP4-1B-10

Q: What certifications does the Single Phase EMI Filter have?

CE, TUV, UL, CQC

Q: Where is the Single Phase EMI Filter manufactured?

China

Q: What is the minimum order quantity for the Single Phase EMI Filter?

1 PCS
