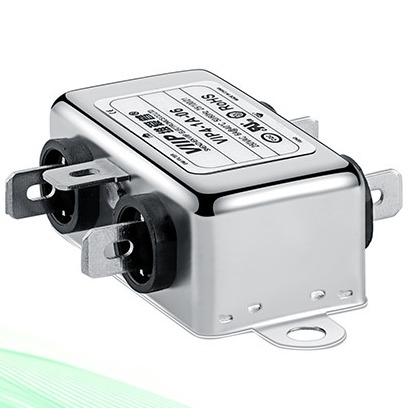

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Current:

Rated Voltage:

110/250VAC

Application:

Electronics Products

Transfer Function:

Low Pass

Filter Mount Style:

Flanged

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 MHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

AC Single Phase Line Filters

Automated Optical Inspection Line Filters

High Performance Line Filters

Product Description

High Performance AC Single Phase RFI Line Filters For Automated optical inspection

Quick Detail:

Input Impedance	50Ω
Model Number	VIP4-1A-10
Rated voltage	110V/250V
Type	AC EMI Filter
Transfer Function	Low Pass
Nominal Center Frequency	150KHZ~30MHZ
Certificated	ISO9001 CE ROHS cUL TUV
MOQ	1PCS
Package Type	Surface mounted

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Designed for general purpose, common mode and differential mode applications

Protection from pulsed, intermittent, or continuous RFI

Higher line-to-line attenuation for protection from pulsed, intermittent, or continuous RFI

FASTON, Stud, Wire Lead are available

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Electrical schematic:

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection 0

Mechanical Dimension(Unit: mm)

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection 1

Single-phase power filters are designed to suppress electromagnetic interference (EMI) and enhance power quality in 110V/120V or 220V/230V AC systems (50/60Hz). They are widely used in:

White Goods (Household Appliances)
- Refrigerators, air conditioners, washing machines, microwave ovens.
Smart Home & IoT Devices
- Home automation systems, smart lighting, security systems, voice assistants.
Smart Terminals & Consumer Electronics
- POS machines, kiosks, tablets, gaming consoles, laptops.
Power Supply Systems
- AC/DC adapters, switching power supplies, UPS (uninterruptible power supplies).
Power & Energy Equipment
- Solar inverters, energy storage systems, EV charging stations.
Electrical & Electronic Equipment
- Industrial control systems (PLCs, servo drives), CNC machines, lab instruments.
Medical Devices
- Diagnostic imaging (MRI, CT), patient monitors, portable medical equipment.
Datacom & Telecom Equipment
- Servers, routers, 5G base stations, data center power distribution.

High Performance AC Single Phase RFI Line Filters For Automated Optical Inspection 2
