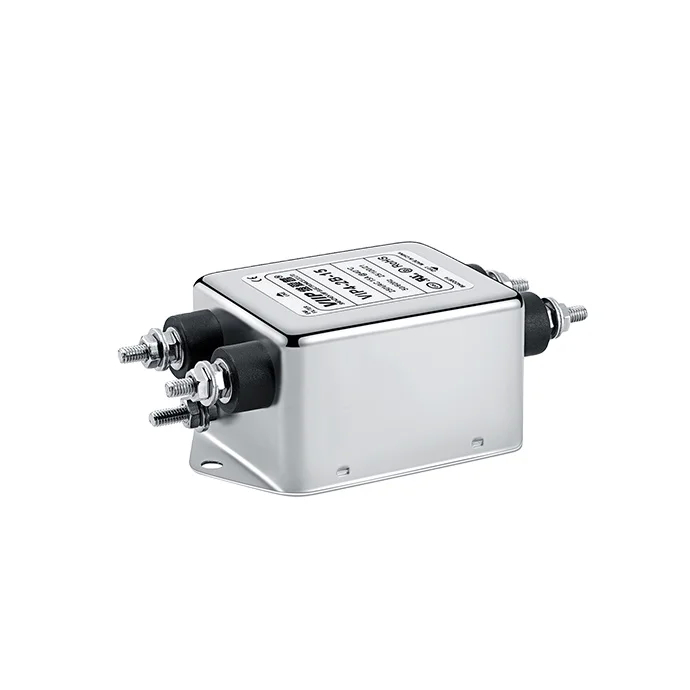

Customized Design 6A 220V AC EMI Filter for Electronic Equipments with Low Pass Transfer Function

Brand Name:	VIIP
Model Number:	VIP4-1A-06
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

Type:

EMC Filter

Rated Voltage:

110/250VAC

Nominal Center Frequency:

150KHZ~30MHZ

Certification:

CE ROHS

Application:

Led Products

Input Impedance:

500VDC/100MOHM MIN

Weight:

Dimensions:

100mm X 50mm X 30mm

Rated Frequency:

50/60Hz

Temperature Range:

25 / 085 / 21

Rated Voltage:

250VAC

Transfer Function:

Low Pass

Dielectric Strength:

1500VAC

Warranty:

90 Days

Operating Temperature:

-25°C To +85°C

Ambient Temperature:

-25℃~+85℃

Insulation Resistance:

100MΩ

Leakage Current:

0.5mA

Supply Ability:

2000 pcs within 10-15 days

Highlight:

220V AC EMI Filter

Electronic Equipments AC EMI Filter

Customized Design AC EMI Filter

Product Description

Electronic Equipments 6A 220V EMI Filter For LED applications faston terminal

Quick Detail:

Item	Power line EMI Filter
Model	VIP4-1A-06
Transfer Function	Low Pass
Package Type	Surface Mount
Frequency Range	150K-30MHZ
MOQ	1PCS
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	6A
Environmental Temperature	40°C

This 6A, 220Vac EMI noise suppressor is ideal for LED lighting and electronic devices, effectively reducing electromagnetic interference. It comes with FASTON connectors for quick and tool-free installation.

Key Features:

• Rated for 220Vac, 50/60Hz, with a max current of 6A

• Suppresses EMI noise by up to 35dB (500KHz–30MHz)

• Compact, space-saving design with flame-retardant, halogen-free materials

• FASTON tabs for easy plug-and-play wiring

• Complies with RoHS and EMC standards

Applications:

• LED lighting (panel lights, downlights, spotlights, floodlights)

• Electronics (computers, servers, medical devices, security cameras)

• Reduces power line noise, improving equipment stability

• Helps meet EMI/EMC regulatory requirements

This filter ensures clean power by blocking conducted interference in 220VAC systems, supporting up to 6A load. Its FASTON terminals simplify setup, saving installation time and effort.

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Sample

Sample Fee: Negotiate

Sample Time: 2~5 days

Payment

---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery.

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

About Service

Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
