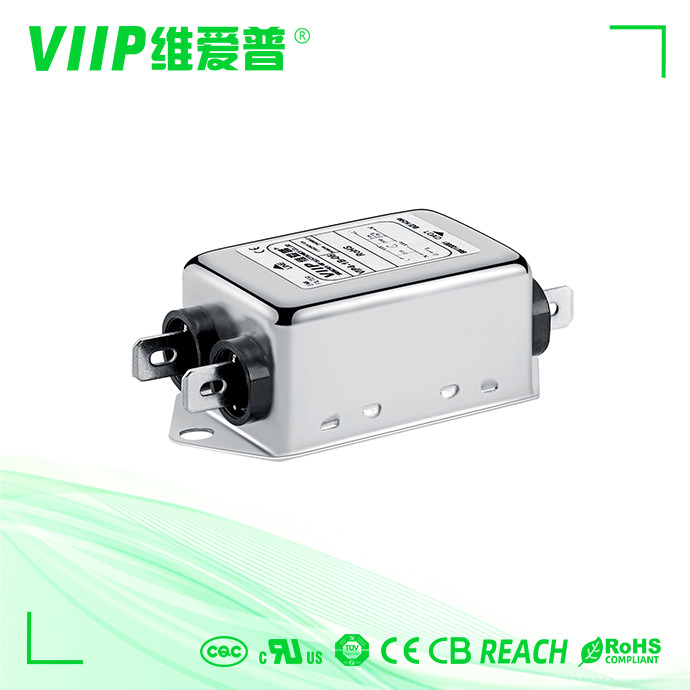

110V/250V AC EMI Filter with Terminal Block and Low Frequency Applications

Brand Name:	VIIP
Model Number:	VIP4-2B-20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV ROHS REACH

Type:

AC Single Filter

Rated Voltage:

110/250VAC

Transfer Function:

Low Pass

Application:

Electronic Equipments

Package Type:

Surface Mount

Certification:

CE ROHS,CE CQC

Manufacturer:

Various Manufacturers

Operating Frequency:

50/60HZ

Temperature Range:

25 / 085 / 21

Case:

METAL

Storage Temperature:

-20°C To 80°C

Mounting Type:

Panel Mount

Impedance:

Rated Current:

1A To 20A

Frequency Range:

50 Hz To 60 Hz

Current Rating:

Termination Style:

Screw Terminals

Rated Voltage:

120VAC To 240VAC

Stopband Attenuation:

20~100dB

Line To Line:

1760VDC

Dielectric Strength:

1500VAC For 1 Minute

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Terminal Block AC EMI Filter

250V AC EMI Filter

Low Frequency AC EMI Filter

Product Description

110V/250V Low Frequency AC Filter,Terminal Block,For Power Electronics

Quick Detail:

Item number	VIP4-2B-20
Package Type	Surface Mount
Nominal Center Frequency	10KHZ-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	20A
Environmental Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2200VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
PORT	Shenzhen
Lead Time	5~15 working days

Designed for 220VAC power lines, this 6A EMI filter minimizes electrical noise in LED and electronic applications, featuring hassle-free FASTON connections.

Highlights:

220Vac, 6A capacity at 50/60Hz
35dB noise reduction (500KHz–30MHz range)
Slim, non-toxic casing meeting flame safety and RoHS standards
Six FASTON tabs for no-screw, snap-in installation

Ideal For:

LED fixtures (panels, downlights, spot/floodlights)
Sensitive electronics (PCs, servers, medical/camera systems)
Mitigating interference from power circuits and cables
Enhancing device reliability and compliance with EMC rules

With robust EMI suppression and a 6A rating, this filter ensures stable operation in 220VAC setups. The FASTON tabs allow instant mounting, streamlining assembly and maintenance.

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

FAQ:

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.

Q6: How about the sample?
A: Free samples. You need to pay for Currier cost. Please contact us for details.

Q7: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
