3 Phase EMI Filter
>

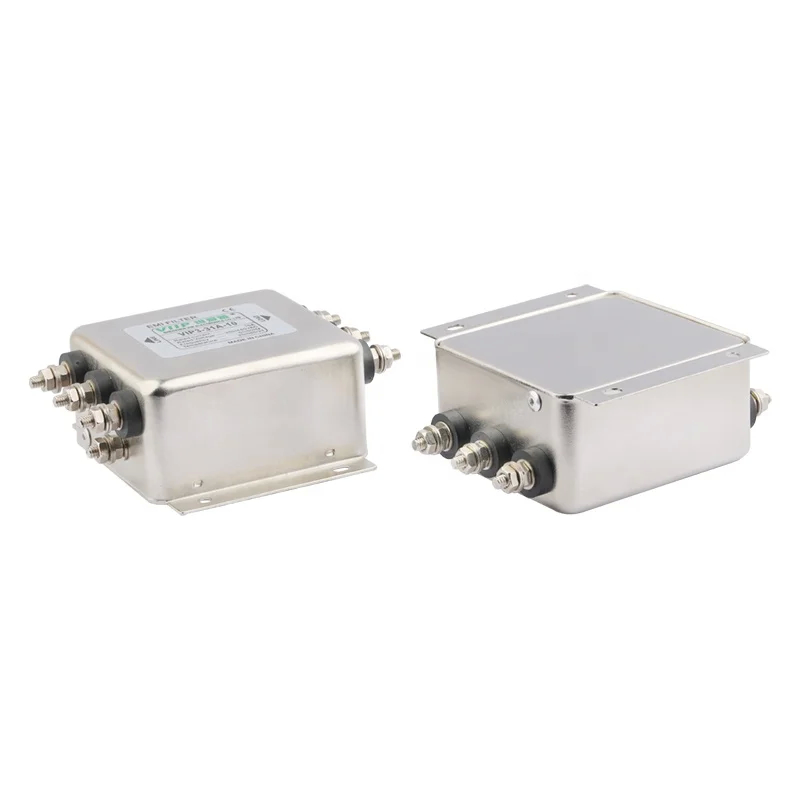

60~90dB Insertion Loss EMI/RFI Filter 380V/480V 500VDC For Automated Machines

60~90dB Insertion Loss EMI/RFI Filter 380V/480V 500VDC For Automated Machines

Brand Name: VIIP WeiAiPu
Model Number: VIP3-31A-10
MOQ: 1 PCS
Packaging Details: carton
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE TUV UL CQC
Insertion Loss:
60~90dB
Impedance:
50Ω
Rated Voltage:
380V/480V
Temperature Range:
25 / 085 / 21℃
Phase:
3
Weight:
1000g
Line To Line:
500VDC
Appliances:
• Automated Machines • CNC Machines • Variable Frequency Drives / Servo Drives • Medical Equipment Energy Storage Charging Pile
Input Impedance:
500VDC/100MOHM MIN
Frequency Range:
150 KHz To 30 GHz
Storage Temperature:
-40℃~+85℃
Item:
EMI Filter
Operating Frequency:
50/60HZ
Nominal Center Frequency:
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions:
Varies Depending On Model
Port:
Shenzhen
Termination Style:
Solder Pins
Rated Current:
Different
Weight:
290g-1000g
Insulation Resistance:
≥100MΩ
Rohs Compliant:
Yes
Humidity:
≤95%RH
Supply Ability:
2000PCS/WEEK
Highlight:

380V EMI/RFI Filter

,

480V EMI/RFI Filter

,

Automated Machines EMI/RFI Filter

Product Description

Product Description:

Our product offers a range of rated currents that span from 3 to 2000A, providing a versatile option for varied applications that require different current levels.

Additionally, our product boasts high attenuation performance that reaches up to 30 MHz, ensuring that any unwanted disturbances or signals are effectively removed from the circuit.

Our product is designed to operate with a voltage rating of 440VAC, ensuring its worldwide acceptance and compatibility with various systems and networks.

Lastly, our product has received several approvals, including the CE and ROHS certifications, which assure our customers of its quality and adherence to safety standards.



Features:

  • Product Name: 3 Phase EMI Filter
  • Weight: 1000g
  • Certification: CE ROHS TUV UL
  • Temperature Range: 25 / 085 / 21℃
  • Rated Voltage: 380V/480V
  • Material: Metal
  • Type: Power Filter, Line Filter, 3 Phase EMI Filter


Technical Parameters:

Product Attribute Value
Product Name 3 Phase EMI Filter
Line to Ground 2000VAC
Rated Voltage 380V/480V
Filter Type EMI
Appliances • Automated Machines
• CNC Machines
• Variable Frequency Drives / Servo Drives
• Medical Equipment Energy Storage Charging Pile
Frequency Range 50-60Hz
Insertion Loss 60~90dB
Certification CE ROHS TUV UL
Temperature Range 25 / 085 / 21℃
Weight 1000g
Impedance 50Ω


Applications:

Manufactured in Shenzhen, this top-quality filter has been certified by CE, Rohs, and TUV, so you can trust it to deliver excellent performance in a wide range of applications.

With a rated current of 10A, this EMI filter is perfect for use in a variety of settings, including industrial machinery, medical equipment, and data centers. It's designed to help eliminate electrical noise and other types of interference that can cause performance issues and even damage to your valuable equipment.

The Weiaipu VIP3-31A-10 3 phase EMI filter is also incredibly easy to use. Simply connect it to your power source and enjoy the peace of mind that comes from knowing your devices are protected from EMI and other types of interference.

Whether you're looking to protect your sensitive electronics from power surges, reduce noise in your audio system, or ensure reliable performance in your industrial equipment, the Weiaipu VIP3-31A-10 3 phase EMI filter is the ideal solution.

So why wait? Order your Weiaipu VIP3-31A-10 3 phase EMI filter today and experience the ultimate in power protection and performance!

Product Attributes:

  • Brand Name: Weiaipu
  • Model Number: VIP3-31A-10
  • Place of Origin: Shenzhen
  • Certification: CE, Rohs, TUV
  • Minimum Order Quantity: 1PCS
  • Packaging Details: Carton
  • Delivery Time: 5-7days
  • Payment Terms: T/T
  • Supply Ability: 2000PCS/WEEK
  • Rated Current: 10A
  • Phase: 3
  • Filter Type: EMI
  • Temperature Range: 25 / 085 / 21℃
  • Weight: 1000g


Support and Services:

- Expert guidance on the selection and installation of the right filter for your specific application

- Assistance with troubleshooting and resolving any issues that may arise during operation

- Ongoing maintenance and support to ensure optimal performance and longevity of the filter

- Access to our team of experienced engineers and technicians for any additional needs or questions



Packing and Shipping:

Product Packaging:

  • The 3 Phase EMI Filter will be packaged in a sturdy cardboard box to ensure safe transport.
  • The product will be wrapped in protective bubble wrap to prevent any damage during shipping.
  • Inside the box, you will find the 3 Phase EMI Filter along with an instruction manual.

Shipping:

  • The 3 Phase EMI Filter will be shipped via a reputable courier service.
  • Shipping will be free of charge.
  • Delivery times may vary depending on your location, but we will provide you with a tracking number so you can track your shipment.
  • If you have any issues with the product during shipping or delivery, please contact our customer service team for assistance.
