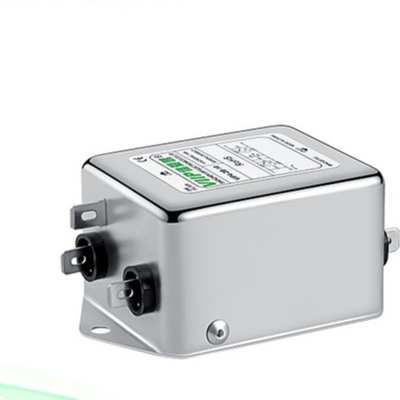

Product Description:

The AC EMI Filter is designed to handle line to line voltages up to 1760VDC, making it suitable for use in a variety of electrical cabinet air filter and air conditioner filter applications. Its input impedance of 50Ω ensures that it can handle high-frequency signals without distortion or loss of signal strength.

The filter's package type is surface mount, making it easy to install and integrate into existing systems. This also makes it a great choice for those looking for a compact filter that won't take up too much space in their electrical cabinet air filter system.

The AC EMI Filter is built to withstand harsh operating conditions. It can operate in temperatures ranging from -25℃ to +85℃, making it suitable for use in environments where temperatures can fluctuate significantly.

In summary, the AC EMI Filter is a high-performance filter that provides superior stopband attenuation, line to line voltage handling, and input impedance. Its surface mount package type makes it easy to install, and its ability to operate in extreme temperatures makes it suitable for use in a wide range of applications.

Features:

• Product Name: AC EMI Filter
• Input Impedance: 50 Ω
• Line To Line: 1760VDC
• Operating Frequency: 50/60Hz
• Termination Style: Screw Terminals, Quick Connect
• Stopband Attenuation: 20~100dB

This EMC EMI Filter is suitable for use as an Electrical Cabinet Air Filter, and can also be referred to as an EMI Filter SMD.

Technical Parameters:

Applications:

The AC EMI Filter is designed for through hole mounting and features both screw terminals and quick connect termination styles, providing flexibility for various installation scenarios. With a line to line voltage rating of 1760VDC, this filter is capable of handling high voltage applications with ease.

One common application for the AC EMI Filter is in industrial settings, where sensitive equipment and machinery may be susceptible to interference from nearby electronic devices. By installing the EMI RFI Filter, users can effectively reduce the amount of interference and ensure that their equipment operates smoothly and reliably.

The AC EMI Filter is also useful in commercial and residential settings where electrical noise can cause problems with audio and video equipment. By filtering out unwanted noise, the filter can improve the clarity and quality of audio and video signals.

In addition, the AC EMI Filter can be used in medical equipment, where interference can be particularly dangerous. By reducing the amount of interference, the filter can help ensure that medical equipment operates safely and accurately.

Overall, weiaipu's AC EMI Filter is a versatile and reliable solution for reducing EMI and RFI in a wide range of applications. Its high voltage rating, multiple termination styles, and ability to operate at a variety of frequencies make it a useful tool for engineers and technicians in various industries.

Customization:

Looking for a reliable Electrical Cabinet Air Filter customized to your specific needs? Consider the weiaipu VIP4-2B-20 EMI EMC Filter. Our high-quality EMI Filter SMD is designed to effectively suppress electromagnetic interference and radio frequency interference, making it ideal for a wide range of applications. Made in Shenzhen, our Surface Mount filter can operate at temperatures ranging from -25℃ to +85℃ and has an input impedance of 50 Ω. With a line to line voltage rating of 1760VDC, this filter is built to deliver superior performance and long-lasting durability. Contact us today to learn more about our customizable EMI Filter solutions!

Packing and Shipping:

Product Packaging:

• AC EMI Filter unit
• User manual

Shipping:

• Product will be shipped within 24 hours of order confirmation
• Free shipping within the United States
• International shipping available at an additional cost
• Product will be shipped in a secure and durable packaging to ensure safe delivery
