| Brand Name: | VIIP |
| Model Number: | V18014FS |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

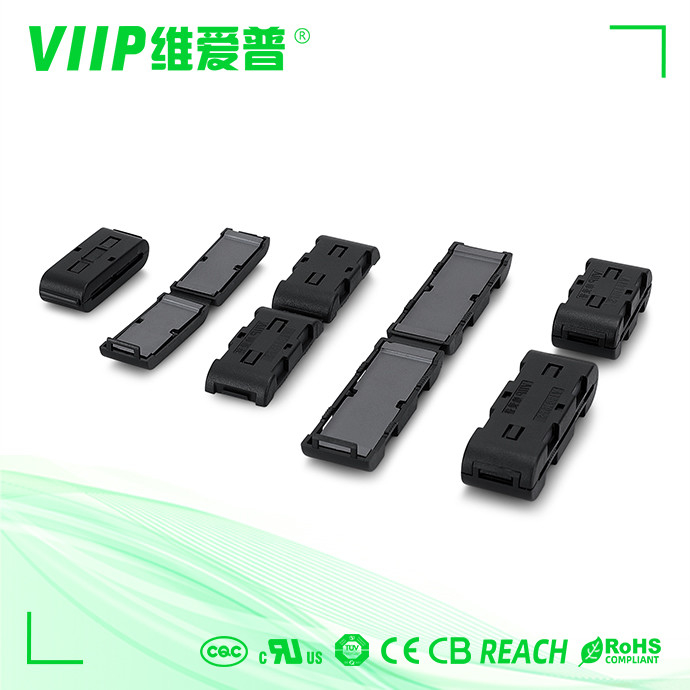

Flat Cable EMI Suppression Nizn Flat Ferrite Core SCFS TYPE Industrial Magnet
Quick Detail:
Description:
RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.
Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.
Nize ferrite ,it can improve the electromagnetic field around the solendoid ,thus avoiding outside interference.
Easy to install and convenient to use .The cylinder can be dismountable ,and the port has the elastic clip fastener.
Specifications:
| No. | Specifications | Dimensions:mm | Impedance(Ω)min | |||||
| ΦA | B | ΦC | D | E | 25MHz | 100MHz | ||
| 1 | V18014FS | 36±1 | 9.4±0.8 | 28±1 | 14.8±1 | 2±0.4 | 45 | 110 |
| 2 | V18015FS | 37.9±1 | 12.5±0.8 | 28±1 | 18±1 | 2±0.4 | 55 | 110 |
| 3 | V18016FS | 54.4±1 | 13±0.8 | 44±1 | 18.4±1 | 2±0.4 | 55 | 125 |
How do we choose the clip on ferrite core
When choosing a clip-on ferrite core for EMI suppression, there are several factors to consider to ensure that the core is effective for the specific application. Here are some key considerations:
Cable Diameter: Select a ferrite core that is compatible with the diameter of the cable or wire it will be installed on. Ferrite cores come in various sizes and internal diameters, so it's important to choose a core that can securely clip onto the cable without being too loose or too tight.
Frequency Range: Determine the frequency range of the electromagnetic interference that needs to be suppressed. Different ferrite materials and core designs are optimized for specific frequency ranges. Choose a ferrite core that is suitable for the frequency range of the EMI that needs to be mitigated.
Material and Impedance: Ferrite cores are available in different materials and with different impedance characteristics. The material and impedance of the ferrite core should be selected based on the type of EMI and the impedance of the cable or circuit. Higher impedance ferrite cores are more effective at suppressing high-frequency EMI.
|
