| Brand Name: | VIIP |
| Model Number: | V180307H |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

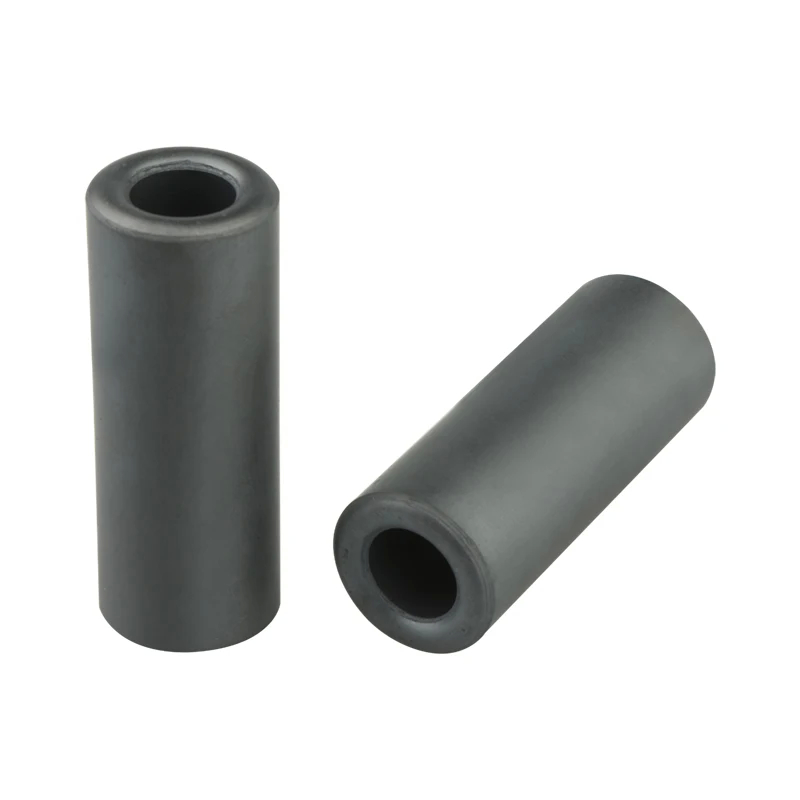

Soft Ferrite Core EMI Ferrite Core Transformer Iron Powder Core
Quick Detail:
Dimension (mm)
| A | 26 ± 0.7mm |
| B | 28土 0.7mm |
| C | 16± 0.6 mm |
Description:
This is a ferrite ring, not a magnet. It has no magnetism.
Iron powder core is generally stored near signals of place.
Electric characteristics
|
目 EST TEM ＋ |
电气性能 ELECTRIC CHARACTERISTICS |
尺寸(单位 :毫米) DIMENSION (unit:皿) |
||||||||||
| Q | L | Zl | Z2 | Z3 | Z4 | A | B | c | D | E | F | |
| 65 | 140 | 26 | 28 | 16 | ||||||||
| 0. 7 | 0. 7 | 0.6 | ||||||||||
| o. 7 | 0. 7 | 0.6 | ||||||||||
| 1 | 91. 0 | 180. 2 | 25. 50 | 27.96 | 16.20 | |||||||
| 2 | 91. 2 | 180. 6 | 25. 57 | 27.87 | 16.16 | |||||||
| 3 | 91. 6 | 180.4 | 25. 64 | 27.93 | 16.10 | |||||||
| 4 | 91. 8 | 180. 2 | 25. 59 | 27.89 | 16.15 | |||||||
| 5 | 91. 4 | 181. 0 | 25. 66 | 28.16 | 16.19 | |||||||
| 6 | 92. 2 | 181. 2 | 25. 68 | 28.03 | 16.17 | |||||||
| 7 | 92. 6 | 181. 6 | 25. 72 | 28.20 | 16.10 | |||||||
| 8 | 92. 4 | 181.4 | 25. 70 | 28.11 | 16.13 | |||||||
| 9 | 92.8 | 180. 2 | 25. 64 | 28.03 | 16.12 | |||||||
| 10 | 91. 6 | 180.8 | 25. 71 | 28.30 | 16.11 | |||||||
| x | 91. 86 | 180. 76 | 25. 64 | 28.04 | 16.14 | |||||||
| Y I N | y | y | y | y | y | |||||||
Specifications:
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
Ferrite Cores: Ferrite cores are known for their high magnetic permeability at low frequencies, making them suitable for applications in the kHz to MHz range. They have relatively low saturation induction and are often used in applications where high-frequency performance is critical, such as inductors and transformers for power supplies and EMI filters.
Nanocrystalline Cores: Nanocrystalline cores exhibit high saturation flux density and low core losses, especially at high frequencies. They are well-suited for applications requiring high efficiency, low losses, and wide frequency operation, such as in power electronics, renewable energy systems, and high-frequency transformers.
|
