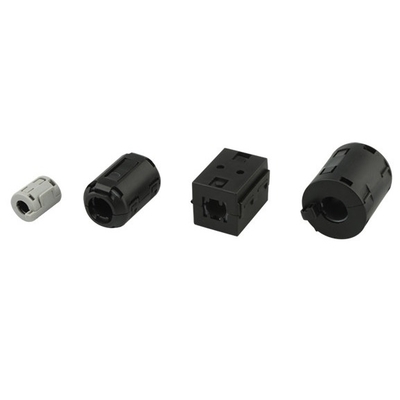

Clip-On Ferrite Ring Core RFI EMI Noise Suppressor Cable ferrite ring core
Quick Detail:
RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.
Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.
Specifications:
| No. | Specifications | Fig | Dimensions:mm | Impedance(Ω)min | |||||
| ΦA | B | ΦC | D | E | 25MHz | 100MHz | |||
| 1 | V18001A | 1 | 13±1 | 11.8±1 | 3.5±0.8 | 25.2±1 | 2.5±1 | 135 | 260 |
| 2 | V18001 | 1 | 13±1 | 12±1 | 5±0.8 | 25.2±1 | 2.5±1 | 90 | 190 |
| 3 | V18002 | 1 | 16.5±1 | 14±1 | 7±0.8 | 30±1 | 2.5±1 | 80 | 195 |
| 4 | V18002C | 5 | 20.7±1 | 39.4±1 | 7.2±0.5 | / | / | 120 | 220 |
| 5 | V18003 | 1 | 19.5±1 | 18±1 | 9±0.8 | 35±1 | 5.5±1 | 100 | 240 |
| 6 | V18004 | 1 | 23.5±1 | 22.2±1 | 13.5±0.8 | 36±1 | 10.5±1 | 90 | 190 |
| 7 | V18005 | 2 | 17.5±1 | 19.5±1 | 6.5±0.8 | 32.5±1 | / | 135 | 330 |
| 8 | V18006 | 2 | 22±1 | 23.5±1 | 10±0.8 | 33±1 | / | 90 | 250 |
| 9 | V18007 | 2 | 29±1 | 30±1 | 13±0.8 | 32.2±1 | / | 160 | 280 |
| 10 | V18008 | 3 | 19.5±1 | 23±1 | 8±0.8 | 17±1 | 23±1 | 70 | 140 |
| 11 | V18009 | 3 | 19.5±1 | 23±1 | 8±0.8 | 19.5±1 | 26±1 | 80 | 160 |
| 12 | V18010 | 4 | 15±1 | 14±1 | 7±1 | 18±1 | 22±1 | 45 | 125 |
| 13 | V18011 | 4 | 19.5±1 | / | 9±1 | 32±1 | 36±1 | 105 | 185 |
| 14 | V18011A | 4 | 20.5±1 | 20.5±1 | 11±0.8 | 32±1 | 36±1 | 80 | 155 |
| 15 | V18011B | 3 | 28±1 | 31±1 | 11.4±0.8 | 17.5±1 | 23.5±1 | 75 | 135 |
| 16 | V18012 | 4 | 30±1 | / | 13±0.8 | 34±1 | 39±1 | 125 | 230 |
| 17 | V18013 | 5 | 16.5±1 | 29.5±1 | 5±0.8 | / | / | 80 | 165 |
| 18 | V18017 | 4 | 40.5±1 | / | 17±1 | 49.8±1 | / | 200 | 350 |
| 19 | V18018 | 3 | 29±1 | 33±1 | 15±0.8 | 15.5±1 | 21.5±1 | 55 | 110 |
| 20 | V18019 | 1 | 19.5±1 | 18±1 | 8±0.8 | 35±1 | 5.5±1 | 120 | 175 |
| 21 | V18020 | 3 | 24±1 | 27±1 | 10±0.8 | 13.5±1 | 19±1 | 60 | 110 |
| 22 | V18021 | 1 | 11.7±1 | 10.8±1 | 4±0.8 | 21.4±1 | 2.6±1 | 90 | 160 |
| 23 | V18031 | 2 | 15±1 | 14±1 | 6±1 | 23±1 | / | 80 | 160 |
| 24 | V18032 | 1 | 19.5±1 | 18.0±1 | 5.0±1 | 35±0.8 | / | 190 | 320 |
| 25 | V18033 | 4 | 19.5±1 | / | 8±0.8 | 32±1 | 36±1 | 120 | 175 |
Applications:
✔ 3.5mm / 0.14in (inner diameter): suitable for 0.06 - 0.14in / 1.5 - 3.5mm cables
Application: Car DVR, Headset Cable, Loudspeaker Cable, Mouse Cable, Keyboard Cable, USB Cable etc.
✔ 5mm / 0.2in (inner diameter): suitable for 0.14 - 0.2in / 3.5 - 5mm cables
Application: Car DVR, Loudspeaker Cable, Mouse Cable, Keyboard Cable, USB Cable, RS232 Serial Port Camera Cable etc.
✔ 7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.
✔ 9mm / 0.35in (inner diameter): suitable for 0.27 - 0.35in / 7 - 9mm cables
Application: HDMI Cable, VGA Cable, DVI Cable, Power Line, Loudspeaker Cable, Industrial Cable etc.
✔ 13mm / 0.51in (inner diameter): suitable for 0.35 - 0.51in / 9 - 13mm cables
Application: HDMI Cable, IP Line of Communication, DVI Cable, Overstriking VGA Cable etc.
What’s nizn Core
NiZn (Nickel-Zinc) cores are a type of magnetic core used in various electronic and electrical applications, particularly in high-frequency transformers, inductors, and other magnetic components. NiZn cores are composed of a nickel-zinc ferrite material, which exhibits specific magnetic properties suitable for applications in the high-frequency range.
Key characteristics of NiZn cores include:
High Permeability: NiZn cores have high initial permeability, making them well-suited for applications that require high inductance and efficient energy transfer at high frequencies.
Low Core Losses: NiZn cores exhibit relatively low core losses at high frequencies, contributing to their efficiency in high-frequency applications.
Frequency Response: NiZn cores are designed to perform well in the high-frequency range, typically in the MHz to GHz frequency bands. They are commonly used in applications such as RF (radio frequency) transformers, filters, and impedance matching circuits.
Saturation Characteristics: NiZn cores have specific saturation characteristics that make them suitable for applications requiring high magnetic flux density at high frequencies.
Material Composition: The composition of NiZn cores involves a mix of nickel oxide and zinc oxide, along with other additives. The specific formulation and processing of the material contribute to its high permeability and other magnetic properties.
|
|
