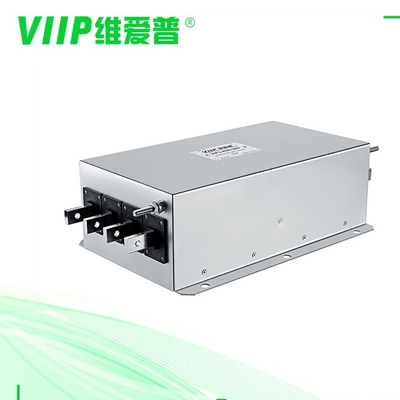

3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter

3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter
3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter
3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter 3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter

Large Image :  3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP3-41A-50
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: usd
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter

Description
Transfer Function: AC 3 Phase Emi Filter Insertion Loss: At 50OHM System
Application: Medical Equipments Temperature Range: 25 / 085 / 21
Type: EMI Filter Rated Voltage: 250V/275/440V/480VAC
High Light:

Stopband Attenuation VIIP Electric Filter

,

3 Phase AC EMI Filter

,

4 Wire AC EMI Filter

3 Phase 4 Wire Ac Emi Filter For Mechanical Equipment Electric Filter

3 Phase 4 Wire AC EMI Filter for 20-100dB Stopband Attenuation VIIP Electric Filter 0



Quick Detail:

  • Model Number:
  • Type:EMI Filter
  • Place of Origin:Shenzhen , China
  • Brand Name: VIIP
  • Transfer Function:Low Pass
  • Nominal Center Frequency:10KHz-30MHz
  • Input Impedance:50Ω
  • Insertion Loss:20~100dB
  • Stopband Attenuation:20~100dB
  • Item:Low Pass EMI Filter
  • Rated Voltage:440V
  • Rated Current:0.5A-800A
  • Environmental Temp:50°C
  • Temperature Range:25 / 085 / 21
  • Operating Frequency:50/60HZ
  • Line to Line:1450VDC
  • Line to Ground:2250VDC or 2000VAC
  • Certificate:cUL TUV ISO9001 CE ROHS

Description:

suitable for three  phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective



Specifications:



Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP3-41A-06 6A <2.0mA Fig 1 Fig 1 M4 400
VIP3-41A-10 10A <2.0mA Fig 1 Fig 1 M4 400
VIP3-41A-20 20A <2.0mA Fig 1 Fig 1 M4 600
VIP3-41A-30 30A <4.5mA Fig 1 Fig 1 M6 600
VIP3-41A-40 40A <4.5mA Fig 2 Fig 1 M6 1000
VIP3-41A-50 50A <4.5mA Fig 2 Fig 1 M6 1500
VIP3-41A-80 80A <8.0mA Fig 2 Fig 1 M8 3100
VIP3-41A-100 100A <8.0mA Fig 2 Fig 1 M8 3100
VIP3-41A-150 150A <8.0mA Fig 2 Fig 1 M10 4000
VIP3-41A-200 200A <20.0mA Fig 2 Fig 1 M10 4000

















Applications:



  Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc



Our Company



We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality



We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.



Free EMC rectification technical support and provide free test sample



Automation technology, scale production, excellent price



Good service, fast delivery!



Cooperate with the top scientific research laboratory



We have a professional R&D team



FAQ:

Q1:How about the certificates?

A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.



Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.



Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.



Q4: How about the payment terms?
A: We usually require T/T in advance. we also accept other payment methods.



Q5: Do you offer customized product ?
A: Yes, we can develop a new mold as your requirement if you can provide us with the samples or drawings and specifications.



Q6: How about the samples?
A: Free samples. You need to pay for freight cost. Please contact us for details.



We Can Provide EMC technical rectification and always can custom product as your requirement to pass the EMC test. Let's talk in details.



What is an electrical power filter



An electrical power filter, also known as an AC power filter, is a device used to clean and stabilize the electrical power supply. It is designed to reduce electromagnetic interference and noise in the power line, ensuring that the connected equipment receives a clean and consistent power signal. This helps to improve the performance and reliability of electronic devices and prevents damage from power surges, spikes, and other electrical disturbances. Power filters are commonly used in audio and video systems, computer equipment, and other sensitive electronics to ensure a stable and high-quality power supply.
