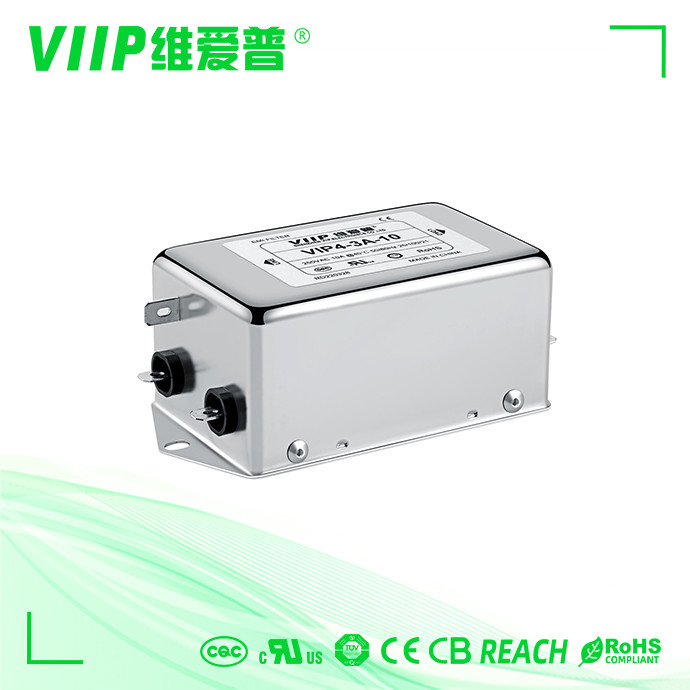

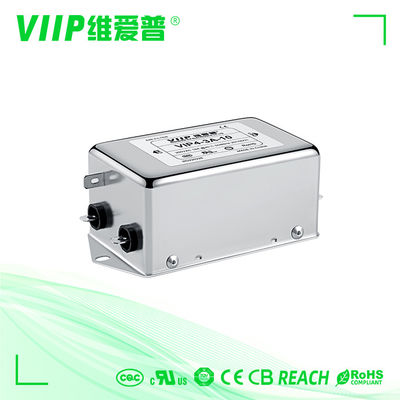

20A 50/60HZ EMC EMI Filter Electrical Power Filter Material For Equipment

Description
Type: EMI EMC Filter Application: Charging Fixture
Certification: CE ROHS,ISO; TUV Line To Line: 1760VDC
Rated Current: 10A Temperature Range: 25 / 085 / 21
High Light:

50/60HZ EMC EMI Filter

,

20A EMC EMI Filter

,

EMC EMI Filter For Equipment

20A 50/60HZ EMC EMI Filter Electrical Power Filter Material For Equipment

20A 50/60HZ EMC EMI Filter Electrical Power Filter Material For Equipment 0

EMC EMI Filter Quick Detail:

Item EMC EMI Filter
Model VIP4-2B-10
Original of country China
Package Type Screw Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 10A
Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2000VDC
Samples available
MOQ 1 PCS
Price Negotiated
Lead Time 3~20 workdays




EMC EMI Filter Features:



1.Our AC filters with  exceptional performance, with greatly improved attenuation of both common and differential mode signals, as well as effective low frequency filtering.
2.We provide many terminal options, giving you the flexibility to choose the best fit for your needs.
3.We offer a wide selection of parts and combinations to meet the unique EMC testing requirements of each customer.
4.Our filters are also available in a 380VAC configuration, ensuring compatibility with a broad range of electrical systems.







EMC EMI Filter Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. dental equipment

5. Charging post / equipments

6. Electric vehicle

7. Energy storage systems

EMC EMI Filter Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-2A-01 1A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-03 3A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-06 6A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-10 10A <1.0mA Fig4 Fig 1 - - - 0 - - - 170
VIP4-2B-06 6A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-10 10A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-20 20A <1.0mA Fig4 Fig 2 M4 0 - - - 321
VIP4-2B -50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 1400
VIP4-2B-100 100A <2.0mA Fig 5 Fig 2 M6 - - - - - - 2000
VIP4-2B-200 200A <2.0mA Fig 5 Fig 2 M8 - - - - - - 3000
VIP4-2C-01 1A <0.5mA Fig 1 Fig 3 M10 - - - 0 65
VIP4-2C-03 3A <0.5mA Fig 2 Fig 3 M10 - - - 0 95
VIP4-2C-06 6A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-10 10A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-20 20A <1.0mA Fig 5 Fig 3 M4 - - - - - - 600
VIP4-2C-50 50A <2.0mA Fig 5 Fig 3 M6 - - - - - - 1600



Electrical schematic:

20A 50/60HZ EMC EMI Filter Electrical Power Filter Material For Equipment 1

Mechanical Dimension(Unit: mm)

20A 50/60HZ EMC EMI Filter Electrical Power Filter Material For Equipment 2


Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,



What are the 4 types of filters

The four main types of filters are:

Low-pass filter: Allows frequencies below a certain cutoff frequency to pass through while attenuating frequencies above the cutoff.

High-pass filter: Allows frequencies above a certain cutoff frequency to pass through while attenuating frequencies below the cutoff.

Band-pass filter: Allows a specific range of frequencies, known as the passband, to pass through while attenuating frequencies outside this range.

Band-stop filter (also known as notch filter): Attenuates a specific range of frequencies, known as the stopband, while allowing frequencies outside this range to pass through.

These filters are commonly used in various electronic systems and signal processing applications to control the frequency content of signals.
