Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation

Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation
Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation

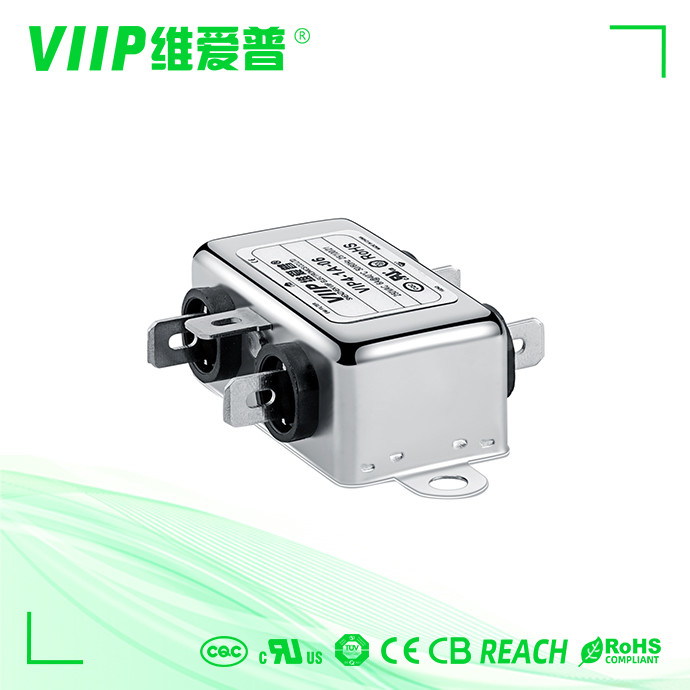

Large Image :  Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-3A-50
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation

Description
Type: EMI EMC Filter Operating Frequency: 50/60HZ
Rated Current: 50A Case: Metal
Application: Single Phase Servo Motor Certification: CE ROHS,ISO TUV
High Light:

Single Phase EMC EMI Filter

,

Common Mode EMC EMI Filter

,

LED Equipment EMC EMI Filter

House Appliance EMC Emi Filter AC Power Line Filter For Fitness Equipment

Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation 0

EMC EMI FILTER  Quick Detail:

Item Power line EMI Filter
Model VIP4-3A-50
port  Shenzhen
Package Type Surface Mount
Nominal Center Frequency 10Khz-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 50A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2000VDC
Samples available
MOQ 1 PCS
Price Negotiated
Lead Time 3~20 days




EMC EMI FILTER Features:

--high performance with common and differential mode attenuation performance

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available





EMC EMI FILTER  Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. inverters and converters

5. Charging post

6.Led equipment

Tabulates for single phase emi filter:


Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-3A-01 1A <1.5mA Fig 1 Fig 1 - - - - - - 0 95
VIP4-3A-03 3A <1.5mA Fig 2 Fig 1 - - - 0 - - - 145
VIP4-3A-06 6A <1.5mA Fig 3 Fig 1 M4 - - - - - - 450
VIP4-3A-10 10A <2.5mA Fig 3 Fig 1 M4 - - - - - - 550
VIP4-3A-20 20A <2.5mA Fig 3 Fig 1 M6 - - - - - - 550
VIP4-3A-50 50A <2.5mA Fig 3 Fig 1 M6 - - - - - - 3300
VIP4-3A-100 100A <4.0mA Fig 3 Fig 1 M8 - - - - - - 3400
VIP4-3A-150 150A <4.0mA Fig 3 Fig 1 M10 - - - - - - 3600



Electrical schematic:

Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation 1

Mechanical Dimension(Unit: mm)

Single Phase EMC EMI Filter for LED Equipment with Common and Differential Mode Attenuation 2



FAQ:



Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter and ther emi/emc ferrite core  etc.



Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.



Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale



Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.



Q: Are OEM and ODM services available?
A: Yes, we can accept OEM or ODM customers only if you meet our MOQ request.





What is EMI suppression filter for AC power lines?



An EMI (Electromagnetic Interference) suppression filter for AC power lines is a device designed to reduce electromagnetic interference and noise in the electrical power supply. It is commonly used to filter out high-frequency noise and harmonics that can disrupt the performance of electronic equipment and sensitive devices. The EMI suppression filter is typically installed in the power line to attenuate unwanted electromagnetic interference, ensuring that the connected equipment receives a clean and stable power signal.



These filters are essential for maintaining the integrity and reliability of electronic devices, especially in environments where electromagnetic interference is prevalent. They help to minimize the impact of external interference and prevent it from affecting the proper functioning of the connected equipment. EMI suppression filters are commonly used in various applications, including industrial machinery, medical equipment, telecommunications systems, and audio/video equipment, to ensure optimal performance and protection against electromagnetic disturbances.
