| Brand Name: | VIIP |
| Model Number: | VIP4-1A-10 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
Technical Specification:
| Item | Power line Filter |
| Model | Power line Filter VIP4 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 0.5~300A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 1.0mA Max |
| MOQ | 5pcs |
| Port | Shenzhen |
| Lead Time | 5~15 working days |

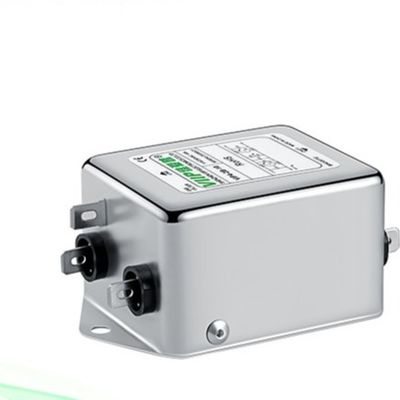

General purpose single phase AC power line filters ,easy to install ,available for
--Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Specifications for single phase emi filters:
General purpose AC filters with good attenuation frequency range 150KHz-30MHz
VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current
Compact structure, high performance-cost ratio, easy to install,safe and reliable
High voltage versions above 380VAC are also available
tabulates
Optional medical versions(H type)
Custom specific versions are available on request
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | SOA | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Sample
Sample Fee: Negotiate
Sample Time: 2~5 days
What is the purpose of a power filter
The purpose of a power filter is to clean and stabilize the electrical power supply. It is designed to reduce electromagnetic interference and noise in the power line, ensuring that the connected equipment receives a clean and consistent power signal. This helps to improve the performance and reliability of electronic devices and prevents damage from power surges, spikes, and other electrical disturbances. Power filters are commonly used in audio and video systems, computer equipment, and other sensitive electronics to ensure a stable and high-quality power supply.
|
|
