Product Details:
|
| Type: | AC Single Filter | Rated Current: | 20A |
|---|---|---|---|
| Rated Voltage: | 110/250VAC | Transfer Function: | Low Pass |
| Application: | USV Equipment | Samples: | On Stock |
| High Light: | 250V Power AC Filter,LC RC Networks Power AC Filter,Household Appliances Power AC Filter |
||
| Item number | VIP4-2B-20 |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 20A |
| Environmental Temperature | 40°C |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| PORT | Shenzhen |
| Lead Time | 5~15 working days |

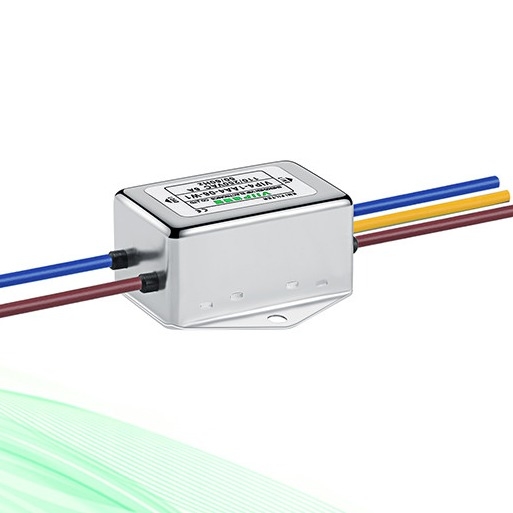

General purpose single phase AC power line filters ,easy to install ,available for
--Conveyors
-- Automated machinery
--Variable frequency drives
--Servo drives
--Medical equipment
--Packaging machinery
-- Printing machines
--Renewable energy
--Power supplies
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Our Company
1. Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4. Scale production:Automation technology, scale production, great price,excellent, service,
What is EMI suppression filter for AC power lines?
An EMI (Electromagnetic Interference) suppression filter for AC power lines is a device designed to reduce electromagnetic interference and noise in the electrical power supply. It is commonly used to filter out high-frequency noise and harmonics that can disrupt the performance of electronic equipment and sensitive devices. The EMI suppression filter is typically installed in the power line to attenuate unwanted electromagnetic interference, ensuring that the connected equipment receives a clean and stable power signal.
These filters are essential for maintaining the integrity and reliability of electronic devices, especially in environments where electromagnetic interference is prevalent. They help to minimize the impact of external interference and prevent it from affecting the proper functioning of the connected equipment. EMI suppression filters are commonly used in various applications, including industrial machinery, medical equipment, telecommunications systems, and audio/video equipment, to ensure optimal performance and protection against electromagnetic disturbances.
