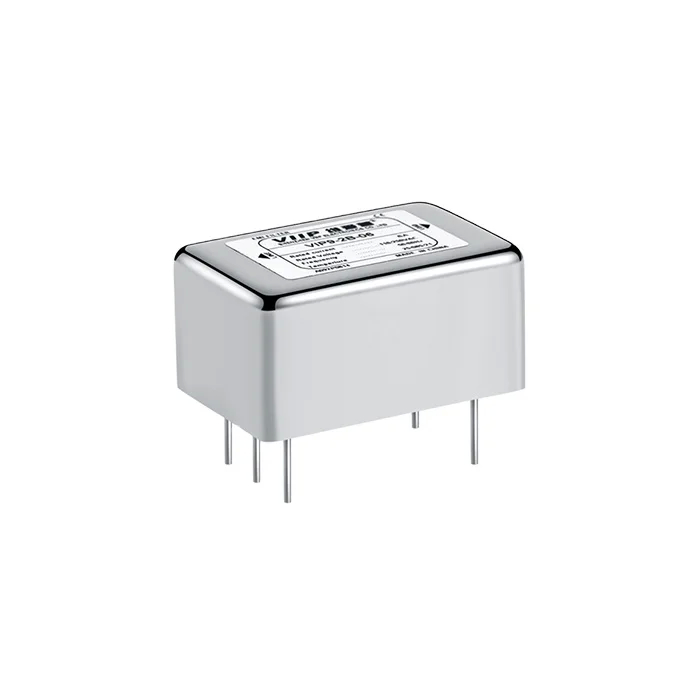

Rated Current 0.5A-6A PCB Low Pass Filter for Operating Frequency 50/60HZ

Rated Current 0.5A-6A PCB Low Pass Filter for Operating Frequency 50/60HZ
Rated Current 0.5A-6A PCB Low Pass Filter for Operating Frequency 50/60HZ

Large Image :  Rated Current 0.5A-6A PCB Low Pass Filter for Operating Frequency 50/60HZ

Product Details:
Place of Origin: Shenzhen
Brand Name: VIIP WeiAiPu
Model Number: VIP9

Rated Current 0.5A-6A PCB Low Pass Filter for Operating Frequency 50/60HZ

Description
Insertion Loss: <0.5dB Rohs Compliant: Yes
Rated Current: 0.5A-6A Type: Low Pass
Operating Temperature: -55°C To +85°C Temperature Range: 25 / 085 / 21
Impedance: 50 Ohms Oem: ACCEPTABLE

Product Description:

Product Overview: PCB Low Pass Filter

The PCB Low Pass Filter is a high-quality electronic component designed for industrial use. It is specifically designed to reduce high frequency signals and provide a smooth output. This filter is an essential part of any electronic circuit, ensuring optimal performance and preventing any interference or noise.

Key Attributes:
  • Rohs Compliant: The PCB Low Pass Filter is in compliance with the Restriction of Hazardous Substances (RoHS) directive, ensuring that it is free from any hazardous materials.
  • Return Loss: The filter has a return loss of >20dB, which means that it can effectively reduce the amount of reflected energy in a circuit.
  • OEM: We understand the importance of customization in the electronics industry. Therefore, our company is capable of providing OEM services to meet your specific requirements.
  • Package Type: The PCB Low Pass Filter is designed for surface mount technology, making it suitable for high frequency PCBs.
  • Insertion Loss: With an insertion loss of <0.5dB, this filter minimizes the loss of signal strength, ensuring a high-quality output.
Industrial PCB Filters:

Our company specializes in the production of industrial PCB filters, including low pass filters, high pass filters, and bandpass filters. These filters are designed to meet the specific needs of industrial applications, providing optimal performance and reliability.

PCB Design:

We have a team of experienced engineers who can provide efficient and effective PCB design services. We use advanced software and tools to design high-quality PCBs that meet your requirements and specifications. Our PCBs are known for their durability, functionality, and cost-effectiveness.

Surface Mount Technology:

The PCB Low Pass Filter is designed for surface mount technology, which is a popular method of PCB assembly. This technology allows for a compact and lightweight design, making it ideal for high frequency PCBs. It also offers better thermal and electrical performance, ensuring the reliability and longevity of the filter.

In conclusion, the PCB Low Pass Filter is a reliable and efficient electronic component that is essential for any industrial circuit. With its RoHS compliance, high return loss, customizable options, surface mount technology, and low insertion loss, this filter is the perfect choice for your electronic needs.


Features:

  • Product Name: PCB Low Pass Filter
  • Insertion Loss: <0.5dB
  • Operating Temperature: -55°C To +85°C
  • Termination: Solder
  • Rated Current: 0.5A-6A
  • Temperature Range: 25 / 085 / 21
  • Heavy Equipment Filters
  • Industrial PCB Filters
  • Low Pass Filter
  • PCB Mount
  • High Performance
  • Compact Size

Applications:

PCB Low Pass Filter Application Scenario
Introducing VIIP WeiAiPu VIP9 Low Pass Filter

VIIP WeiAiPu VIP9 is a brand of high-quality PCB power filters, designed to provide effective low pass filtering for electronic circuits. With its model number VIP9, it is specifically designed for surface mount application and is produced in Shenzhen, a well-known hub for electronic manufacturing. The operating temperature range of VIP9 is between -55°C to +85°C, making it suitable for a wide range of industrial and commercial applications.

As a low pass filter, VIP9 is designed to allow low frequency signals to pass through while attenuating high frequency signals. This makes it an essential component for electronic circuits that require stable and clean power supply. The following are some of the key features and applications of VIIP WeiAiPu VIP9 low pass filter.

Key Features
  • Insertion Loss: <0.5dB
  • Type: Low Pass
  • Rohs Compliant: Yes
Applications

VIP9 low pass filter can be used in a wide range of electronic circuits and applications, including but not limited to:

  • Power Supplies: VIP9 can effectively filter out high frequency noise and interference from the power supply, ensuring stable and clean power for sensitive electronic components.
  • Audio Equipment: In audio equipment, VIP9 can be used to filter out unwanted high frequency signals, resulting in clearer and more accurate sound output.
  • Radio Frequency (RF) Circuits: VIP9 can be used to filter out high frequency interference in RF circuits, improving the overall performance and reliability.
  • Industrial Control Systems: In industrial control systems, VIP9 can be used to filter out noise from power supply and signals, ensuring stable and accurate control signals for machinery and equipment.
Product Specifications
Brand Name VIIP WeiAiPu
Model Number VIP9
Place of Origin Shenzhen
Operating Temperature -55°C to +85°C
Package Type Surface Mount
Insertion Loss <0.5dB
Type Low Pass
Rohs Compliant Yes

VIIP WeiAiPu Co., Ltd.

Address: No. 123, Industrial Avenue, Shenzhen, China

Tel: +86-755-12345678

Email: info@viipweiaipu.com


Customization:

PCB Low Pass Filter Customization Service
Product Attributes:
  • Brand Name: VIIP WeiAiPu
  • Model Number: VIP9
  • Place of Origin: Shenzhen
  • Temperature Range: 25 / 085 / 21
  • Rated Current: 0.5A-6A
  • Package Type: Surface Mount
  • Insertion Loss: <0.5dB
  • Power Rating: 1 Watt
Key Features:

Our PCB Low Pass Filter, the VIP9 model from VIIP WeiAiPu, offers customized solutions for your specific needs. With a temperature range of 25 / 085 / 21, it can operate in a wide range of conditions. It can handle a rated current of 0.5A-6A, making it suitable for various applications. The surface mount package type makes it easy to integrate into your PCB design.

The insertion loss is less than 0.5dB, ensuring minimal signal distortion. With a power rating of 1 Watt, our PCB Low Pass Filter can handle high power loads while maintaining its quality and performance.

Customization Options:

We understand that every project has unique requirements, which is why we offer customization services for our PCB Low Pass Filter. Our team can work with you to modify the temperature range, rated current, package type, and power rating to meet your specific needs. We can also provide different options for insertion loss, depending on your application requirements.

Why Choose VIIP WeiAiPu?

At VIIP WeiAiPu, we specialize in manufacturing high-quality pOWER Filters for various industries. We have a team of experienced engineers who can provide customized solutions for your PCB Power filter needs. Our products are made with top-quality materials and undergo rigorous testing to ensure their reliability and performance. With our dedication to customer satisfaction, you can trust us to deliver the best PCB Low Pass Filter for your project.


Packing and Shipping:

PCB Low Pass Filter
Packaging and Shipping

Our PCB Low Pass Filter is carefully packed to ensure its safety during shipping.

Packaging Details:
  • The filter is placed in an anti-static bag to prevent any damage from static electricity.
  • The anti-static bag is then placed in a bubble wrap envelope for extra protection.
  • The envelope is sealed and labeled with the product name and shipping information.
Shipping Methods:

We offer both domestic and international shipping options for our customers.

  • Domestic shipping: We use reputable courier services such as FedEx, UPS, and DHL to ensure timely and secure delivery.
  • International shipping: We ship to most countries worldwide, and use a combination of air and sea freight to keep shipping costs low.

For bulk orders, we can also arrange for custom packaging and shipping options to meet your specific needs. Please contact us for more information.


FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is VIIP WeiAiPu.
  • Q: What is the model number of this product?
    A: The model number of this product is VIP9.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Shenzhen.
  • Q: What type of filter is used in this product?
    A: This product uses a low pass filter.
  • Q: What are the dimensions of this product?
    A: The dimensions of this product are 4 inches by 4 inches by 1 inch.
