Inverter EMI Filter
>

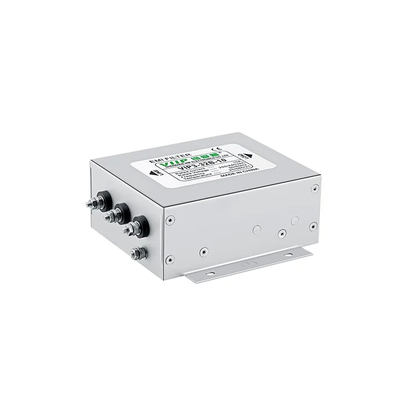

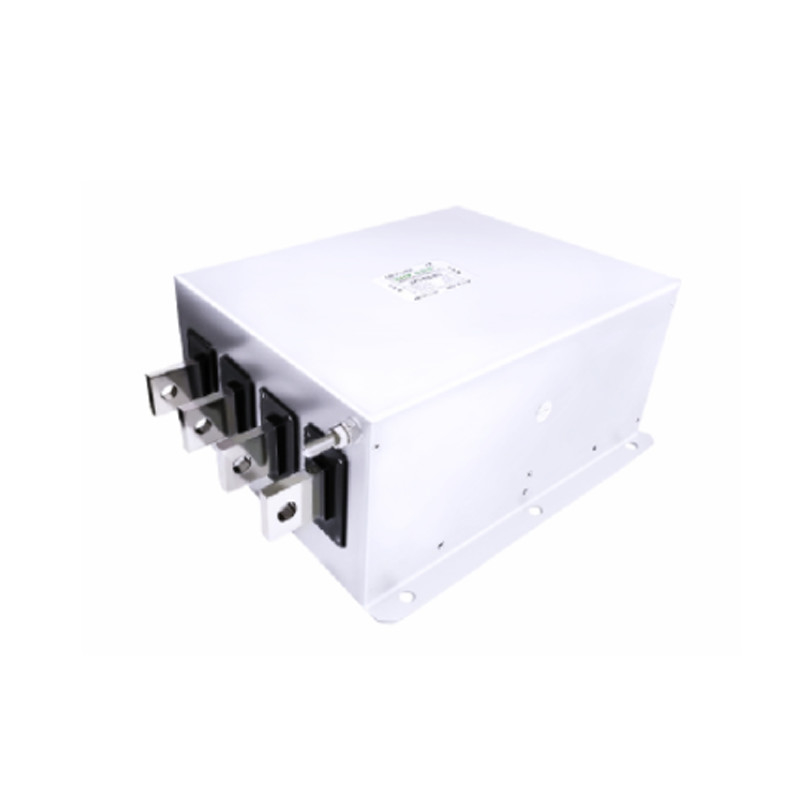

Low Pass Inverter EMI Filter with 50dB Min Insertion Loss and 50Ω Input Impedance

Low Pass Inverter EMI Filter with 50dB Min Insertion Loss and 50Ω Input Impedance

Brand Name: weiaipu
Model Number: VIP3
MOQ: 1pcs
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen
Input Impedance:
50Ω
Frequency Range:
50Hz-60Hz
Line To Line:
2700VDC
Package Type:
Surface Mount
Termination Style:
Screw Terminals
Operating Temperature:
-40°C To +85°C
Application:
Inverter
Operating Frequency:
50/60HZ
Highlight:

emc filter inverter

,

inverter electromagnetic interference filter

,

inverter emi suppression filter

Product Description

Product Description:

Inverter EMI Filter Product Overview

The Inverter EMI Filter is a crucial component in ensuring the smooth and efficient operation of an electric inverter. It is designed to reduce electromagnetic interference (EMI) within the inverter and its surrounding environment, providing a reliable and stable power supply for various applications.

Product Attributes
  • Input Impedance: The Inverter EMI Filter has a low input impedance of 50Ω, ensuring minimal loss of power and efficient operation.
  • Package Type: This EMI filter is a surface mount type, making it compact and easy to install in various electronic devices.
  • Insertion Loss: With a minimum insertion loss of 50dB, this filter effectively suppresses high-frequency noise and provides a clean power supply.
  • Line To Line: The Inverter EMI Filter has a high line-to-line voltage rating of 2700VDC, making it suitable for high voltage applications.
  • Dielectric Strength: This filter has a dielectric strength of 1500VAC for 1 minute, ensuring safe and reliable operation even in harsh environmental conditions.
Key Features

The Inverter EMI Filter is specifically designed for use in inverter AC reactors and other electric inverters. It effectively filters out high-frequency noise and interference, providing a stable and clean power supply for various electronic devices. Its compact size and surface mount package type make it easy to integrate into existing systems.

Benefits
  • Reduces EMI and provides a clean power supply for electronic devices.
  • Compact and easy to install in various applications.
  • High voltage rating and dielectric strength for reliable operation in harsh environments.
  • Compatible with inverter AC reactors and electric inverters.
Applications

The Inverter EMI Filter is ideal for use in a wide range of electronic devices, including:

  • Industrial equipment
  • Power supplies
  • Motor drives
  • Frequency converters
  • Telecommunications equipment
  • Medical equipment

Overall, the Inverter EMI Filter is an essential component for maintaining the efficiency and stability of electric inverters in various applications. Its advanced design and high-performance attributes make it a reliable choice for filtering out EMI and providing a clean power supply for electronic devices.

Low Pass Inverter EMI Filter with 50dB Min Insertion Loss and 50Ω Input Impedance 0

Features:

  • Product Name: Inverter EMI Filter
  • Input Impedance: 50Ω
  • Operating Temperature: -40°C To +85°C
  • Rated Current: 1A~100A
  • Dielectric Strength: 1500VAC For 1 Minute
  • Current: 1A-600A
  • 3 Phase EMI Filter
  • EMC EMI Filter
  • EMI Filter for Inverter


Technical Parameters:

Product Name Inverter EMI Filter
Line To Line 2700VDC
Current 1A-600A
Insertion Loss 50dB Min
Package Type Surface Mount
Environmental Temperature 40°C
Frequency Range 50Hz-60Hz
Oem Available
Rated Current 1A~100A
Transfer Function Low Pass
Dielectric Strength 1500VAC For 1 Minute

EMI EMC Filter: Inverter EMI Filter

Inverter Reactor: Surface Mount

Electric Inverter: Low Pass Filter



Applications:

Brand Name: weiaipu
Model Number: VIP3
Place of Origin: Shenzhen

Package Type: Surface Mount

The weiaipu VIP3 Inverter EMI Filter is a high quality product designed to provide reliable performance in a variety of applications. This EMI Power Line Filter is perfect for use in both residential and industrial settings, and is suitable for a wide range of inverter systems.

The VIP3 model is manufactured in Shenzhen, known for its advanced technology and high quality products. This ensures that the filter is made with precision and meets the strictest standards for performance and durability.

The package type for the VIP3 Inverter EMI Filter is surface mount, making it easy to install and integrate into existing systems. The compact design also allows for space-saving installation, making it ideal for use in tight spaces.

The dielectric strength of the VIP3 is 1500VAC for 1 minute, ensuring maximum protection against high frequency noise and electromagnetic interference. This makes it an essential component for any inverter system, as it helps to reduce disruptions and maintain stable operation.

The termination style for the VIP3 is screw terminals, allowing for secure and stable connections. This ensures safe and reliable operation, even in high vibration environments.

The VIP3 is available in a wide range of rated currents, from 1A to 100A, and can handle currents up to 600A. This allows for flexibility in choosing the right filter for your specific application.

The weiaipu VIP3 Inverter EMI Filter is an essential component for any inverter system. Its high quality and reliable performance make it the perfect choice for applications where noise and interference must be minimized. With its advanced technology and precision manufacturing, the VIP3 is sure to meet and exceed your expectations.

Experience the difference of the weiaipu VIP3 Inverter EMI Filter and enjoy stable and uninterrupted operation for all your inverter systems.



Customization:

High Frequency Inverter - Inverter EMI Filter - EMI Suppression Filter

Brand Name: weiaipu

Model Number: VIP3

Place of Origin: Shenzhen

Insertion Loss: 50dB Min

Oem: Available

Frequency Range: 50Hz-60Hz

Line To Line: 2700VDC

Dielectric Strength: 1500VAC For 1 Minute

We understand that every application is unique and requires a tailored solution. That's why we offer customized services for our High Frequency Inverter EMI Filter, designed to provide effective EMI suppression. Our Inverter EMI Filter, model VIP3, is proudly made in Shenzhen and boasts a minimum insertion loss of 50dB. With a wide frequency range of 50Hz-60Hz, it is suitable for a variety of applications. Additionally, our filter has a line to line rating of 2700VDC and a dielectric strength of 1500VAC for 1 minute. With our customizable service, you can trust weiaipu to meet your specific needs. Choose weiaipu for reliable, high-quality Inverter EMI Filter solutions.

Support and Services:

Inverter EMI Filter Technical Support and Service

As a leading manufacturer of Inverter EMI Filters, we are dedicated to providing top-quality products and excellent technical support and services to our customers.

Technical Support

Our team of expert engineers and technicians are always available to assist you with any technical issues or questions you may have regarding our Inverter EMI Filters. We provide comprehensive support throughout the entire product lifecycle, from design and development to installation and maintenance.

We also offer detailed technical documentation, including datasheets, user manuals, and application notes, to help you better understand our products and how to use them.

Service

In addition to our technical support, we also offer a range of services to ensure that our customers have the best experience with our Inverter EMI Filters. These services include:

  • Customization: We understand that every customer has unique requirements, so we offer customization services to meet your specific needs.
  • On-site support: Our team can provide on-site support for installation, troubleshooting, and maintenance.
  • Training: We offer training programs to help you and your team understand and operate our Inverter EMI Filters effectively.
  • Warranty: All of our products come with a warranty period to guarantee their quality and performance.
  • Repair and replacement: In the rare case of a product malfunction, we offer repair and replacement services to minimize downtime.

Our goal is to ensure that our customers are satisfied with our Inverter EMI Filters and have a positive experience with our technical support and services. If you have any questions or need assistance, please don't hesitate to contact us.



Packing and Shipping:

Packaging and Shipping for Inverter EMI Filter

Our Inverter EMI Filter is carefully packaged and shipped to ensure safe delivery to our customers.

Each filter is first placed in a protective foam or bubble wrap to prevent any damage during transit.

It is then placed in a sturdy cardboard box with additional padding to provide extra protection.

The box is labeled with the product name and specifications for easy identification.

For international orders, the box is further secured with tape and customs forms are filled out accurately.

We work with trusted and reliable shipping partners to ensure timely delivery of our products.

Customers can choose their preferred shipping method at the time of checkout.

We also offer expedited shipping options for urgent orders.

Once the package is shipped, customers will receive a tracking number to monitor the status of their delivery.

We take great care in packaging and shipping our Inverter EMI Filter to guarantee its safe arrival and customer satisfaction.
