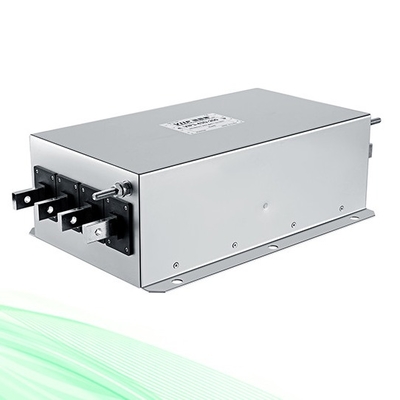

Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery

Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery
Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery
Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery

Large Image :  Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP3-41A-30
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: usd
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Ultra Low Leakage 3 Phase EMI Noise Filter 440Vac For Packaging Machinery

Description
Transfer Function: AC 3 Phase Emi Filter Insertion Loss: At 50OHM System
Application: AV Equipment Temperature Range: 25 / 085 / 21
Type: Single Stage Rated Voltage: 250V/275/440V/480VAC
Ambient Temperature: -25℃~+85℃ Dimensions: 50mm X 50mm X 20mm
Environmental Temperature: 40°C Humidity: 85%RH
Impedance: 50 Ω Insulation Resistance: 100MΩ Min. At 500VDC
Leak Current: 450-600uA Mounting Type: Through Hole
Nominal Center Frequency: 50/60Hz,10KHZ~30MHZ,50/60Hz(MHz) Operating Temperature: 0°C - 40°C
Package Type: Surface Mount Warranty: 90 Days
Weight: 1400g
High Light:

emi rfi ac power line filters

,

emi filter for ac power supply

,

ac line rfi filter

3 Phase AC Emi Filter 440V Low Leakage Current for package machine



Description:
This is a 3 phase high performance EMI noise filter designed for packaging equipment operating at 440Vac. It features ultra-low leakage current to ensure the safety of operators.



Features:
•3 phase 440Vac EMI noise filter
•High attenuation over a wide frequency range of 1MHz to 10GHz
•Ultra-low leakage current <0.5mA for maximum safety
•High rated current up to 100A per phase
•Compact size for space-saving
•Aluminum casing with mounting holes for easy installationApplications:
•Packaging machinery: carton former, wrapping machine, filling machine, sealing machine, labeling machine, etc.
•Prevent electromagnetic interferences generated from VFDs, power electronics, and motor wires
•Provide a clean power source for sensitive control electronics
•Improve the stability and precision of packaging equipmentThis high performance EMI filter is ideal for packaging industry to suppress power line    noises generated from variable frequency drives and other power electronics. Its 3 phase design and high power handling capability meet the requirement of most large machinery. The ultra-low leakage current effectively reduces safety hazards for operators.Small in size but powerful in performance, this EMI noise filter is a perfect solution for OEM packaging machine manufacturers and users to improve their equipment performance and meet the EMC compliance standards. Please feel free to contact us for more details.



Description:





Specifications:



Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
VIP3-41A-06 6A <2.0mA Fig 1 Fig 1 M4 400
VIP3-41A-10 10A <2.0mA Fig 1 Fig 1 M4 400
VIP3-41A-20 20A <2.0mA Fig 1 Fig 1 M4 600
VIP3-41A-30 30A <4.5mA Fig 1 Fig 1 M6 600
VIP3-41A-40 40A <4.5mA Fig 2 Fig 1 M6 1000
VIP3-41A-50 50A <4.5mA Fig 2 Fig 1 M6 1500
VIP3-41A-80 80A <8.0mA Fig 2 Fig 1 M8 3100
VIP3-41A-100 100A <8.0mA Fig 2 Fig 1 M8 3100
VIP3-41A-150 150A <8.0mA Fig 2 Fig 1 M10 4000
VIP3-41A-200 200A <20.0mA Fig 2 Fig 1 M10 4000

















Applications:



1. Single-phase power supplies, switch-mode power supplies

2. Small to medium-sized machines and household equipment

3. Portable electrical and electronic equipment

4. Test and measurement equipment

5. Safety tester

6. Automated optical inspection (AOI)

7. SMPS
